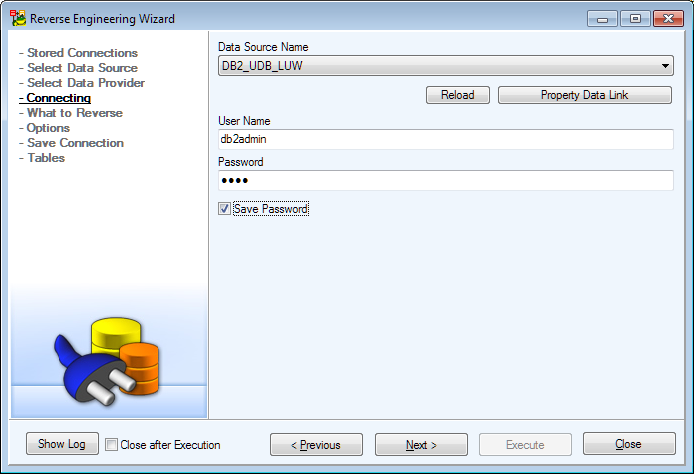

Reverse Engineering

Available Data Providers are:

  • Native Connection
  • Connection via ADO
  • Connection via ODBC

Native Connection:

Connection via ADO:

Connection via ODBC:

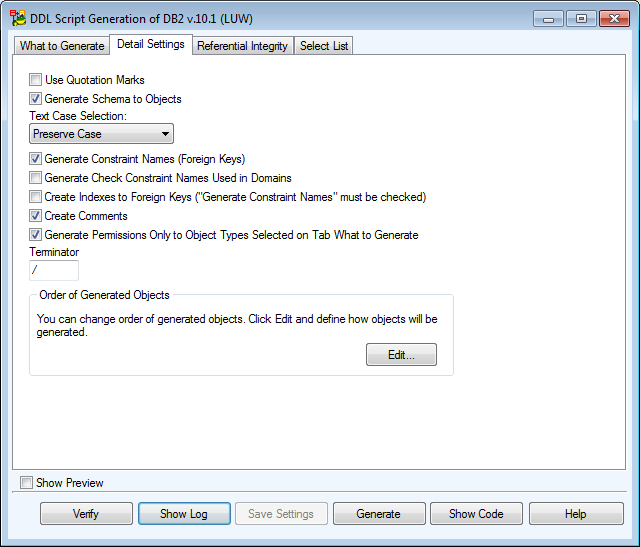

Script Generation

IBM DB2 LUW 10.5

Entity



Organize by Row Using Insert Time, Organize by Row Using Dimensionsand Organize by Column options added.

Example:

CREATE TABLE p_tab4 (a varchar(20), b char(10), c integer) organize by dimensions (b,c)

CREATE TABLE p_tab11 (a varchar(20), b char(10), c integer) organize by insert time



CREATE TABLE p_tab5 (a varchar(20), b char(10), c integer) organize by row

CREATE TABLE p_tab6 (a varchar(20), b char(10), c integer) organize by row using DIMENSIONS (b)

CREATE TABLE p_tab7 (a varchar(20), b char(10), c integer) organize by row using insert time



CREATE TABLE STAFF (

ID SMALLINT NOT NULL,

NAME VARCHAR(9),

DEPT SMALLINT)

ORGANIZE BY COLUMN;

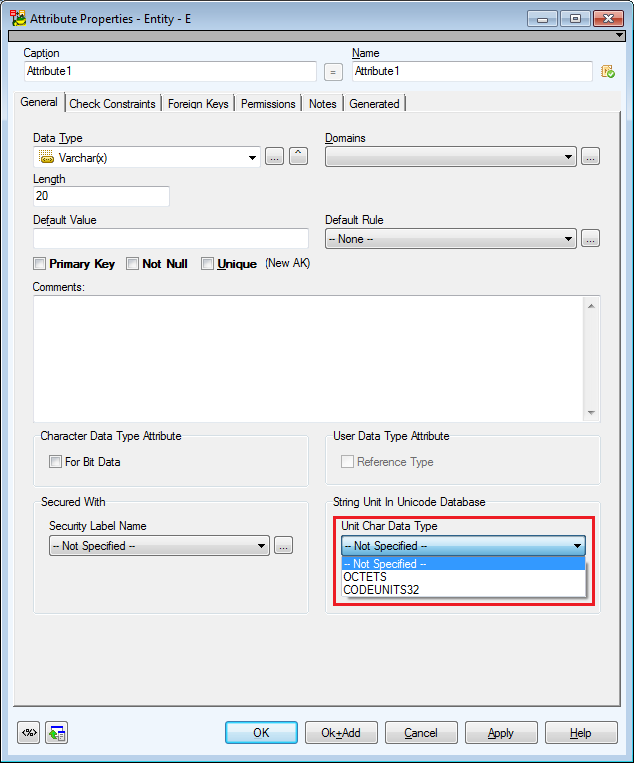

  • New option to set parameters OCTETS/CODEUNITS16/CODEUNITS32 for the following Data Types:
    • CHAR, VARCHAR, CLOB allow OCTETS/CODEUNITS32
    • GRAPHIC, VARGRAPHIC, DBCLOB allow CODEUNITS16/CODEUNITS32

    Note: The attribute length must be always set!

    Example:

    CREATE TABLE A_TEST

    (

    a integer,

    b char,

    c char(21),

    d graphic,

    e graphic(12),

    f graphic (12 CODEUNITS16),

    g char(1 BYTE),

    h char (20 OCTETS)

    )

    Index

    • INDEX INCLUDE NULL KEYS / EXCLUDE NULL KEYS



      Example:

      CREATE TABLE P_TAB20 (A char, B char, C char)



      CREATE INDEX ix0 ON P_TAB20 (C) EXCLUDE NULL KEYS

      CREATE INDEX ix11 ON P_TAB20 (C) INCLUDE NULL KEYS
    • XML Index Specifications allows parameter OCTETS/CODEUNITS32



      Example:

      CREATE TABLE TEST_C (A INTEGER, B XML)



      CREATE UNIQUE INDEX MYIDX2 ON TEST_C(B)

      GENERATE KEY USING XMLPATTERN '/book/title'

      AS SQL VARCHAR(20 OCTETS)

    Type

    • New option to set parameters of data types
      • CHAR, VARCHAR, CLOB allow OCTETS/CODEUNITS32
      • GRAPHIC, VARGRAPHIC, DBCLOB allow CODEUNITS16/CODEUNITS32

      Example:

      CREATE TYPE dict3 AS Char(20 OCTETS) WITH COMPARISONS

      CREATE TYPE dict5 AS GRAPHIC(20 CODEUNITS16)



      CREATE TYPE arr7 AS GRAPHIC(1 CODEUNITS16) ARRAY[VARCHAR(8 OCTETS)]

    • Reverse Engineering

    Available Data Providers are:

    • Native Connection
    • Connection via ADO
    • Connection via ODBC

    Native Connection:

    Connection via ADO:

    Connection via ODBC:
