Create Classes

Click Class  on the toolbar and then anywhere in the work area.



To add multiple classes on the Workspace

  1. Press SHIFT and click the Class icon. A blue frame displays in the icon.
  2. Click the work area as many times as many classes you want to add.
  3. Right-click the work area (or click the Class icon again) to turn this function off.


To see all classes of your model

Select Model | Model Items |Classes. In the Classes dialog, you can add, edit classes, edit their names (F2) and delete them.

Edit Classes

Double-click the class graphics on the Workspace
or
Edit the class in the Classes dialog (Model menu | Model Items | Classes | Edit).

General Tab

Description

Name

Defined object class. Its value consists of CSAOClassName + Abbreviation.

Example:

PERSequenceOR

PER = Physical Entity Relationship model

Sequence = Sequence

OR = Oracle (all Oracle databases. OR10 stands for Oracle 10g, OR9 is for Oracle 9i etc.)

Object Type

Numeric representation of object class without dependence on database system. A list of Object types is available in the TDM Reference document.

External

This checkbox has just an informative value. External class represents a class created in metamodel.

Default Name

Default name that will be assigned to the object after its creation. If you add "%d" to the default name, a numeric value will be added to the end of the default name.

Category

Category selection box. To see a list of Categories of your model, click the small button on the right.

Properties Tab

List of class properties.

Methods Tab

List of methods that belong to the class.

Inherited Properties Tab

Properties defined in predecessors.

Inherited Methods Tab

Methods defined in predecessors.

Description Tab You can enter the class description here.

Notes Tab

Write notes on this tab.

To Do Tab

You can enter To Do tasks related to the class here.

Properties

Toad Data Modeler implements the concept of metamodels. Metamodels are accessible only in Expert Mode (via Package Explorer).

Metamodel is a graphical representation of objects, classes, methods and relationships between them in a specific Package.

Using metamodels, you can create your own classes, methods and properties and define relationships between those items and items that are created in the application by default.

Important: It is recommended to only use lower and uppercase letters for naming your objects in metamodels (no numbers and special characters).



Example: The metamodel of Oracle package



Open Metamodels

  1. Open (or select Expert Mode Menu | Customization | Package Explorer).
  2. Select a package.
  3. Right-click the package and select Open Metamodel.

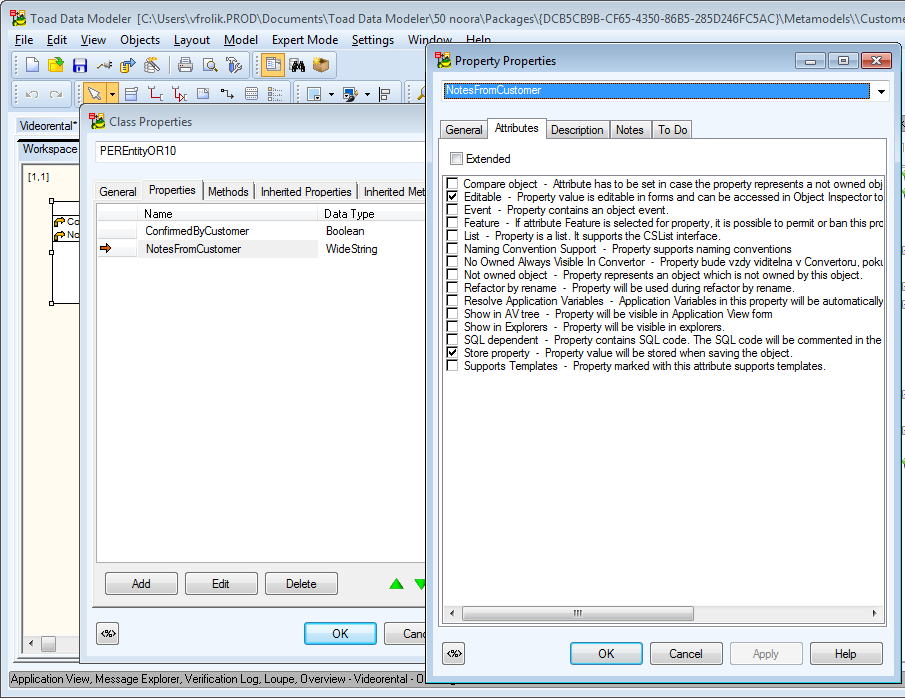

Create Properties

  1. In the Class Properties form, click the Properties tab.
  2. Click Add.
  3. Confirm Apply.
  4. Edit the new item and define properties of the new property.
