Reverse Engineering

See Reverse Engineering - DB2 z/OS v. 9 for more information.

Script Generation

Greenplum 4.1

Greenplum database is based on PosgtreSQL 8.2, which defines basic features and structure.

Supported features - SQL/DDL script generation, reverse engineering, HTML/RTF/PDF reports, change scripting, verification.

Permissions can be set for entities, views and functions.

Entity

General tab

Storage Parameters tab

Table Partitions tab

Define partitions/subpartitions textually.

During reverse engineering, sub-tables of partitioned tables are filtered (the tables created because of partitioned tables). The behavior can be influenced in reverse engineering options, in checkbox Load Sub-Tables of Partitioned Tables.

Attribute

Array Type - Select the Is Array Type checkbox to enable the Array Dimension box.

Dictionary Type/Domain

Array Type - Select the Is Array Type checkbox to enable the Array Dimension box.

Function

If C is selected in Language combo box, C Language Parameters tab appears.

If internal is selected in Language combo box, Internal Language Parameters tab appears.

Foreign Key (Referential Integrity)

NO FUNCTIONALITY - Foreign key constraints are not supported in Greenplum database. They can be created but are not enforced.

Trigger

Triggers can be created but the functionality is considerably limited.

Other supported objects:

  • Aggregate
  • Sequences
  • Rewrite Rules
  • External Tables

Objects not supported in Toad Data Modeler:

  • Resource Queue
  • (Trusted) Protocol
  • Filespace

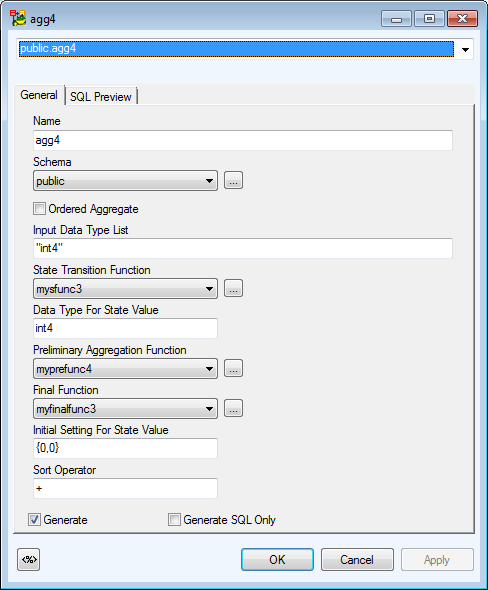

Aggregate

Aggregate Function dialog

Sequence

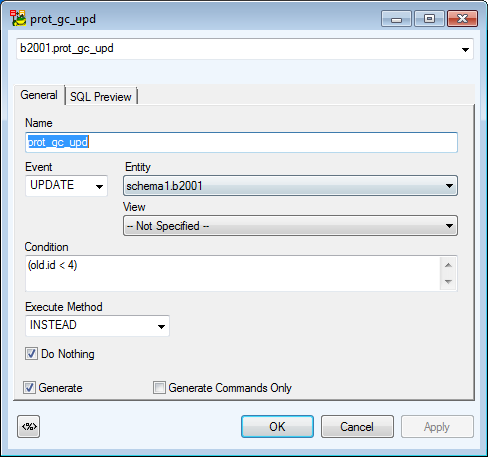

Rewrite Rules

External Tables

Object specifics for Greenplum db not present in PosgtreSQL 8.2.

  • Set External Table to be Readable/Writable

Writable External Table - enables the Distribution Policy tab

  • Set External Table to be Web or Regular type External Table

Web External Table - set Execute OS Command, Segment Instances, Parameter of Segment Instances

  • Error Table Name - allows full table name, e.g. "schema1"."tablename"

Reverse Engineering

Available Data Providers are:

  • Native Connection

Native Connection:
