Materialized Views

Toad Data Modeler allows you to design Entity Relationship Diagrams of specific database platforms, convert physical model from one database platform to another, create an ER Diagram directly from your database (Reverse Engineering feature), update physical models, generate DDL/SQL scripts and Change Scripts, create Dictionary Types, Views, Triggers, Functions, generate detailed documentation to your model (in HTML, RTF, PDF, XSLT formats) and much more.

This chapter describes features and functions related to Physical Data Modeling. Look around each section to get the information you need.

Note: See the sample physical model Videorental (Oracle 10g db) that is included in the installation package of Toad Data Modeler. Default location is: C:\Program Files (x86)\Quest Software\Toad Data Modeler7.3\Samples.

Benefits of Physical Data Model

  • Detailed definition of database structure, including database specific items, for example:
    • Stored procedures
    • Functions
    • Triggers
    • Views
    • Materialized views
    • Sequences (auto increments) etc.
  • Possibility to synchronize local model with existing database.
  • Possibility to specify logical names for objects (captions for tables, attributes and other objects).
  • Detailed database specific information can be exported to HTML/RTF/PDF or XML/XHTML/CSV reports.
  • Automatic generation of SQL code for selected objects (SQL code generation is not available in Logical and Universal Model)
  • Automatic migration of PK attributes to child entities (Attributes don't migrate to child entities in Logical Model)

Materialized Views

Materialized Views are supported in the following databases: Oracle, DB 2, DB2 zOS, , Sybase SQL Anywhere 11, Teradata 13.

Toad Data Modeler allows you to display materialized views graphically in your ER diagram.

To add a materialized view

Click    on the toolbar and then click anywhere on the work area.

or

Model Explorer | Right-click the Materialized Views folder | Add Materialized View.



To edit a materialized view

Double-click the materialized view on the Workspace.

or

Edit the materialized view in Model Explorer | Materialized Views folder | double-click the selected materialized view (or right-click | Edit).

Option Description

Object Navigator Box

All materialized views of your model are listed here. The combo-box allows you to edit them, one by one from one place. Use Apply to confirm all the changes you make.

General Tab

 Description

Caption

Logical materialized view name

Name

Physical materialized view name

Schema

Schema selection box

Categories

Category selection box

Generate

Select it to generate the materialized view in final SQL (DDL) script.

Generate SQL only

Select it to generate only the SQL code written on tab SQL. The rest of items will be ignored.

SQL Tab

Write SQL code of materialized view subquery on this tab.

About Templates

Permissions Tab

Here you can assign Users or User Groups permissions to the materialized view.

To Do Tab

On this tab, you can write some tasks on the selected materialized view.

Note: To see all To Do tasks, select Model | To Do.

Before Script Tab

Whatever you write here, it will be generated before the materialized view definition.

After Script Tab

Whatever you write here, it will be generated after the materialized view definition.

Notes Tab

Tab for notes on particular materialized view. The text written here will display in a pop up dialog when you point your mouse cursor at the materialized view shortcut in your ER diagram.

SQL Preview Tab

Click at the bottom of this tab to see the part of SQL code for the materialized view.

Refresh Tab

Use this tab to specify the default methods, modes and times for the database to refresh the materialized view.

Physical Properties Tab

Define storage characteristics of materialized view on this tab.

Materialized Views Properties Tab

Define other materialized view characteristics on this tab.

Create Index Tab

Create index sentences are written on this tab.



Procedures

Toad Data Modeler allows you to design Entity Relationship Diagrams of specific database platforms, convert physical model from one database platform to another, create an ER Diagram directly from your database (Reverse Engineering feature), update physical models, generate DDL/SQL scripts and Change Scripts, create Dictionary Types, Views, Triggers, Functions, generate detailed documentation to your model (in HTML, RTF, PDF, XSLT formats) and much more.

This chapter describes features and functions related to Physical Data Modeling. Look around each section to get the information you need.

Note: See the sample physical model Videorental (Oracle 10g db) that is included in the installation package of Toad Data Modeler. Default location is: C:\Program Files (x86)\Quest Software\Toad Data Modeler7.3\Samples.

Benefits of Physical Data Model

  • Detailed definition of database structure, including database specific items, for example:
    • Stored procedures
    • Functions
    • Triggers
    • Views
    • Materialized views
    • Sequences (auto increments) etc.
  • Possibility to synchronize local model with existing database.
  • Possibility to specify logical names for objects (captions for tables, attributes and other objects).
  • Detailed database specific information can be exported to HTML/RTF/PDF or XML/XHTML/CSV reports.
  • Automatic generation of SQL code for selected objects (SQL code generation is not available in Logical and Universal Model)
  • Automatic migration of PK attributes to child entities (Attributes don't migrate to child entities in Logical Model)

Procedures

To add a procedure

Right-click the Procedures item in Model Explorer | Add Procedure.

To edit a procedure

Double-click the selected procedure in Model Explorer | Procedures (or right-click Edit).

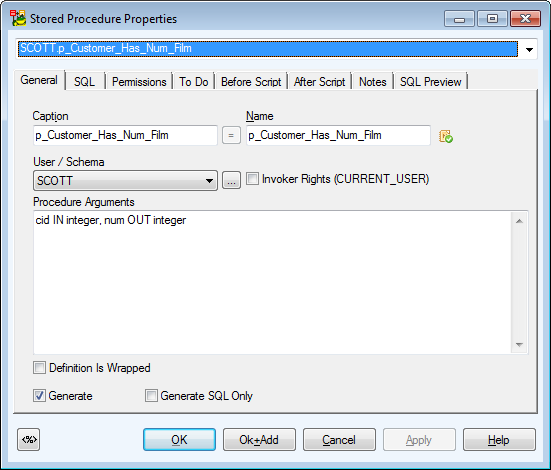

Example: The Procedure Properties dialog (Oracle 10g)

General Tab

Description

Caption

Logical procedure name

Name

Physical procedure name

Schema

Schema selection box

Procedure Arguments

Define procedure arguments here.

Invoker Rights

Database dependent option. See particular database reference for more information.

Definition is Wrapped

Database dependent option. See particular database reference for more information.

Generate

Select it to generate the procedure in final SQL (DDL) script.

Generate SQL only

Select it to generate only the SQL code written on tab SQL. The rest of items will be ignored.

SQL Tab

SQL code. (See the example in the following screenshot.)

About Templates

Permissions Tab

On this tab, you can manage permissions to particular procedure.

To Do Tab

Here you can write some tasks on the selected procedure.

Note: To see all To Do tasks, select Model | To Do.

Before Script Tab

Whatever you write here, it will be generated before the Store Procedure definition.

After Script Tab

Whatever you write here, it will be generated after the Store Procedure definition.

Notes Tab

Tab for notes on particular procedure.



Example: The Procedure Properties dialog | SQL tab (Oracle 10g)



Compare Procedures in Sync & Convert Wizard

When the Sync & Convert Wizard shows differences between procedures (on page Select Items), you can double-click the SQL item of procedures to display details about differences between them.
