Notation and Cardinality

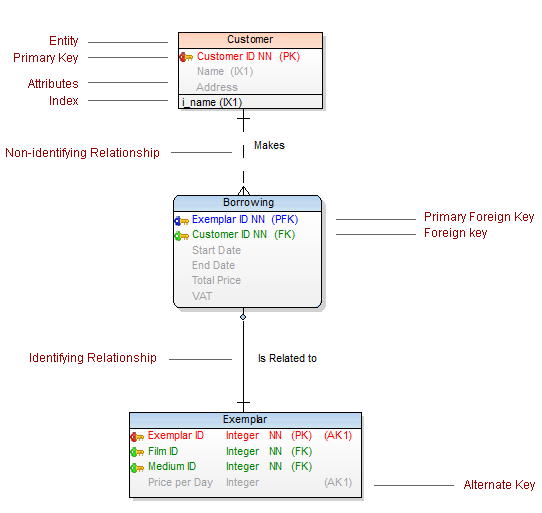

IE Notation



Cardinality

One-to-many relationship is represented by this symbol:

One-to-one relationship is represented by this symbol:



Parent: mandatory Child: mandatory

Parent: mandatory Child: optional

Parent: optional Child: mandatory

Parent: optional Child: optional

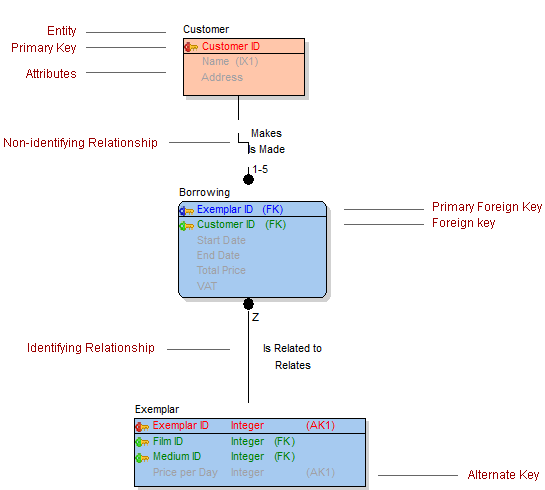

IDF1X Notation



Cardinality

,  ,   zero, one or more

one or more

zero or one



Parent: mandatory Child: mandatory

Parent: mandatory Child: optional

Parent: optional Child: mandatory

Parent: optional Child: optional

See Synchronization of Not Null and Mandatory Parent for more information.

Relationship Types

Identifying Relationship

Non-identifying Relationship

Non-identifying Self-relationship

M:N Relationship

Mandatory/Optional Parent/Child

To set Parent/Child entity as Mandatory/Optional

  1. Double-click a relationship on workspace to open Relationship Properties.
  2. Switch to the General tab and check/uncheck Mandatory Parent/Child checkbox in the Cardinality section.

Parent: Mandatory

Child: Mandatory

A teacher MUST teach a lecture (the record related to lecture is mandatory), a lecture MUST be taught by a teacher (the record related to teacher is also mandatory. Teacher is Mandatory.)

Parent: Mandatory

Child: Optional

A teacher MAY teach a lecture (the record related to lecture is Optional), a lecture MUST be taught by a teacher (Teacher is Mandatory.)

Parent: Optional

Child: Mandatory

A teacher MUST teach a lecture (lecture is Mandatory), a lecture MAY be taught by a teacher (teacher is Optional).

Parent: Optional

Child: Optional

A teacher MAY teach a lecture (lecture is Optional), a lecture MAY be taught by a teacher (teacher is Optional).

The information can be found on Relationship Properties form, see graphical representation at bottom of the form.

Set up Referential Integrity Rules

To set up referential integrity rules for Parent entities

Open the Relationship Properties form and see the Referential Integrity group box.

Here, you can change the None rule to:

  • Restrict
  • Cascade
  • Set Null
  • Set Default

The default rule can be re-configured.

Note: Some databases do not support Referential Integrity (RI) rules.

Connect Parent and Child Entities

Toad Data Modeler allows you to connect Parent and Child entities through the following unique values:

  • Key (Primary or Alternate Key) of parent entity
  • Unique Index of parent entity

To change the linking method

  1. Open the Relationship Properties form and see the Relationship Type group box.
  2. From the Parent Key box, select the method. If neither Unique item, nor Alternate Key exists, only the Primary key is available.

Note: Some databases do not support Alternate Keys.
