Reverse Engineering

See Reverse Engineering - DB2 z/OS v. 9 for more information.

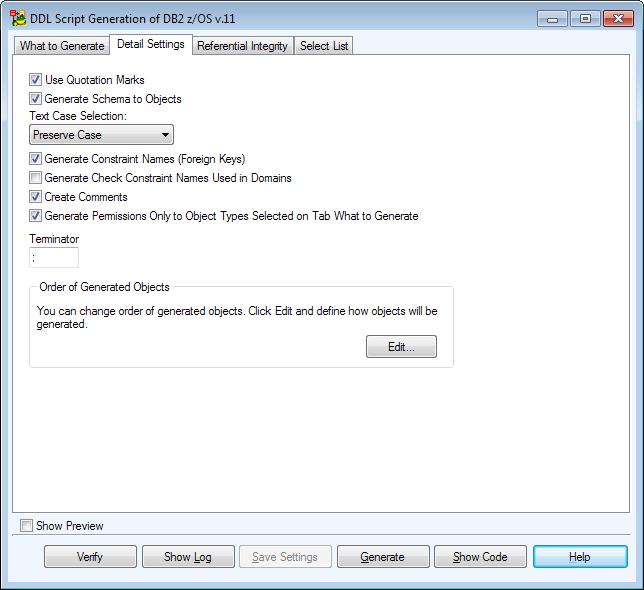

Script Generation

Greenplum 4.1

Greenplum database is based on PosgtreSQL 8.2, which defines basic features and structure.

Supported features - SQL/DDL script generation, reverse engineering, HTML/RTF/PDF reports, change scripting, verification.

Permissions can be set for entities, views and functions.

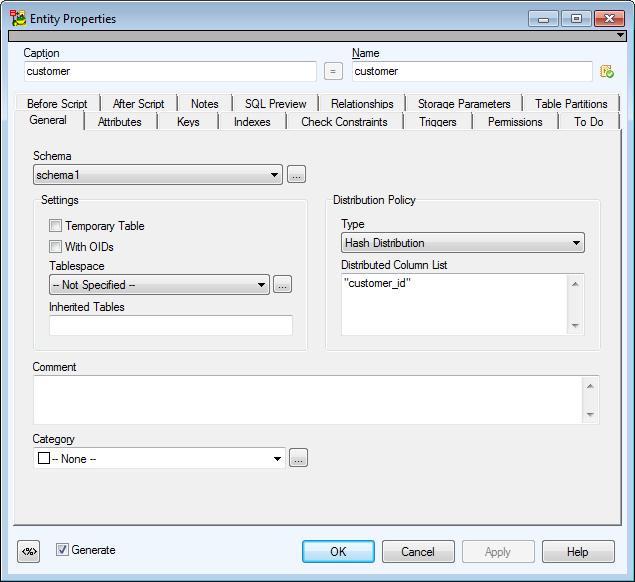

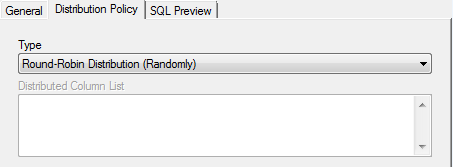

General tab

Storage Parameters tab

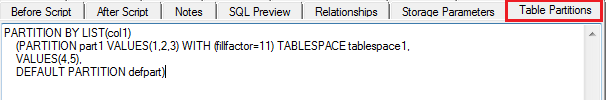

Table Partitions tab

Define partitions/subpartitions textually.

During reverse engineering, sub-tables of partitioned tables are filtered (the tables created because of partitioned tables). The behavior can be influenced in reverse engineering options, in checkbox Load Sub-Tables of Partitioned Tables.

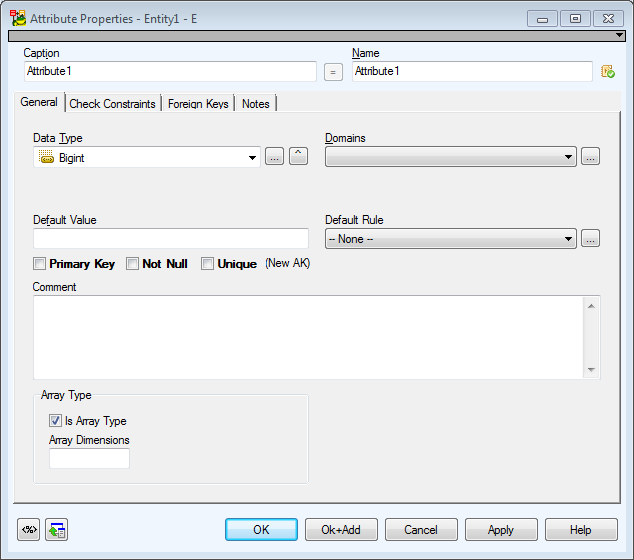

Array Type - Select the Is Array Type checkbox to enable the Array Dimension box.

Dictionary Type/Domain

Array Type - Select the Is Array Type checkbox to enable the Array Dimension box.

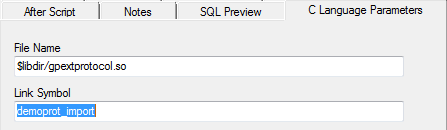

If C is selected in Language combo box, C Language Parameters tab appears.

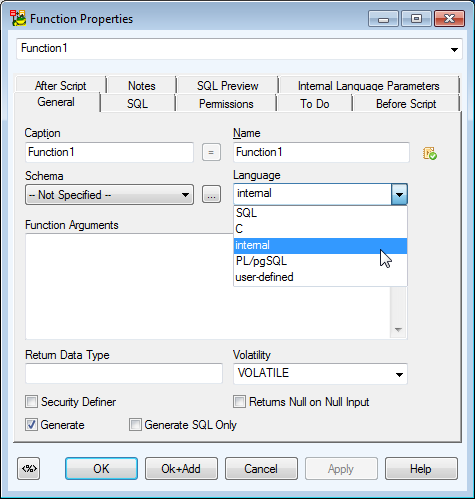

If internal is selected in Language combo box, Internal Language Parameters tab appears.

Foreign Key (Referential Integrity)

NO FUNCTIONALITY - Foreign key constraints are not supported in Greenplum database. They can be created but are not enforced.


Triggers can be created but the functionality is considerably limited.

Other supported objects:

  • Aggregate

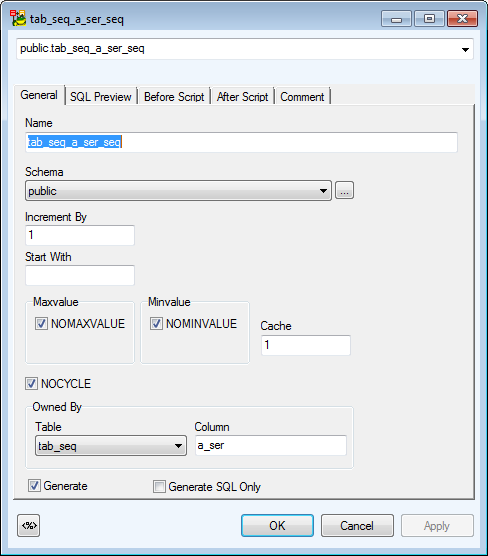

  • Sequences

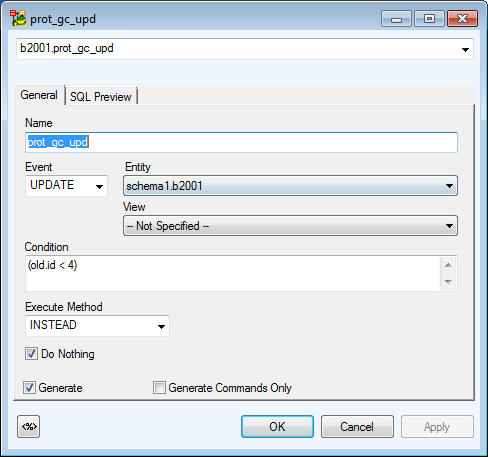

  • Rewrite Rules
  • External Tables

Objects not supported in Toad Data Modeler:

  • Resource Queue
  • (Trusted) Protocol
  • Filespace

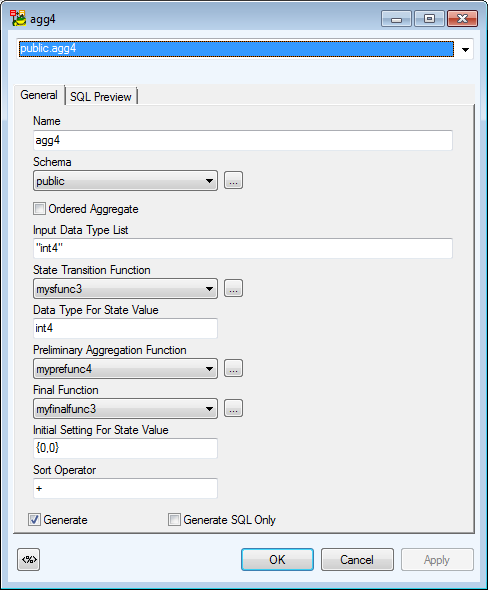

Aggregate Function dialog


Rewrite Rules

External Tables

Object specifics for Greenplum db not present in PosgtreSQL 8.2.

  • Set External Table to be Readable/Writable

Writable External Table - enables the Distribution Policy tab

  • Set External Table to be Web or Regular type External Table

Web External Table - set Execute OS Command, Segment Instances, Parameter of Segment Instances

  • Error Table Name - allows full table name, e.g. "schema1"."tablename"

Reverse Engineering

Available Data Providers are:

  • Native Connection

Native Connection:
