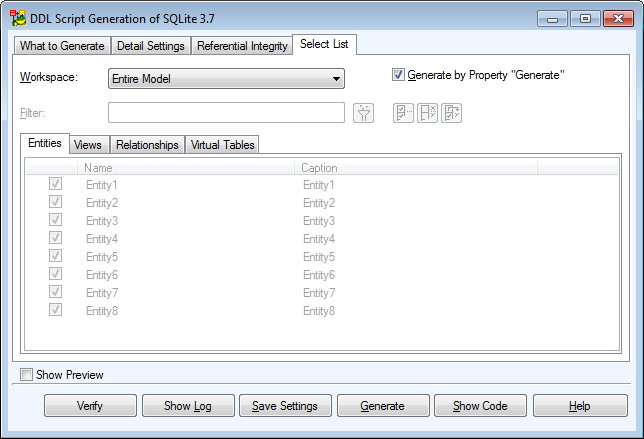

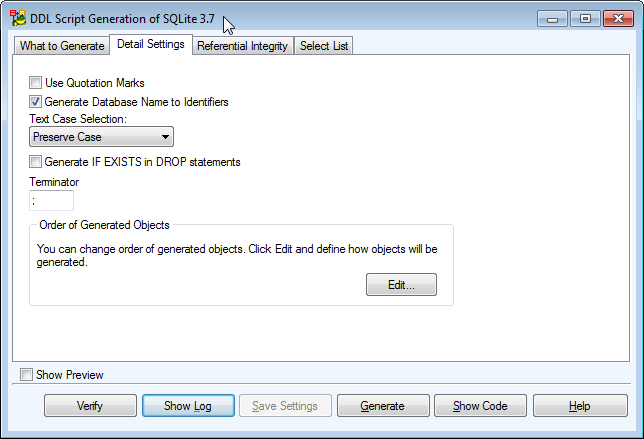

Script Generating

Sybase ASE 15.5

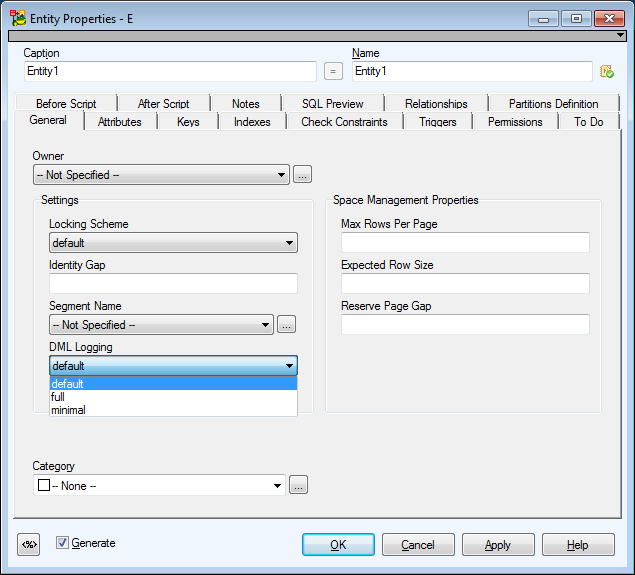

DML Logging box with default / full / minimal values.

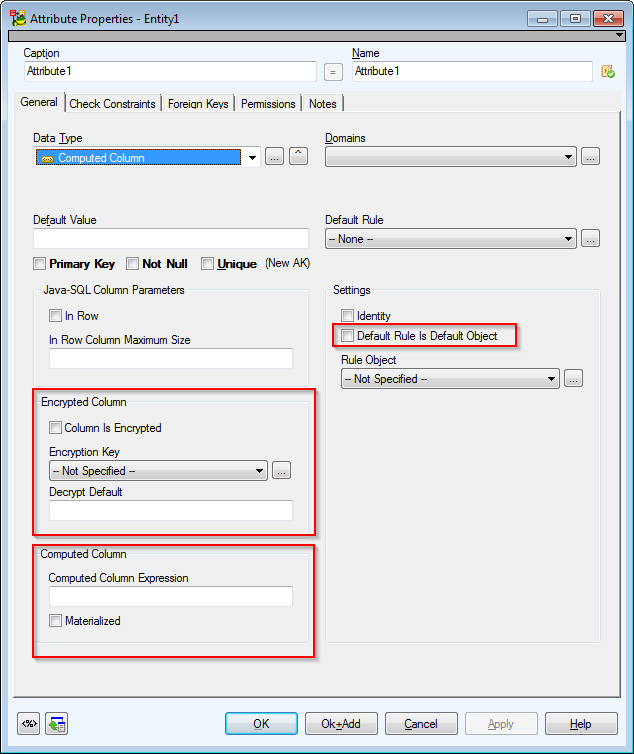

New Encrypted Column area with Encryption Key and Decrypt Default.

Computed Column - It is not a data type. Select this item from Data Type box if you want to set column as computed.

Default rule Is Default Object - Select this checkbox if you want to bind default rule (known as default object in Sybase ASE)  to attribute.

Rule Object - Select a rule object that will be bound to attribute.

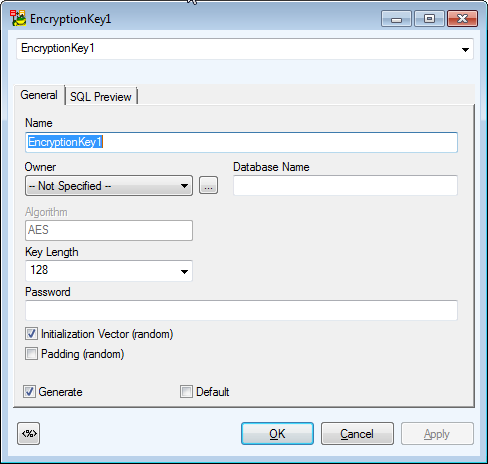

Encryption Keys

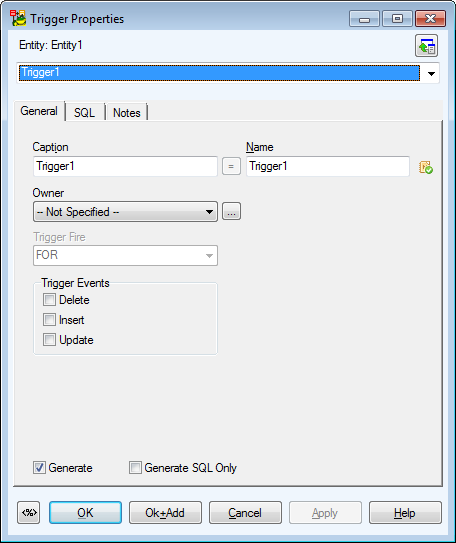

New inactive (informational) box Trigger Fire .

Trigger is now available also for Views.

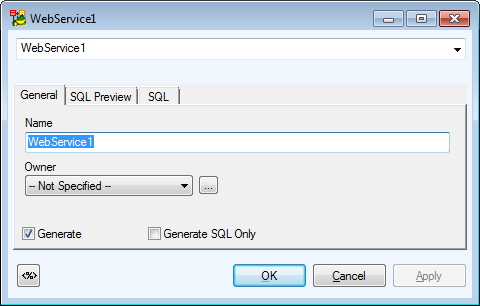

Web Services

See other objects in Model Explorer:

  • Segments
  • Encryption Key

  • Web Service


Reverse Engineering

Available Data Providers are:

  • Connection via ODBC
  • Connection via ADO
  • Native Connection

Connection via ODBC

Connection via ADO

Native Connection:

Sybase ASE 15.7

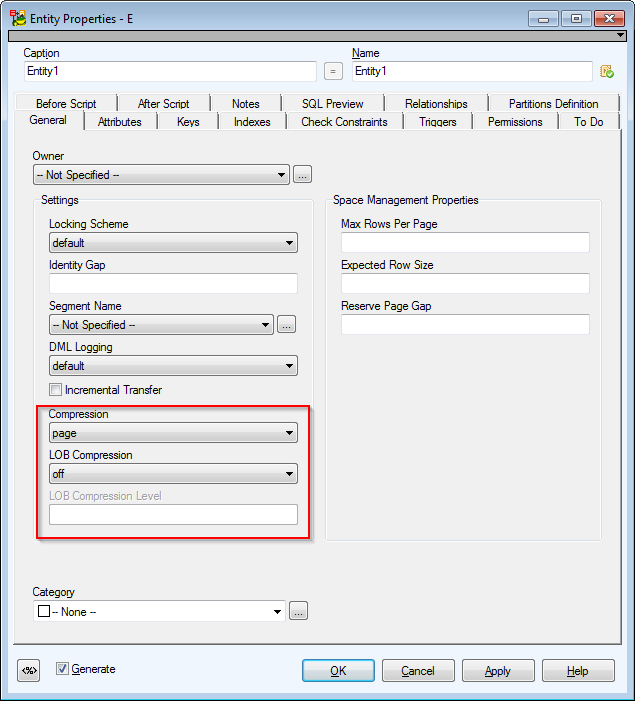

Compression box: none, page, row.


Table Compression

create table t01 (a varchar(50) not null, b varchar(50) not null) with compression = none

Table Lob Compression + level

create table t02 (a varchar integer) with lob_compression = 0

Column Compressed

create table tab03 (a text not compressed)

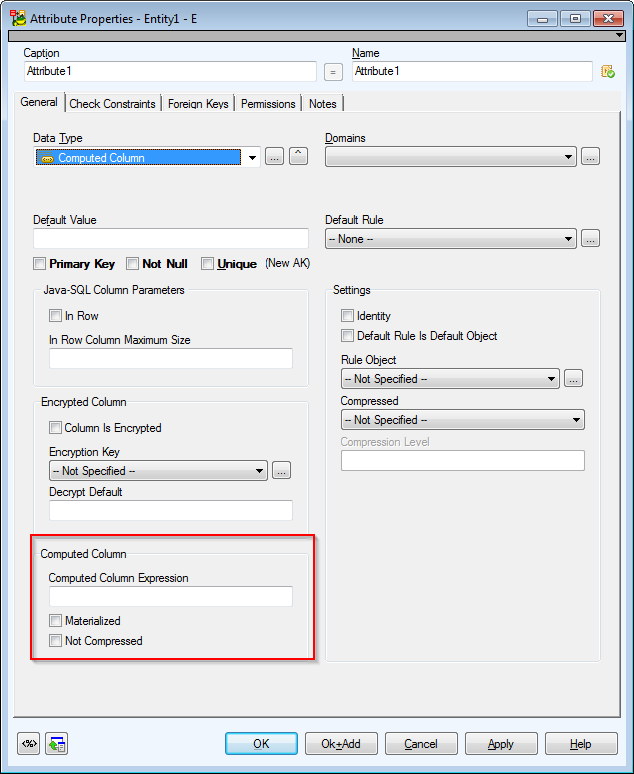

From the Data Type box, select Computed Column and define other properties in the Computed Column area.


create table tab04 (acompa as 'orderno' materialized not compressed) with lob_compression = 5


See other objects in Model Explorer:

  • Encryption Keys
  • Segments
  • Web Services
