Greenplum 4.2

Supported features - SQL/DDL script generation, reverse engineering, HTML/RTF/PDF reports, change scripting, verification.

Permissions can be set for entities, views and functions.

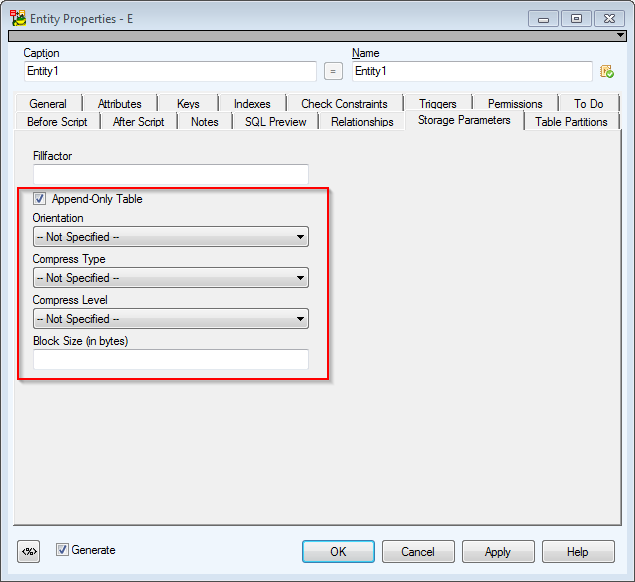

Storage Parameters tab- Select the Append-Only Table checkbox to enable the Block Size (in bytes) box.

Compress Type combo box - new options added:

  • ZLIB (default)
  • NONE

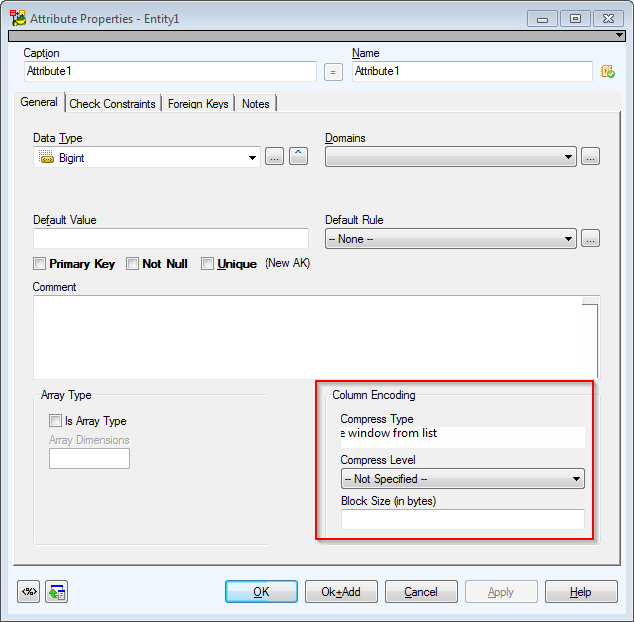

Column Encoding - only in Column Oriented tables, cannot be combined with table's compression parameters

  • Compress Type (ZLIB, QUICKLY, RLE_TYPE, NONE)
  • Compress Level (0 to 9)
  • Block Size (in bytes)

External Table

General tab, Format Typebox - new option CUSTOM.

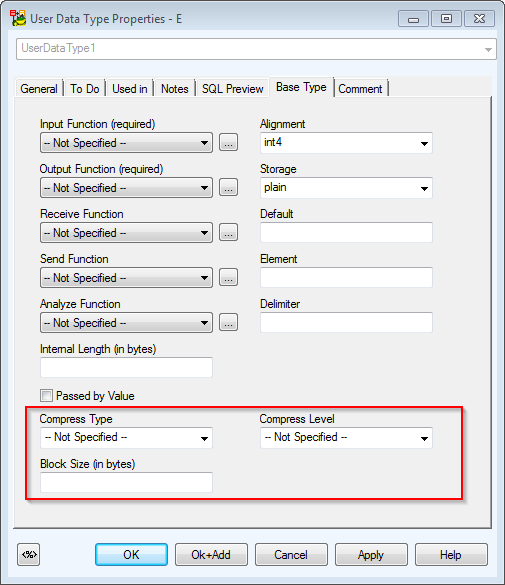

User Data Type

New options added on tab Base Type:

  • Compress Type (ZLIB, QUICKLY, RLE_TYPE, NONE options)
  • Compress Level (0 to 9)
  • Block Size (in bytes)


General pane - new With Parameter (Describe Functions) option, only for generating and reporting functions.

Other objects:

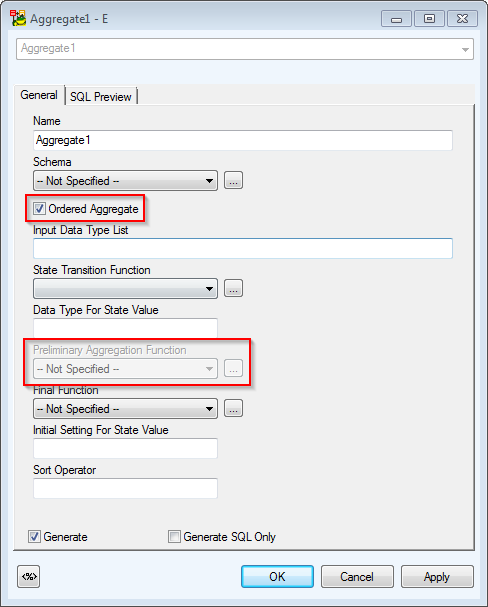

Aggregate Function

Ordered Aggregate option added. If selected, Preliminary Aggregation Function is disabled and when applied (OK/Apply), the combo box is set to value -- Not Specified --.

Reverse Engineering

See Reverse Engineering - Greenplum 4.1 for more information.

Script Generation

Ingres 9.3

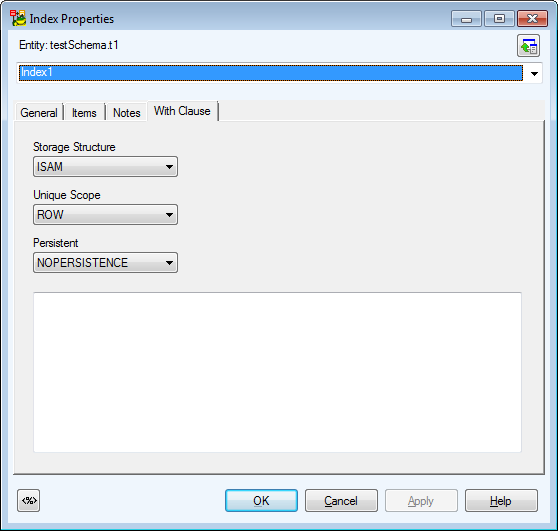

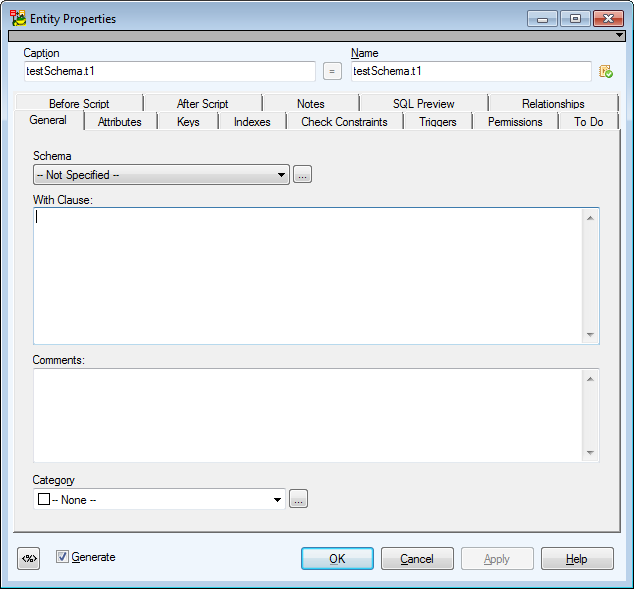

Entity and Index dialogs contain With Clause.

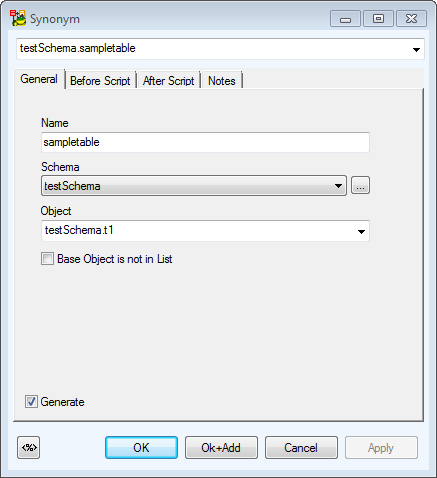

Other objects:
