Version Control

Git Version Control

To configure git

Configure Toad Data Modeler to work with Git in Options | Application | Version Control System. The values set here will be your default values for setting up new repositories in Toad Data Modeler

  1. Select Git in Type
  2. Set paths to your Git client and working directory for your repository
  3. Click Apply and Initialize Local Repository. The folder will be created (if it does not exist) and initialized
  4. Enter a path to the remote repository, user name, and password
  5. Click Apply and Clone Repository

Git application view

  • The following Git commands are displayed in Application View toolbar when you work with a model that is tracked:

Application View Button Description
Version Control System Settings Opens Options page where you can set the Version Control System preferences
Refresh Refreshes file status in Toad Data Modeler
Add to Index Adds the file to the list of tracked files
Remove from Index Removes the file from the list of tracked files
Commit Commits changes
Push Pushes the committed changes into the remote repository
Pull Pulls the current state from the remote repository
Fetch Fetches information about the current state of the remote repository
Information Displays information about the commit and its author
History Browser Allows you to browse different versions of the file, merge and compare them and create change script


Toad Data Modeler offers you integration with a third party version control system - Apache™ Subversion®.

Note: If you are familiar with Apache Subversion, you can skip this topic and navigate to the Application Settings topic.

To configure Apache Subversion on your machine

  1. Download your preferred installation package. Here, the VisualSVN is the preferred package because it contains Server, Management Console and svn.exe.

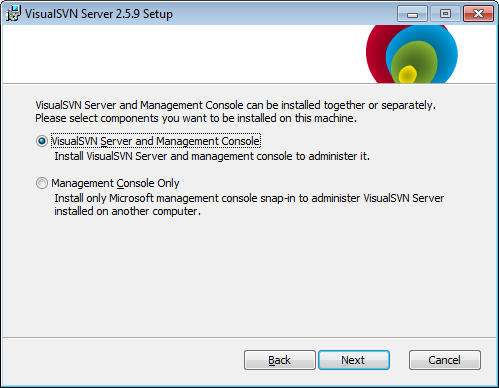

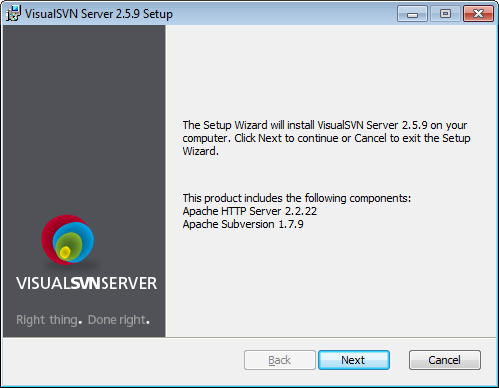

  2. Install both VisualSVN Server and Management Console.

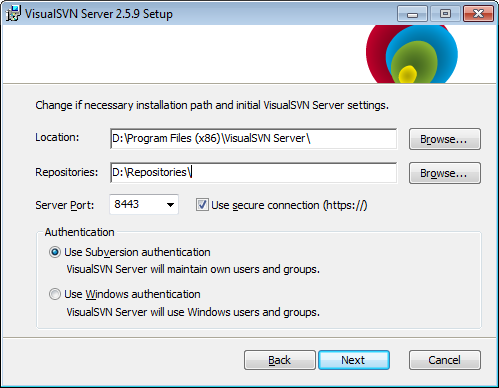

  1. Define a path to your SVN Server location, specify folder for your repository and select an authentication method.

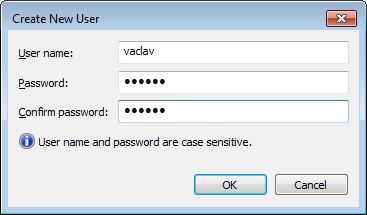

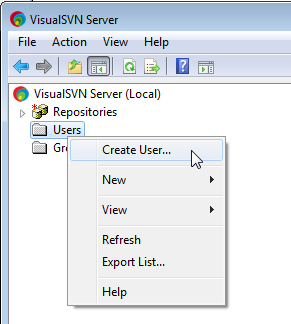

  1. After the installation, run the Visual Server SVN Manager and create a new user.

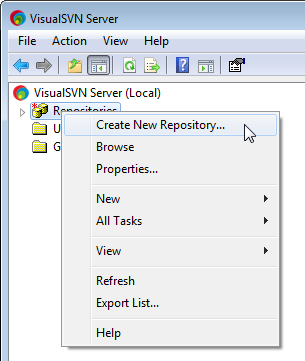

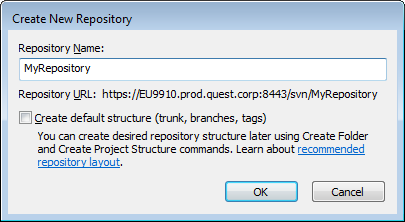

  2. Create a new repository.

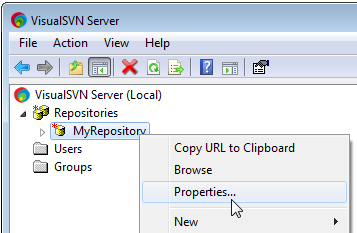

  3. Edit properties of your repositories and add the setup permissions for your newly created user.

  4. Next step: configure the Toad Data Modeler Application Settings.

Application Settings

To configure settings for Version Control System in Toad Data Modeler

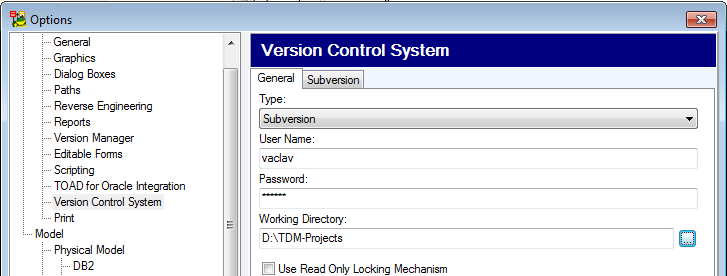

  1. Select Settings | Options | Version Control System.
  2. On the General tab, specify user name, password and Working Directory.

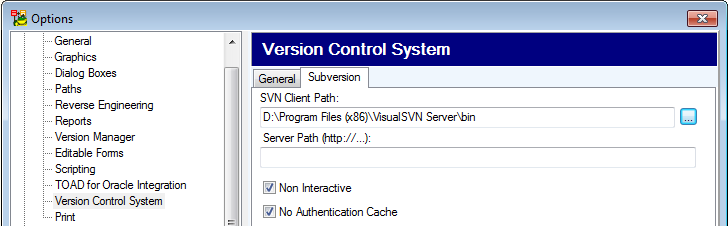

  3. On tab Subversion, define a path to folder with svn.exe file.

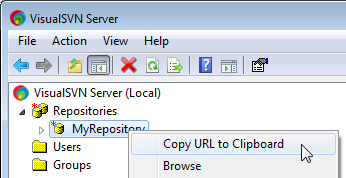

    To save some time, make your Visual Server SVN Manager active, select your repository, right-click it and select Copy URL to Clipboard.

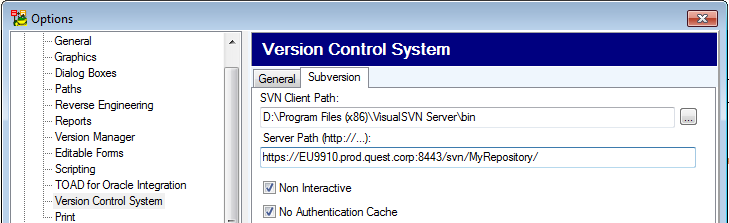

    Then paste the content of your clipboard to the Server Path field.

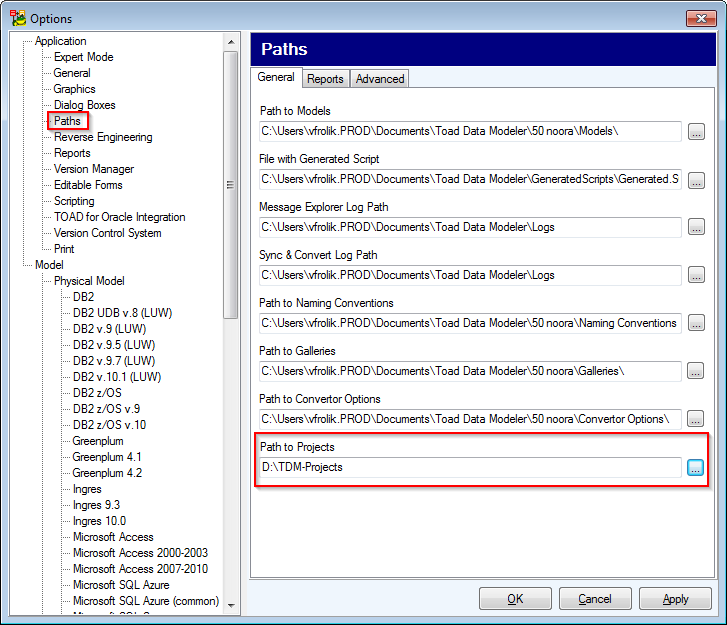

  4. If you want to use Working folder for all your projects, select section Paths and define Path to Projects to the same folder as you specified in field Working Directory.
