erwin Enterprise Architect Agile v2 - User Guide

System Architect to erwin EA Data Migration

System Architect to erwin EA Data Migration

Role Applicable to: Client Administrator

Migrate Model content from System Architect into the correct format for import into the erwin EA tool. To do this we use our offline exchange tool, that allows us to pull the metamodel and chosen data out of System Architect and map it to the metamodel we have pulled out of erwin EA. The result is data in a format that is ready to import into the erwin EA tool.

The sections below show you how to migrate a non-customized and a customized System Architect metamodel into erwin EA.

2 Steps for importing models - non-customized System Architect metamodels

2 Steps for importing models - non-customized System Architect metamodels

This example takes you through a migration with a non-customized metamodel in the source tool System Architect or the destination tool erwin EA... the output will be a set of CSV files (one per object type) that can be imported into the erwin EA tool.

1.Create mapping files and data outputs

2.Run import

Create mapping files and data outputs

Within this section, you will

Create an erwin EA Agile schema file

Create a mapping file

Create some explorer diagrams within System Architect, to extract the model information that you want

Download the exchange tool

Perform the mapping and output some CSV files

          1. We need to let our exchange tool know the metamodel within our erwin EA client area - Now that both the meta models for System Architect and erwin EA                     match, you need to download the schema for your customized erwin EA environment.

Click on the following URL (you will need to login): https://myerwin.io/ea/api/meta-structure

Select File > Save Page as. and save the file with a .spp extension, such as erwinEA-metaStructure.spp

          2. Create an Explorer diagram within System Architect. The diagram needs to contain either

the specific definition instances that you want to migrate to erwin EA.

the collections for each definition type that you want to migrate to erwin EA - The exchange tool will export all instances of a definition type for mapping if it finds an empty collection on the diagram

          3. Save the diagram

In the example below, we will transfer the specific definition instances of type Application Function and all definition instances of type Application Component within the workspace that we are in.

An example System Architect explorer diagram

          4. Next download a copy of the exchange tool, extract it and start it on the Windows environment where your System Architect instance is located.

erwin exchange tool

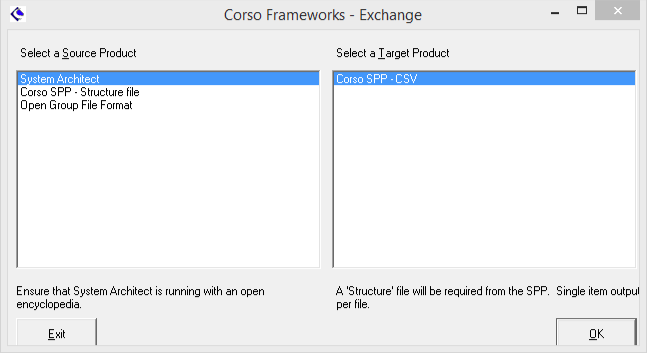

          5. Choose System Architect as the source product and Corso SPP - CSV as the destination product.

          6. Next, choose the explorer diagram you’ve just created (e.g. Migration Test) from the list available and press OK.

          7. In the select an SPP 'Structure' file box, select the .spp file downloaded at step 2.

          8. Next, in the 'Data' file box, select a location and filename (with .csv extension) for the output files to be generated to.

          9. In the last field, 'mapping', select a location and create a filename press OK.

If you have an existing mapping file, you can enter this file location (black text denotes an existing gile, blue will create new)

This file will store all the mappings between System Architect and erwin EA object types, attributes and relationships.

You will now see

a list of object types that were selected within the System Architect explorer diagram (left field, left hand columns)

mappings taken from the selected mapping file (left field, right hand columns)

a list of objects that were picked up from the erwin EA structure file (right field)

Mapped object types in exchange

Mapping is now complete.

Properties and Relationships are also mapped - these can be viewed if you select the Relationships or the Properties buttons.

          10. Next, click on the checkbox ‘Create an output file for each mapped item’. Selecting this will output data files for all of the mapped object types in the list.

          11. Press OK and then yes when asked if you would like to continue. The mapping will now occur - a message will be displayed upon completion (this can take                     some time and progress can be monitored from a report that runs in the open System Architect session).

          12. If you look in your designated output directory, you will now see files created for each of the object types and one containing all relationships (the mapping file is           also created or updated).

Open the files and perform a sanity check on the data, to ensure it is in the form you expect.

Run import of data

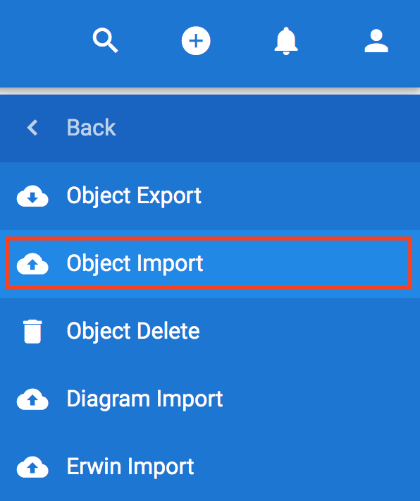

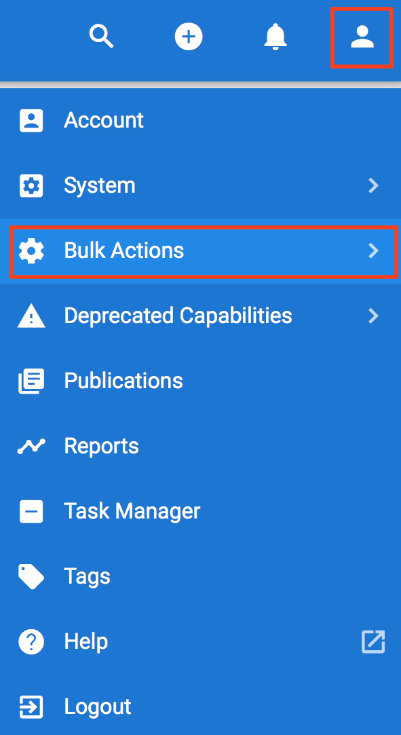

          1. In erwin EA (as an administrator), open User > Bulk Actions > Object Import.

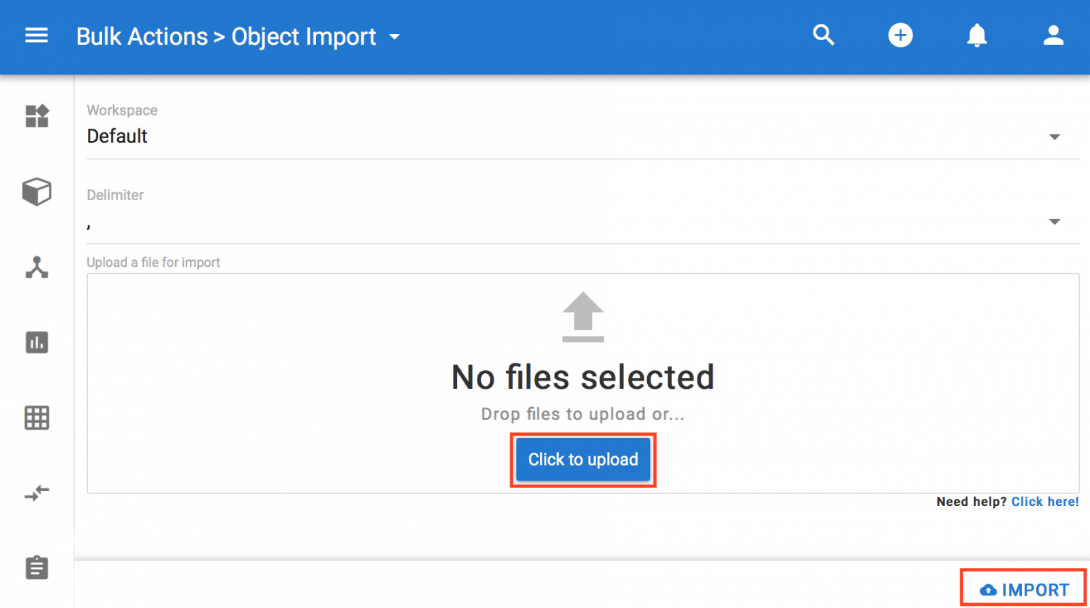

          2. Click on the Click to upload button and choose all of the csv files that you would like to import.

          3. Press the IMPORT button in the bottom right hand corner.

          4. After the import has run, click on the Objects view and choose one of your objects that has been imported.  Check that the Attributes are populated correctly.

Run some tests to compare the data within erwin EA against the data within System Architect.

Once the model content has been migrated from System Architect, the Diagram Import can commence.

3 Steps for importing models - Customized System Architect metamodels

3 Steps for importing models - Customized System Architect metamodels

This example takes you through a migration with a customized metamodel in the source tool System Architect... the output will be a set of CSV files (one per metatype) that can be imported into the erwin EA tool.

1.Match metamodels in System Architect and erwin EA

2.Create mapping files and data outputs

3.Run import

Match meta models in SA and EA

First of all, you need to understand the scope of the meta model that you wish to map to erwin EA.

A good understanding of System Architect customization may be required if customizations have been performed. It is important that you understand how to customize the erwin EA platform before starting this guide.

The following shows an example of a customized metamodel and provides two options on how to work out what needs to be mapped into erwin EA.

Option 1 -  Use the Meta Model Report macro found here - The output will allow you to see what you need to create within the erwin EA client area.

Option 2 - In System Architect, locate the usrprops.txt file that represents your customizations.

Below are suggested components that may need matching in erwin EA, if they have been cusomized within System Architect

1.Create or identify an object type in Agile EA that matches any System Architect DEFINITION keywords.

Agile EA custom object type

RENAME DEFINITION "User 3" TO "Pilot"

DEFINITION "Pilot"

{

...

}

System Architect usrprops example

          2. Create relationships in erwin EA for relationships that exist within System Architect.

Agile EA custom relationship

DEFINITION "Aircraft"

{

CHAPTER "Relationships"

PROPERTY "flown by"

{ EDIT ListOf "Pilot" MIRRORS "flies" RELATE BY "flown by" LENGTH 4500 HELP "Choose the pilot that flies this aircraft" }

}

DEFINITION "Pilot"

{

CHAPTER "Relationships"

PROPERTY "flies"

{ EDIT ListOf "Aircraft" MIRRORS "flown by" RELATE BY "flies" LENGTH 4500 HELP "Choose the aircraft this pilot flies" }

}

System Architect usrprops example

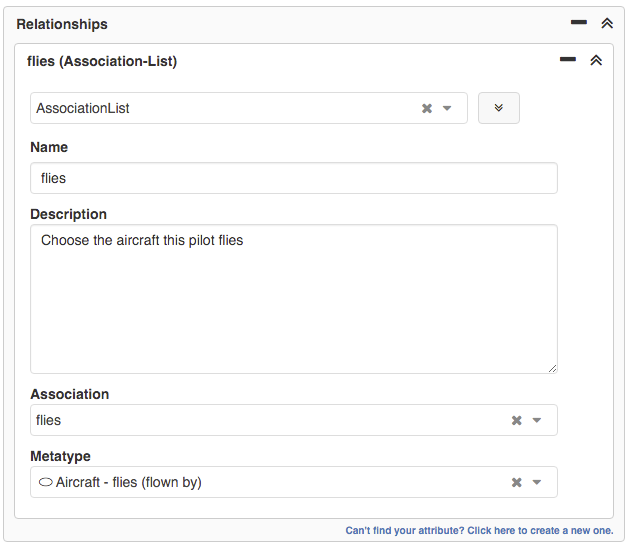

          3. Create RelationshipList attributes in erwin EA object types to match Properties that represent relationships in System Architect definitions.

Relationships can have attributes created to represent them as they are within System Architect - For this we would use a RelationshipList attribute... In erwin EA relationsips are handled differently and can represent themselves as just an entry within the objects' relationships table, the attribute does not have to exist for the relationship to be seen.

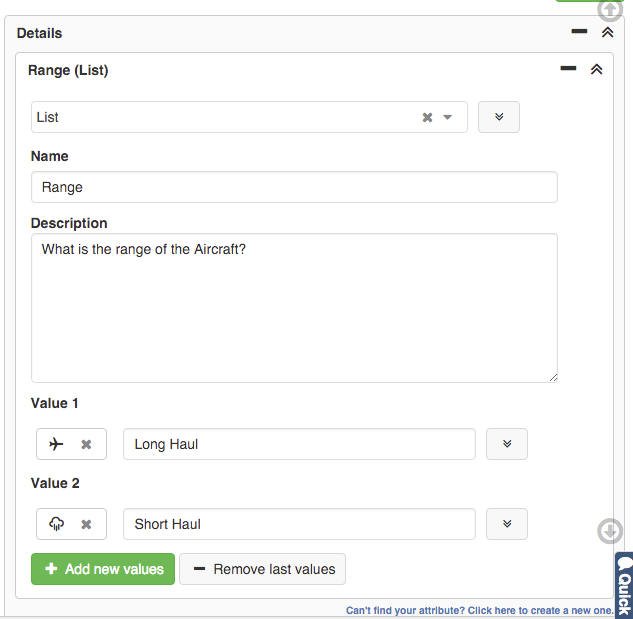

          4. Create other attribute types to match properties within System Architect.

All of the property types in System Architect can be mapped to attribute types in erwin EA.

          5. Create diagram types in erwin EA to match different types of diagram in System Architect.

Example:

In this worked example we have matched some customized properties (named Disaster Recovery Status and Support Status) within an Application Component definition type in System Architect, into erwin EA with some corresponding 'List' attributes in the application component object type.

We will then map the data and produce the output files, before importing into erwin EA

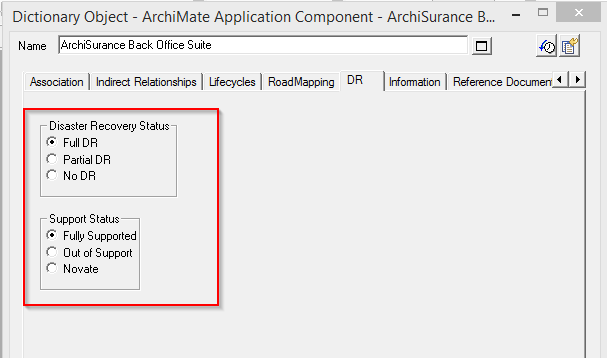

Custom properties in System Architect

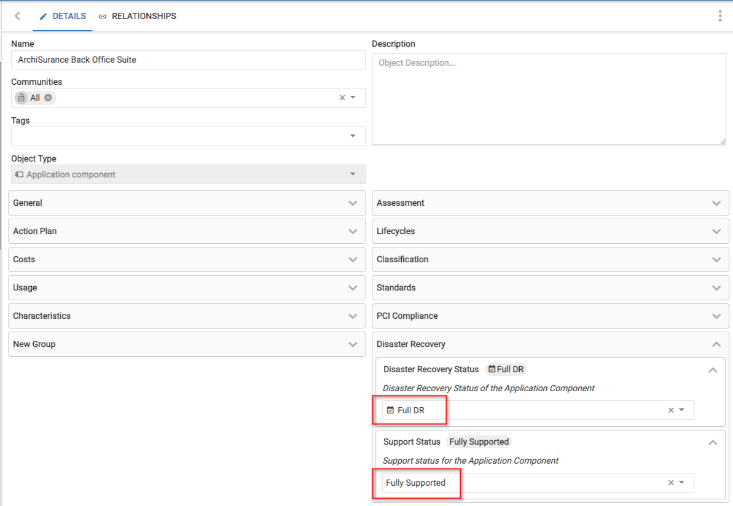

Matched attributes in erwin EA

Create mapping files and data outputs

Within this section, you will

Create an erwin EA Agile schema file

Create a mapping file as a base for mapping

Create some explorer diagrams within System Architect, to extract the model information that you want

Download the exchange tool

Perform the customization mapping and output some CSV files

          1. We need to let our exchange tool know the metamodel within our erwin EA client area - Now that both the meta models for System Architect and erwin EA                     match, you need to download the schema for your customized erwin EA environment.

Click on the following URL (you will need to login): https://myerwin.io/ea/api/meta-structure

Select File > Save Page as... and save the file with a .spp extension, such as "erwinEA-metaStructure.spp"

          2. Create an Explorer diagram within System Architect. The diagram needs to contain either

the specific definition instances that you want to migrate to erwin EA

the collections for each definition type that you want to migrate to erwin EA - The exchange tool will export all instances of a definition type for mapping if it finds an empty collection on the diagram

The diagram can also contain custom definition types.

          3. Save the diagram

In the example below, we will transfer the specific definition instances of type Application Function and all definition instances of type Application Component within the workspace that we are in.

An example System Architect explorer diagram

          4. Next download a copy of the exchange tool, extract it and start it on the Windows environment where your System Architect instance is located.

erwin exchange tool

          5. Choose System Architect as the source product and Corso SPP - CSV as the destination product.

          6. Next, choose the explorer diagram you’ve just created (e.g. Migration Test) from the list available and press OK.

          7. In the select an SPP 'Structure' file box, select the .spp file created at step 2.1

          8. Next, in the 'Data' file box, select a location and filename (with .csv extension) for the output files to be generated to.

          9. In the last field, 'mapping', select a location and create a filename press OK.

If you have an existing mapping file, you can enter this file location (black text denotes an existing gile, blue will create new)

This file will store all of the mappings between System Architect and erwin EA object types, attributes and relationships.

          10. You will now see

a list of object types that were contained within the System Architect explorer diagram (left field, left hand columns) - this will include any custom definition types

mappings taken from the selected mapping file (left field, right hand columns) - You will see spaces in the centre columns if more mappings now need to occur (if you have any custom object types to map)

a list of object types from the erwin EA structure file (right field) that can be mapped to the empty object types from System Architect.

Exchange mapping of object types

We can see that we can use the standard mapping at this point, as our object types themselves are not customized, although some of the attributes within them have been customized.

If you did want to map an object type, you would simply Drag each Agile EA object type (right hand pane) onto a definition type on the left hand pane.

Pressing Enter, or double-clicking, will also copy the 'Available item' into the 'Mapped' columns.

          11. Now, choose the mapped type ArchiMAte Application Component in the left column and click Properties.

If you specified the names of erwin EA attributes to be the same as System Architect properties, you can press the Auto Map button. This will match properties by name.

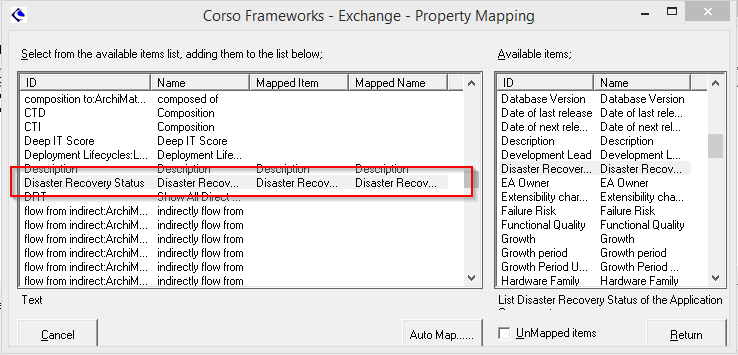

          12. Scroll the left hand columns until you find the Disaster Recovery Status property from within System Architect. Scroll in the right hand columns until you find           the corresponding attribute within the erwin EA attribute list. Select the appropriate attribute from the right hand column and drag onto the corresponding property in           the left hand column.

          13. Do the same for the Support Status property also. Once complete, select the Return button

(Optional) You can look at the Relationships section of the mapped types also.

          14. At this point the mapping is complete - We have used the base mapping file and added in our custom attributes for mapping - Next, click on the checkbox                     ‘Create an output file for each mapped item’.

Selecting this will output data files for all of the mapped object types in the list.

          15. Press OK and then yes when asked if you would like to continue. The mapping will now occur - a message will be displayed upon completion (this can take                     some time and progress can be monitored from a report that runs in the open System Architect session).

          16. If you look in your designated output directory, you will now see files created for each of the object types and one containing all relationships (the mapping file is           also created or updated).

In your output .csv file, you should see the corresponding data has been exported and is now ready for import into erwin EA.

Run import of data

          1. In erwin EA (as an administrator), open User > Bulk Actions > Object Import

          2. Click on the Click to upload button and choose all of the csv files that you would like to import.

          3. Press the IMPORT button in the bottom right hand corner.

          4. After the import has run, click on the Objects view and choose one of your objects that has been imported (ArchiSurance Back Office Suite in our example).                      Notice the Attributes do now exist and are populated correctly.

Run some tests to compare the data within erwin EA to what was seen within System Architect.

Once the model content has been migrated from System Architect, the Diagram Import can commence.

System Architect Diagram Import

System Architect Diagram Import

Role Applicable to: Client Administrator

Import of diagrams from the System Architect tool is now enabled on the erwin EA agile tool. Diagrams need to be output in the standard System Architect XML format, which the erwin EA agile tool can then read and allows users to map to erwin EA agile diagram types.
