erwin Enterprise Architect Agile v2

In the model below, we use the metamodel to guide the construction of the model. The meta model provides the framework within which the model can be constructed.

We call the instances of the object types - Objects.

Meta models and the SPP

Each package in the erwin Data Foundation Platform has a meta model. The meta model can be changed. Further guidance is provided here.

The entire erwin Data Foundation Platform is a meta model in its own right. Each package is a subset of the entire meta model and some object types and relationships overlap.

Innovation management metamodel

Package: Innovation Management

Role Applicable to: Client Administrator, User, Contributor, Reviewer

Some of the objects and metamodel are based on the ArchiMate specification from the Open Group. However, this has been significantly extended to support innovation management.

erwin licenses the ArchiMate specification from the open group. The terms of the license are here.

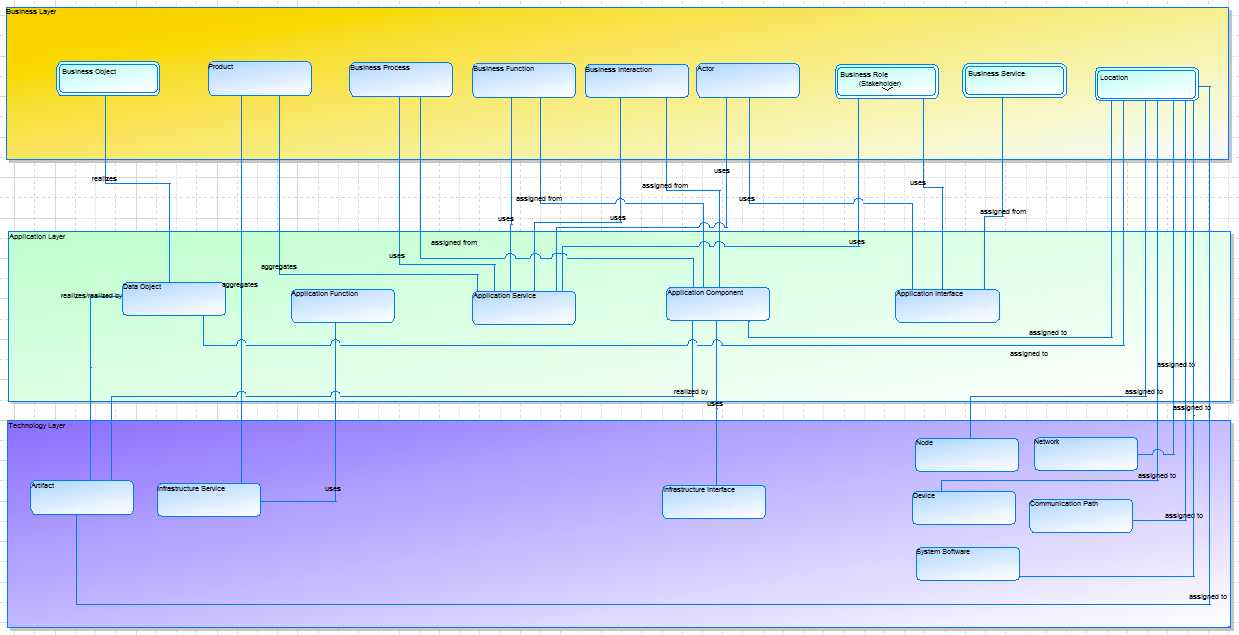

Enterprise architecture metamodel

Package: Agile Enterprise Architecture

Role Applicable to: Client Administrator, User, Contributor, Reviewer

The enterprise architecture metamodel is based on ArchiMate and TOGAF 9 attributes. The metamodel includes the following:

ArchiMate 2.1 Core

ArchiMate 2.1 Implementation and Migration Extension

ArchiMate 2.1 Motivation Extension

Capability Extension

The metamodel has been extended from ArchiMate 2.1 to reflect the Open Groups' latest thinking around capabilities. A working whitepaper is available through the open group.

Attributes

The ArchiMate language does not define any explicit attributes for object types. Therefore, all attributes for the metamodel are mapped from TOGAF 9.1 attributes. Where object types are specializations of other other types, then we have mapped the super type attributes to the sub type. For example, a Metric will inherit all of the attributes of Driver as it is a specialism of a Driver.

The platform is extensible and you may add your own attributes to any object type. See the customization section for more details.

A link to the specification exists here.

The mappings are based on the harmonization work carried out at the open group between TOGAF and ArchiMate. The link to this work is here. However, you must be an Open Group member to access these documents.

The following table shows the ArchiMate to TOGAF object type mappings and the attributes that have been mapped:

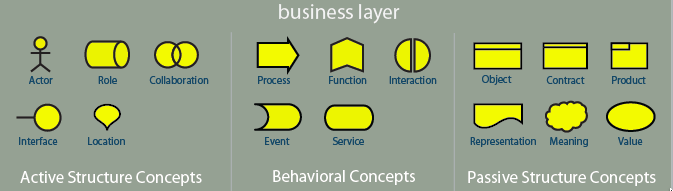

Business Domain Metamodel

ArchiMate Element

TOGAF Element

Attributes

Business Actor

Actor

# FTEs	Estimated number of FTEs that operate as this Actor.
Actor goal	Objectives that this actor has, in general terms.
Actor tasks	Tasks that this actor performs, in general terms.

Organization Unit

Headcount

Number of FTEs working within the organization. (Note that this attribute is merged with # FTEs)

Business Collaboration

N/A

This object type has the default description attribute.

Business Function

Function

Standard Class	Non-Standard, Proposed Standard, Provisional Standard, Standard, Phasing-Out Standard, RetiredStandard
Standard creation date	If the product is a standard, when the standard was created.
Last standard review date	Last date that the standard was reviewed.
Next standard review date	Next date for the standard to be reviewed.
Retire date	Date when the standard was/will be retired.

Business Interface

N/A

This object type has the default description attribute.

Business Object

Data Entity

Category	The following categories of data entity apply: Message, Internally Stored Entity.
Privacy classification	Level of restriction placed on access to the data.
Retention classification	Level of retention to be placed on the data.

Business Process

Process

Standards class	Non-Standard, Proposed Standard, Provisional Standard, Standard, Phasing-Out Standard, Retired Standard
Standard creation date	If the product is a standard when the standard was created.
Last standard review date	Last date that the standard was reviewed.
Next standard review date	Next date for the standard to be reviewed.
Retire date	Date when the standard was/will be retired.
Process criticality	Criticality of this process to business operations.
Manual or automated	Whether this process is supported by IT or is a manual process.
Process volumetrics	Data on frequency of process execution.

Role

# FTEs

Estimated number of FTEs that operate as this Role.

Business Service

Service

Standards class	Non-Standard, Proposed Standard, Provisional Standard, Standard, Phasing-Out Standard, Retired Standard
Standard creation date	If the product is a standard when the standard was created.
Last standard review date	Last date that the standard was reviewed.
Next standard review date	Next date for the standard to be reviewed.
Retire Date	Date when the standard was/will be re

Contract

Behavior characteristics	Functional behavior to be supported within the scope of the contract.
Service name "caller"	Consuming service.
Service name "called"	Providing service.
Service quality characteristics	Non-functional behavior to be supported within the scope of the contract.
Availability characteristics	Degree to which something is available for use
Service times	Hours during which the service must be available
Manageability characteristics	Ability to gather information about the state of something and control it
Serviceability characteristics	Ability to identify problems and take corrective action, such as to repair or upgrade a component in a running system
Performance characteristics	Ability of a component to perform its tasks in an appropriate time.
Response requirement	Response times that the service provider must meet for particular operations.
Reliability characteristics	Resistance to failure.
Quality of information required	Contracted requirements on accuracy and completeness of information
Contract control requirements	Level of governance and enforcement applied to the contractual parameters for overall service.
Result control requirements	Measures in place to ensure that each service request meets contracted criteria
Recoverability characteristics	Ability to restore a system to a working state after an interruption
Locatability characteristics	Ability of a system to be found when needed
Security characteristics	Ability of a system to prevent unauthorized access to functions and data
Privacy characteristics	Protection of data from unauthorized access
Integrity characteristics	Ability of a system to ensure that data has not been corrupted
Credibility characteristics	Ability of a system to ensure that the service request originates from an authorized source
Localization characteristics	Ability of a service to support localized variants for different consumer groups
Internationalization characteristics	Ability of a service to support international variations in business logic and data representation (such as character set)
Interoperability characteristics	Ability of the service to interoperate with different technical environments, inside and outside of the organization.
Scalability characteristics	Ability of the service to grow or shrink its performance or capacity appropriately to the demands of the environment in which it operates
Portability characteristics	Of data, people, applications, and components.
Extensibility characteristics	Ability to accept new functionality.
Capacity characteristics	Contracted capacity of the service provider to meet requests
Throughput	Required throughput capacity.
Throughput period	Time period needed to deliver throughput capacity
Growth period	Expected future growth rate of service request
Peak profile short term	Short-term profile of peak service traffic
Peak profile long term	Long-term profile of peak service traffic

Business Event

Event

This object type has the default description attribute.

Business Interaction

Process or Function

Standards class	Non-Standard, Proposed Standard, Provisional Standard, Standard, Phasing-Out Standard, Retired Standard
Standard creation date	If the product is a standard when the standard was created.
Last standard review date	Last date that the standard was reviewed.
Next standard review date	Next date for the standard to be reviewed.
Retire Date	Date when the standard was/will be retired,

Location

Category

The following categories of Location apply: Region (applies to a grouping of countries or territory, e.g., South East Asia, UK, and Ireland), Country (applies to a single country; e.g., US), Building (applies to a site of operation; where several offices are collected in a single city, this category may represent a city), and Specific Location (applies to any specific location within a building, such as a server room). The nature of the business may introduce other Locations: Ship or Port for a ferry company, Mine for a gold company, Car for a police force, Hotel for any firm's traveling workers, and so on.

Meaning

N/A

This Object type has the default description attribute.

Product

This Object type has the default description attribute.

Representation

N/A

This Object type has the default description attribute.

Value

N/A

This Object type has the default description attribute.

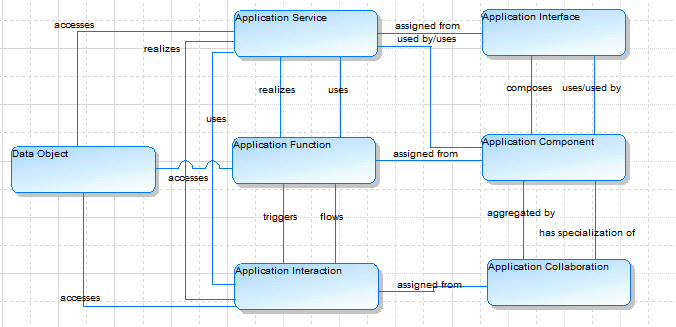

Application Domain Metamodel

ArchiMate Element

TOGAF Element

Attributes

Application Service

Information System Service

Standards class	Non-Standard, Proposed Standard, Provisional Standard, Standard, Phasing-Out Standard, Retired Standard
Standard creation date	If the product is a standard when the standard was created.
Last standard review date	Last date that the standard was reviewed.
Next standard review date	Next date for the standard to be reviewed.
Retire Date	Date when the standard was/will be retired,

Data Object

Data Entity

Category	The following categories of data entity apply: Message, Internally Stored Entity
Privacy classification	Level of restriction placed on access to the data
Retention classification	Level of retention to be placed on the data

Logical Data Component

Standards class	Non-Standard, Proposed Standard, Provisional Standard, Standard, Phasing-Out Standard, Retired Standard
Standard creation date	If the product is a standard when the standard was created.
Last standard review date	Last date that the standard was reviewed.
Next standard review date	Next date for the standard to be reviewed.
Retire Date	Date when the standard was/will be retired,

Application Interface

N/A

This Object type has the default description attribute.

Application Component

Logical Application Component

Standards class	Non-Standard, Proposed Standard, Provisional Standard, Standard, Phasing-Out Standard, Retired Standard
Standard creation date	If the product is a standard when the standard was created.
Last standard review date	Last date that the standard was reviewed.
Next standard review date	Next date for the standard to be reviewed.
Retire Date	Date when the standard was/will be retired,

Physical Application Component

Lifecycle status	Proposed, In Development, Live, Phasing Out, Retired
Standards class	Non-Standard, Proposed Standard, Provisional Standard, Standard, Phasing-Out Standard, Retired Standard
Standard creation date	If the product is a standard, when the standard was created
Last standard review date	Last date that the standard was reviewed
Next standard review date	Next date for the standard to be reviewed
Retire date	Date when the standard was/will be retired
Initial live date	Date when the first release of the application was/will be released into production
Date of last release	Date when the last release of the application was released into production
Date of next release	Date when the next release of the applic.ation will be released into production
Retirement date	Date when the application was/will be retired
Availability characteristics	Degree to which something is available for use.
Service times	Hours during which the application must be available
Manageability characteristics	Ability to gather information about the state of something and control it
Serviceability characteristics	Ability to identify problems and take corrective action, such as to repair or upgrade a component in a running system
Performance characteristics	Ability of a component to perform its tasks in an appropriate time
Reliability characteristics	Resistance to failure
Recoverability characteristics	Ability to restore a system to a working state after an interruption
Locatability characteristics	Ability of a system to be found when needed
Security characteristics	Ability of a system to prevent unauthorized access to functions and data
Privacy characteristics	Protection of data from unauthorized access
Integrity characteristics	Ability of a system to ensure that data has not been corrupted
Credibility characteristics	Ability of a system to ensure that the service request originates from an authorized source
Localization characteristics	Ability of a service to support localized variants for different consumer groups
Internationalization characteristics	Ability of a service to support international variations in business logic and data representation (such as character set)
Interoperability characteristics	Ability of the service to interoperate with different technical environments, inside and outside of the organization
Scalability characteristics	Ability of the service to grow or shrink its performance or capacity appropriately to the demands of the environment in which it operates
Portability characteristics	Of data, people, applications, and components
Extensibility characteristics	Ability to accept new functionality
Capacity characteristics	Contracted capacity of the service provider to meet requests
Throughput	Required throughput capacity
Throughput period	Time period needed to deliver throughput capacity
Growth	Expected future growth rate of service request
Growth period	Time period needed to reach the expected growth rate
Peak profile short term	Short-term profile of peak service traffic
Peak profile long term	Long-term profile of peak service traffic

Application Collaboration

N/A

This Object type has the default description attribute.

Application Function

Logical Application Component

Standards class	Non-Standard, Proposed Standard, Provisional Standard, Standard, Phasing-Out Standard, Retired Standard
Standard creation date	If the product is a standard when the standard was created.
Last standard review date	Last date that the standard was reviewed.
Next standard review date	Next date for the standard to be reviewed.
Retire Date	Date when the standard was/will be retired,

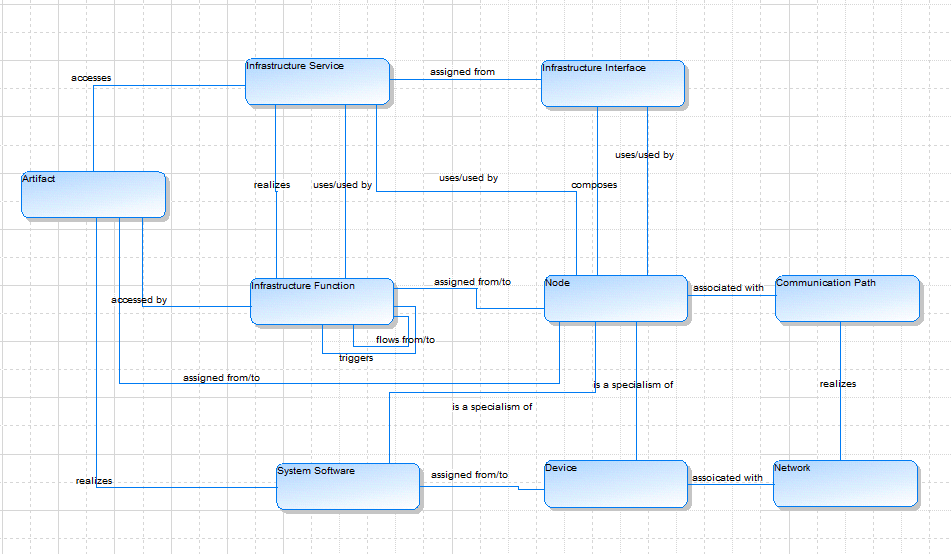

Technology Domain Metamodel

ArchiMate Element

TOGAF Element

Attributes

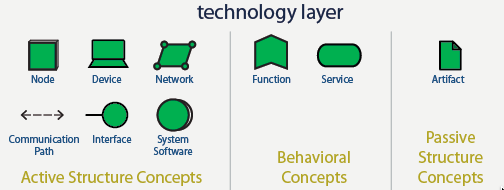

Infrastructure Service

Platform Service

Standard Class	Non-Standard, Proposed Standard, Provisional Standard, Standard, Phasing-Out Standard, Retired Standard.
Category	Platform Services are categorized according to the TOGAF TRM, which may be extended to meet the needs of an individual organization

Infrastructure Function

Logical Technology Component

Standards class	Non-Standard, Proposed Standard, Provisional Standard, Standard, Phasing-Out Standard, Retired Standard
Standard creation date	If the product is a standard when the standard was created.
Last standard review date	Last date that the standard was reviewed.
Next standard review date	Next date for the standard to be reviewed.
Retire Date	Date when the standard was/will be retired,

Artifact

Physical Data Component

Standards class	Non-Standard, Proposed Standard, Provisional Standard, Standard, Phasing-Out Standard, Retired Standard
Standard creation date	If the product is a standard when the standard was created.
Last standard review date	Last date that the standard was reviewed.
Next standard review date	Next date for the standard to be reviewed.
Retire Date	Date when the standard was/will be retired,

System Software

Physical Technology Component

Standards class	Non-Standard, Proposed Standard, Provisional Standard, Standard, Phasing-Out Standard, Retired Standard
Standard creation date	If the product is a standard when the standard was created.
Last standard review date	Last date that the standard was reviewed.
Next standard review date	Next date for the standard to be reviewed.
Retire Date	Date when the standard was/will be retired,
Category	Physical Technology Components are categorized according to the TOGAF TRM, which may be extended to meet the needs of an individual organization.
Product Name	Name of the product making up the technology component.
Module Name	Module, or other sub-product, name making up the technology component.
Vendor	Vendor providing the technology component.
Version	Version of the product making up the technology component

Device

Physical Technology Component

Standards class	Non-Standard, Proposed Standard, Provisional Standard, Standard, Phasing-Out Standard, Retired Standard
Standard creation date	If the product is a standard when the standard was created.
Last standard review date	Last date that the standard was reviewed.
Next standard review date	Next date for the standard to be reviewed.
Retire Date	Date when the standard was/will be retired,

Node

Logical Technology Component

Standards class	Non-Standard, Proposed Standard, Provisional Standard, Standard, Phasing-Out Standard, Retired Standard
Standard creation date	If the product is a standard when the standard was created.
Last standard review date	Last date that the standard was reviewed.
Next standard review date	Next date for the standard to be reviewed.
Retire Date	Date when the standard was/will be retired,

Infrastructure Interface

Logical Technology Component

Standards class	Non-Standard, Proposed Standard, Provisional Standard, Standard, Phasing-Out Standard, Retired Standard
Standard creation date	If the product is a standard when the standard was created.
Last standard review date	Last date that the standard was reviewed.
Next standard review date	Next date for the standard to be reviewed.
Retire Date	Date when the standard was/will be retired,

Physical Technology Component

Standards class	Non-Standard, Proposed Standard, Provisional Standard, Standard, Phasing-Out Standard, Retired Standard
Standard creation date	If the product is a standard when the standard was created.
Last standard review date	Last date that the standard was reviewed.
Next standard review date	Next date for the standard to be reviewed.
Retire Date	Date when the standard was/will be retired,
Category	Physical Technology Components are categorized according to the TOGAF TRM, which may be extended to meet the needs of an individual organization.
Product Name	Name of the product making up the technology component.
Module Name	Module, or other sub-product, name making up the technology component.
Vendor	Vendor providing the technology component.
Version	Version of the product making up the technology component

Network

Physical Technology Component

Standards class	Non-Standard, Proposed Standard, Provisional Standard, Standard, Phasing-Out Standard, Retired Standard
Standard creation date	If the product is a standard when the standard was created.
Last standard review date	Last date that the standard was reviewed.
Next standard review date	Next date for the standard to be reviewed.
Retire Date	Date when the standard was/will be retired,
Category	Physical Technology Components are categorized according to the TOGAF TRM, which may be extended to meet the needs of an individual organization.
Product Name	Name of the product making up the technology component.
Module Name	Module, or other sub-product, name making up the technology component.
Vendor	Vendor providing the technology component.
Version	Version of the product making up the technology component

Communication Path

Logical Technology Component

Standards class	Non-Standard, Proposed Standard, Provisional Standard, Standard, Phasing-Out Standard, Retired Standard
Standard creation date	If the product is a standard when the standard was created.
Last standard review date	Last date that the standard was reviewed.
Next standard review date	Next date for the standard to be reviewed.
Retire Date	Date when the standard was/will be retired,

Cross Layer Metamodel

Implementation and Migration Extension Metamodel

Plateau

N/A

This object type has the default description attribute.

Gap

This object type has the default description attribute.

Deliverable

N/A

This object type has the default description attribute.

Work Package

Category	The following categories of work package apply: Work Package, Work Stream, Project, Program, Portfolio.
Capability delivered	Describes the contribution this work package makes to capability delivery.

Motivation Extension Metamodel

Stakeholder (specialism of Role)

Role

# FTEs

Estimated number of FTEs that operate as this Role

Organization Unit

Headcount

Number of FTEs working within the organization. (Note that this attribute is merged with # FTEs)

Driver

This object type has the default description attribute.

Assessment

Measure

This object type has the default description attribute.

Goal

This object type has the default description attribute.

Objective

This object type has the default description attribute.

Principle

Category	The following categories of principle apply: Guiding Principle, Business Principle, Data Principle, Application Principle, Integration Principle, Technology Principle.
Priority	Priority of this principle relative to other principles
Statement of Principle	Statement of what the principle is
Rationale	Statement of why the principle is required and the outcome to be reached
Implication	Statement of what the principle means in practical terms
Metric	Identifies mechanisms that will be used to measure whether the principle has been met or not

Requirement

Statement of requirement	Statement of what the requirement is, including a definition of whether the requirement shall be met, should be met, or may be met
Rationale	Statement of why the requirement exists
Acceptance criteria	Statement of what tests will be carried out to ensure that the requirement will be met
