Greenplum 4.2

Databases > Specifics - Greenplum 4.2

Supported features - SQL/DDL script generation, reverse engineering, HTML/RTF/PDF reports, change scripting, verification.

Permissions can be set for entities, views and functions.

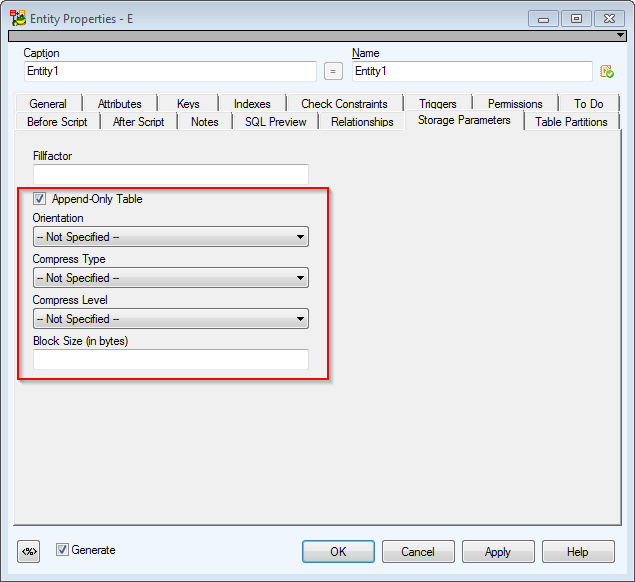

Entity

Storage Parameters tab- Select the Append-Only Table checkbox to enable the Block Size (in bytes) box.

Compress Type combo box - new options added:

ZLIB (default)
QUICKLY
RLE_TYPE
NONE

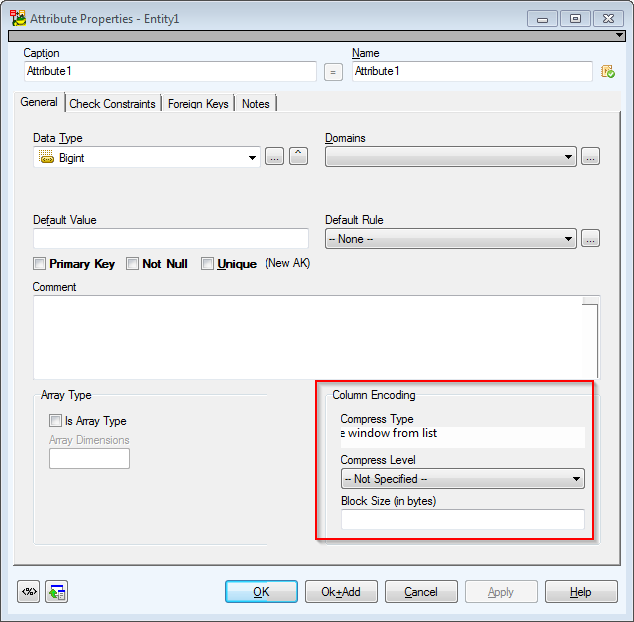

Attribute

Column Encoding - only in Column Oriented tables, cannot be combined with table's compression parameters

Compress Type (ZLIB, QUICKLY, RLE_TYPE, NONE)
Compress Level (0 to 9)
Block Size (in bytes)

External Table

General tab, Format Typebox - new option CUSTOM.

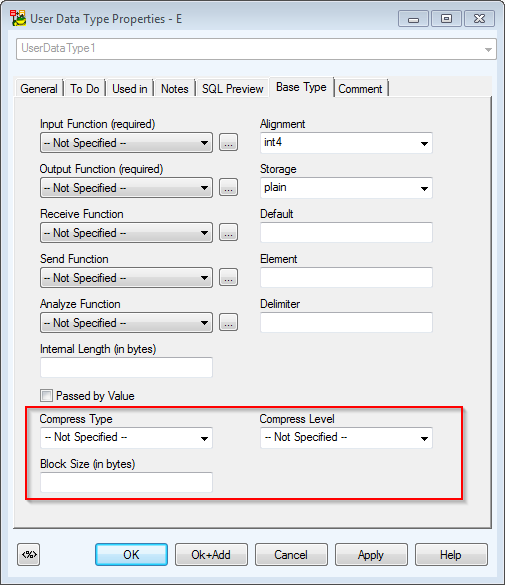

User Data Type

New options added on tab Base Type:

Compress Type (ZLIB, QUICKLY, RLE_TYPE, NONE options)
Compress Level (0 to 9)
Block Size (in bytes)

Function

General pane - new With Parameter (Describe Functions) option, only for generating and reporting functions.

Other objects:

Aggregate Function

Ordered Aggregate option added. If selected, Preliminary Aggregation Function is disabled and when applied (OK/Apply), the combo box is set to value -- Not Specified --.

Reverse Engineering

Databases > Greenplum 4.2 > Reverse Engineering

See Reverse Engineering - Greenplum 4.1 for more information.

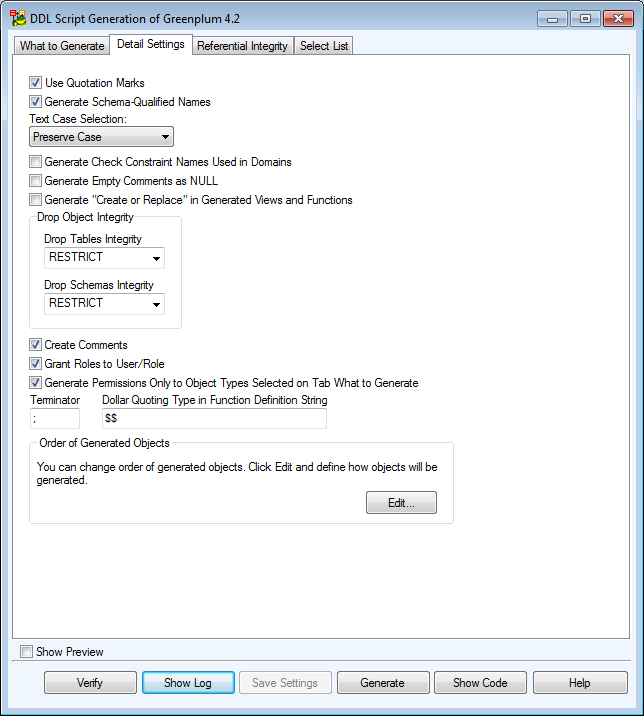

Script Generation

Databases > Greenplum 4.2 > Script Generation

Ingres 9.3

Databases > Specifics - Ingres 9.3

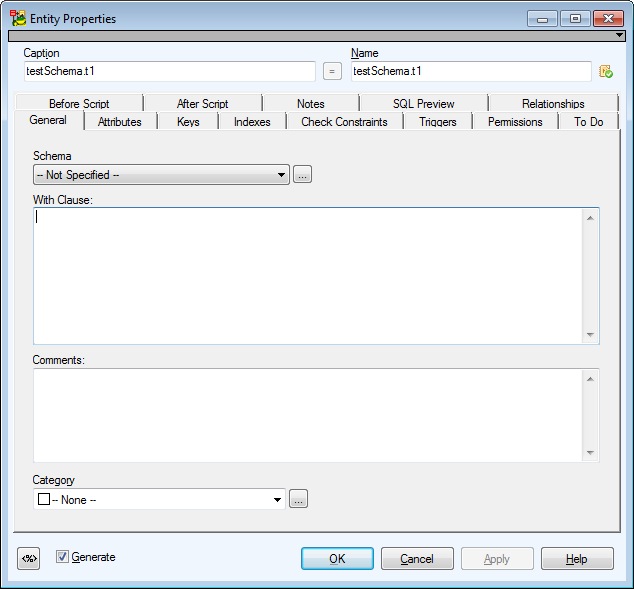

Entity

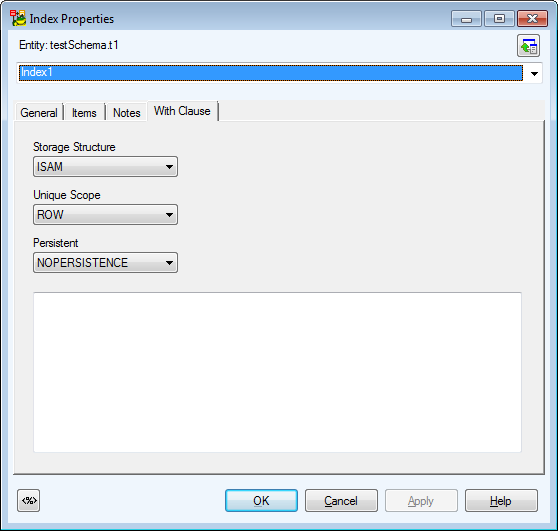

Index

Entity and Index dialogs contain With Clause.

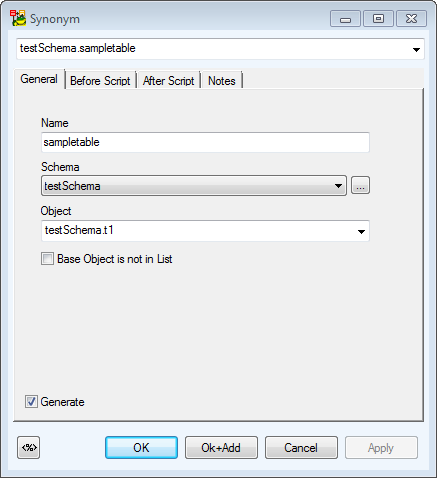

Synonyms

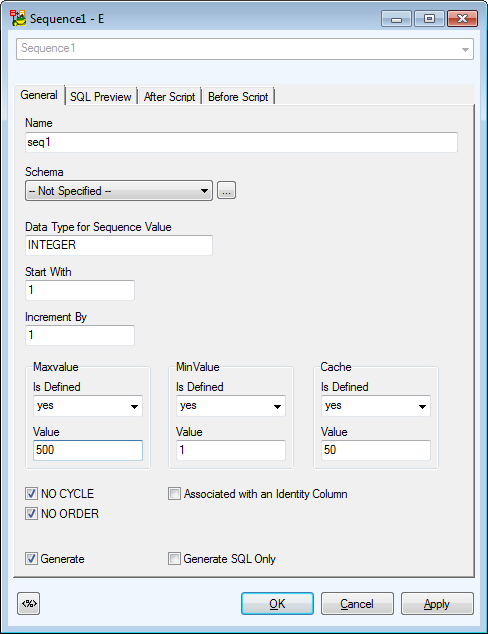

Other objects:
