Safe Mode in NetVault Backup

Searching for files in savesets

The Search option on the Create Restore Job — Choose Saveset page allows you to find specific files or data items without opening any savesets or browsing through their contents. You can use filenames or regular expressions to find the data items that you want to restore.

To configure or enable the catalog search, click the bulb icon shown near Search button on the Create Restore Job — Choose Saveset page.

1
On the Create Restore Job — Choose Saveset page, click Search.
2
In the Search for files in savesets dialog box, configure the following options:
Search String: Type the search string.
Regular expression search: To use POSIX (Portable Operating System Interface for Unix) regular expressions in the Search String box, select this check box.
The catalog search supports the regular expression syntax used by Elasticsearch. For more information, see https://www.elastic.co/guide/en/elasticsearch/reference/current/query-dsl-regexp-query.html
Use legacy search method: This check box is displayed if both cataloged and non-cataloged savesets are included in the search.
3

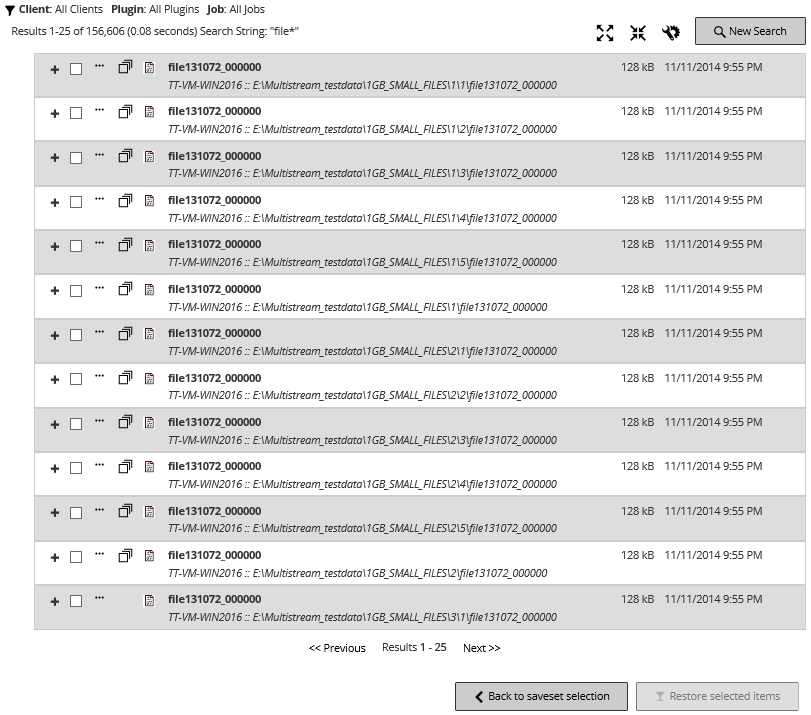

To search the data items in one or more specific savesets, select the desired saveset (s) and click Search. If you do not select any saveset, then all savesets are included in the search. On the Search Results page, you can view the specified files or data items. The following search results page is displayed when catalog search is configured and enabled on your NetVault Backup system.
Filter icon: To filter the records displayed in the search results table, click this icon. For more information on filter options, see Table 14.
Expand icon: To expand all result items, click the expand icon shown on top of the results table.
Collapse icon: To collapse all result items, click the collapse icon shown on top of the results table.
Settings icon: To set the number of search results per page, click the settings icon. ‘Settings’ drawer is displayed on the right- side of the page. Type or select the value and click OK. By default, the page displays 25 records. You can view a minimum 10 and maximum 100 records on the Search Results page.
New Search button: To search the data items in the selected saveset, click New Search. In the Search for files in savesets dialog box, configure the following options and click Search:
Search String: Type the search string.
Regular expression search: To use POSIX (Portable Operating System Interface for Unix) regular expressions in the Search String box, select this check box.
5

Viewing media list

The Media List option on the Create Restore Job — Choose Saveset page lets you view information about the media items used to store a backup. You can view details about the data segments and index segments for a backup.

1
On the Create Restore Job — Choose Saveset page, select the applicable saveset.
2
In the Saveset Information area, click Media List.
Backup size: This area shows the total size of the saveset in number of bytes
Data segment table: This table shows information about the media items that contain the data segments. You can view the following details: media label, media group label, stream ID, starting byte number, ending byte number, and media location
Index segment table: This table shows information about the media items that contain the index segments. You can view the media label and media location.
4
Click Close to close the dialog box.

Creating Source Sets for restore jobs

A Source Set is used to specify source device options. You can create Source Sets for restore jobs from the Create Restore Job page.

1
Start the restore job wizard, and click Create New next to the Source Storage list.
2
On the Create Restore Source Set page, click Device Selection, and configure the following settings.

Any Device

This option is selected by default. If you do not specify a device type, NetVault Backup uses any suitable device for a job.

Specify Device

To use particular devices for a job, select this option. In the associated box, clear the check marks for the devices that you do not want to use. When you remove a library, the associated drives are automatically removed.

Local Drives Only

To use only devices that are locally attached to the target client, select this check box.

3
Click Save, and in the Create New Set dialog box, type a name for the set.
Click Save to save the Restore Source Set.

Creating Restore Advanced Options Sets

A Restore Advanced Options Set is used to specify restore type, pre- and post-script, and other advanced options. You can create a Restore Advance Options Set from the Create Restore Job page.

1
Start the restore job wizard, and click Create New next to the Advanced Options list.
3
Click Save, and in the Create New Set dialog box, type a name for the set.
Click Save to save the Restore Advanced Options Set.
