Batch Generation of Automatic Diagrams
Batch Generation of Automatic Diagrams
The diagram designer generation can be automated. You first need to create your diagram design layout, make sure it’s working correctly by running it manually. Once checked you will be able to prepare the automatic execution.
To start configuring the batch mode:
1. Launch the “CMD” tool
2. Browse to your Diagram Designer installation directory
3. Launch the following command
DiagramDesigner.exe -h
The following usage will appear:
DiagramDesigner.exe -connection <connection_to_database> -model <model_filename>
-username <username> -password <password> -id <item_id>
Below details the arguments available:
|
Argument Key |
Description |
|
-connection |
The name of your connection used to connect Corporate Exchange |
|
-model |
The filename of the model you are going to use |
|
-username |
The Username to connect Corporate Modeler Suite |
|
-password |
The password associated with the username, leave “” if the password is empty |
|
-id |
The id of the design layout, accessible through the properties of the design layout which is available in the Diagram Designer Object Type |
|
|
Notice that you can use double quotes around your arguments if required. |
Related Items
Log Files
The Diagram Designer logs some information depending on the level of log requested.
This level can be configured in the DiagramDesigner.exe.config file which is located next to the DiagramDesigner.exe application.
Values can be INFO or DEBUG.
Related Items
Batch Generation of Automatic Diagrams
Additional Layouts
Additional Layouts
Jump and Merge Layout
As of the 2018 release of Evolve, Diagram Designer is now capable of performing a "Jump and Merge". This popular add-on layout for Evolve Designer, has been brought to diagram designer, in order to make it possible to build more complex diagrams.

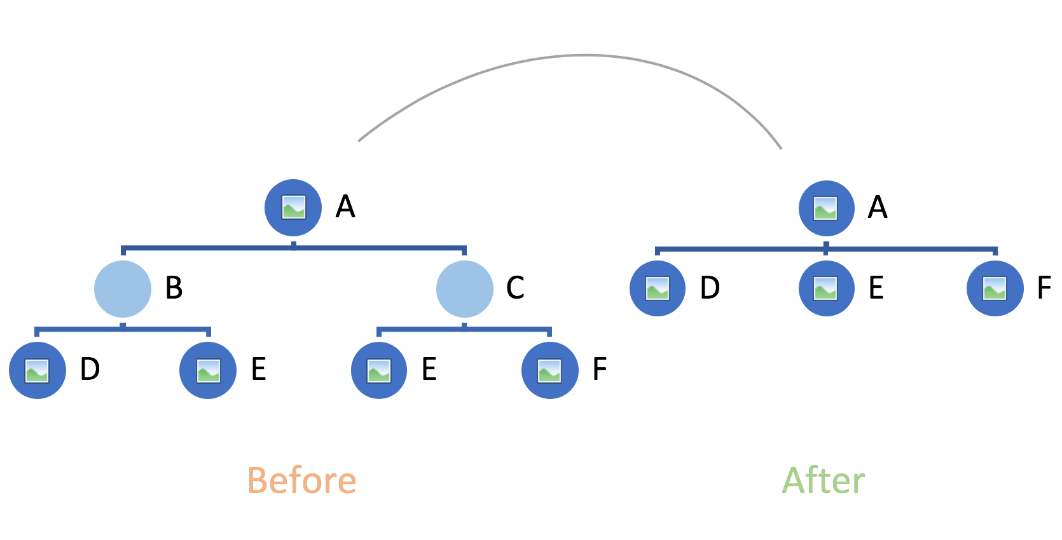

With this layout the objects of the selected associations will not be put on the diagram. Instead, their parent object(s) will be linked directly to their children. For example, if we have 3 levels and we switch the layout of the 2nd one to “Jump & Merge” this is what we’ll get:

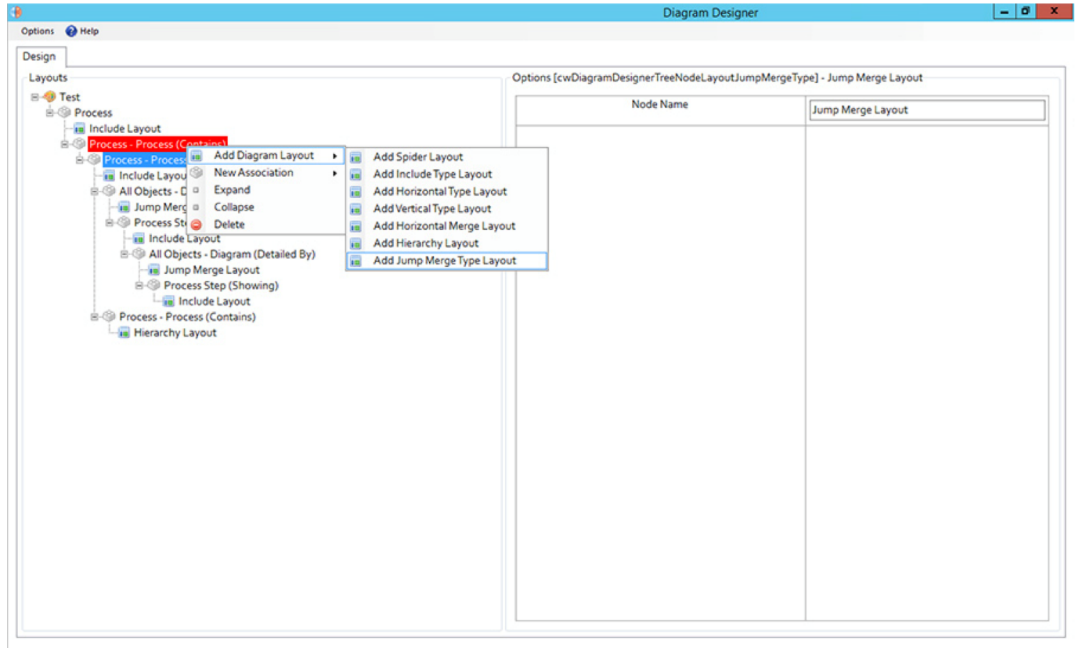

Jump and merge can be added to your diagram, in the same way that other layout controls are applied.

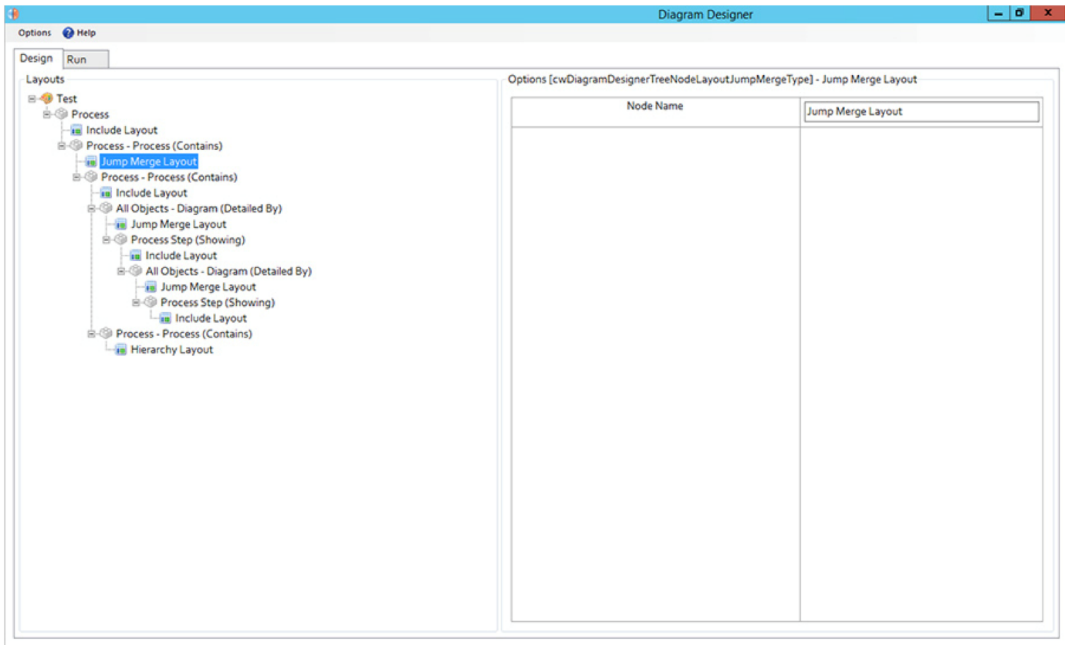

The layout does not have any user defined properties other than the name. See below:
