Projects are used to group multiple models, files and other items.

To create a new project

Check Create TDM Directory Structure to create a project with a predefined directory structure

Check Use Version Control to create a version controlled project. In the following steps you will need to configure it in order to create a new project. You can set up Version Control system for your projects anytime later

To select a version control system

Select a type of version control system:
Git - Enter the path to the Git client executable (e.g git.exe)
Subversion - Enter the path to the svn client executable (e.g svn.exe)
- Check Use Read Only Locking Mechanism to enable locking files (set read-ony attributes to them)
- Check Non Interactive to disable all interactive prompting
- Check No Authentication Cache to not save authentication tokens into cache

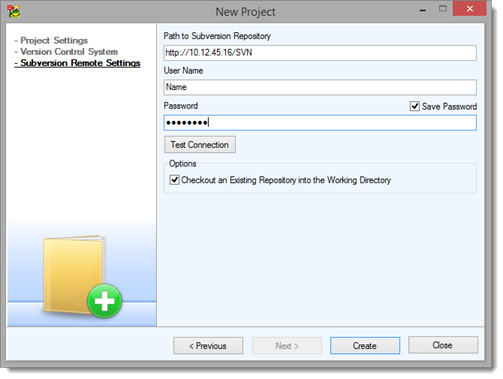

To setup your repository

Subversion - Enter the path (server address) to your subversion repository
- Enter your User Name and Password
- Check Checkout an existing repository into the working directory to checkout the files into your project folder

Git - Check Initialize Local Repository to initialize your local Git repository
- Check Configure Remote Repository to enter details of your remote Git repository, click Next
- Enter the path to your local Git repository and check Clone an Existing Repository to the Working Directory if you want to pull the latest files from your remote repository

NOTE: The working directory for your SVN/git repository is the root folder of your new project.

Add Existing Models to Project

When you create a new project, you might want to add already existing models to it. This can be achieved in two ways:

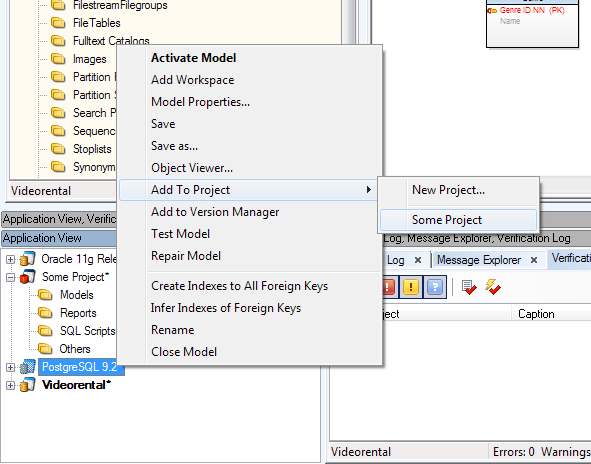

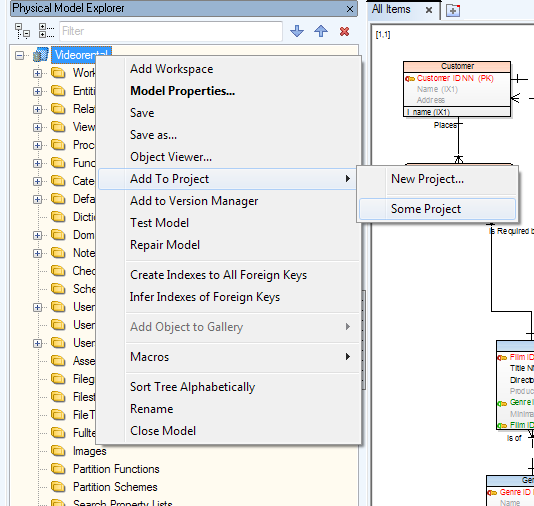

In Application View or Model Explorer right-click a model and select Add to Project | *Project Name*.

Project Add Model dialog displays and you can decide where to save the model.

In Application View, right-click your project and select Add Opened Model
Project Add Model dialog displays and you can choose from currently opened models and specify their location in the Project structure.

Generate Project Report

Now you can easily create a report for your Toad Data Modeler projects.

To create a project report

Right-click a project in Application View and select Report
Select the desired format for your report
Select the destination:
- Intelligence Central
- A designated folder

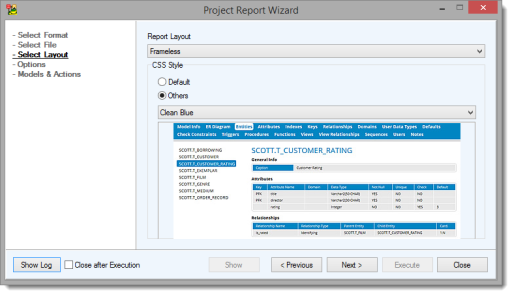

Choose your layout and style for the report and preview the look below
In Options select what you want to include in your report
In Models & Actions select which models you want to include and which Model Action you want to perform
After clicking Execute the report will be created in Intelligence Central or your local destination folder
