IBM DB2 z/OS 10

Index

Business Time Period added in Entity Properties dialog, tab General.

Attribute

New data types Timestamp(x), Timestamp with time zone, Timestamp(x) with time zone.

Key

Column Names Business Time Without Overlaps box added in Key Properties dialog, tab Attributes, and Index Properties dialog, tab Items.

Trigger

Function

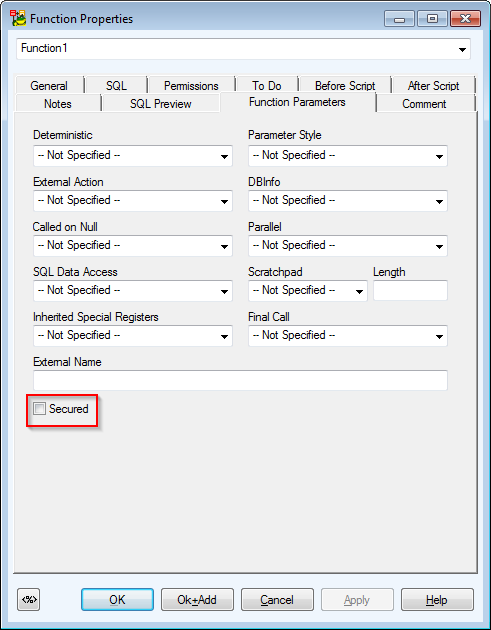

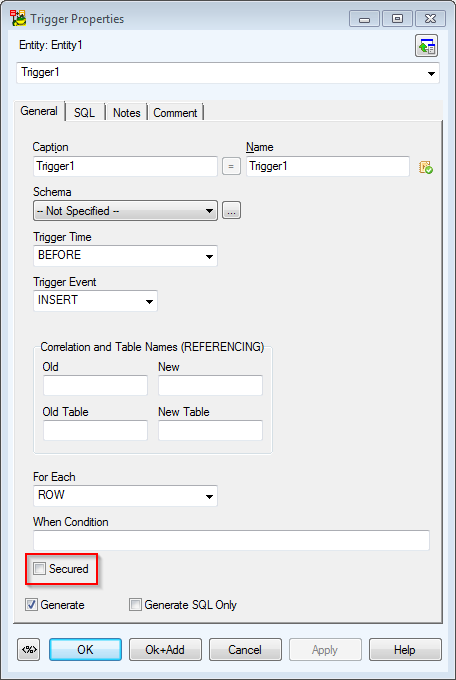

Checkbox SECURED in Trigger Properties dialog and Function Properties dialog for function types External Scalar and Table and SQL.



Dictionary Type

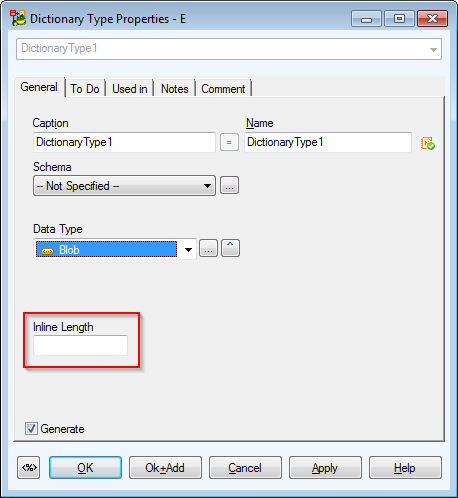

Inline Length parameter for BLOB, CLOB and DBCLOB user data types/dictionary types.



Reverse Engineering

See Reverse Engineering - DB2 z/OS v. 9 for more information.

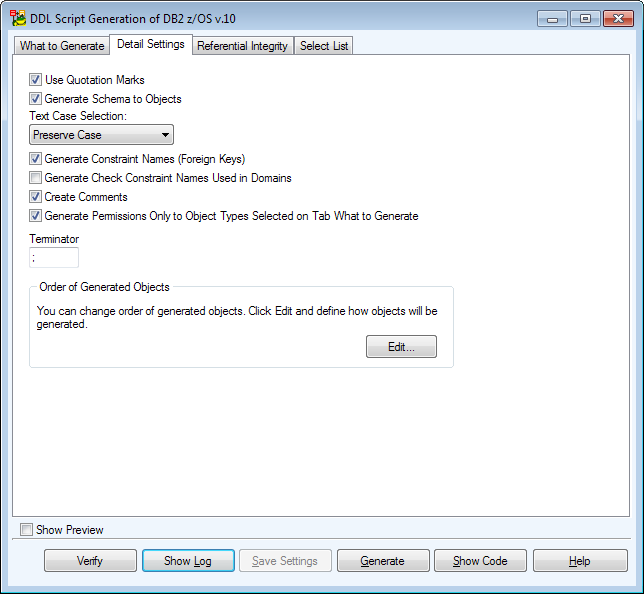

Script Generation

IBM DB2 z/OS 11

Index

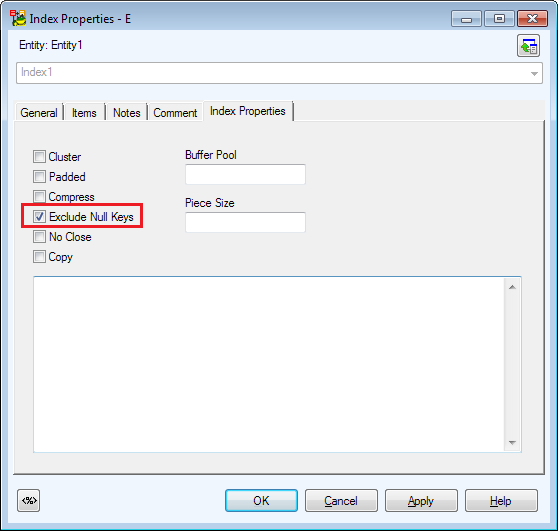

New option to Include/Exclude Null Keys

Dictionary Type

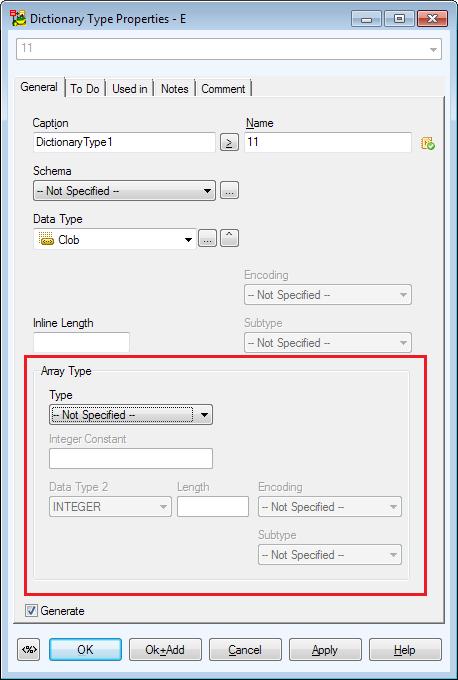

New Type available for Dictionary Types - Array Type.
