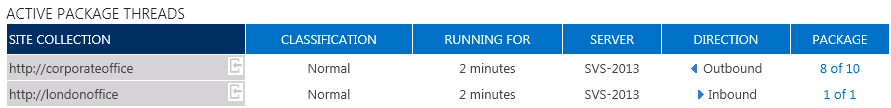

Active Package Threads

The Active Package Threads section provides an overview of the site collections that are currently being used to process replication.

METALO~3_img141

The following table provides an overview of the details available for active package threads:

Heading	Description
Site collection	The name of the site collection.
Classification	The classification set for the site collection.
Running For	The amount of time that the site collection has been actively running threads.
Engine	The engine the site collection is located on.
Direction	The direction of package processing for this site collection on this web application.
Package	The number of packages currently being processed. Selecting a hyperlink under packages will take you to the package details page for that site collection. See the Package Details section below for more information.

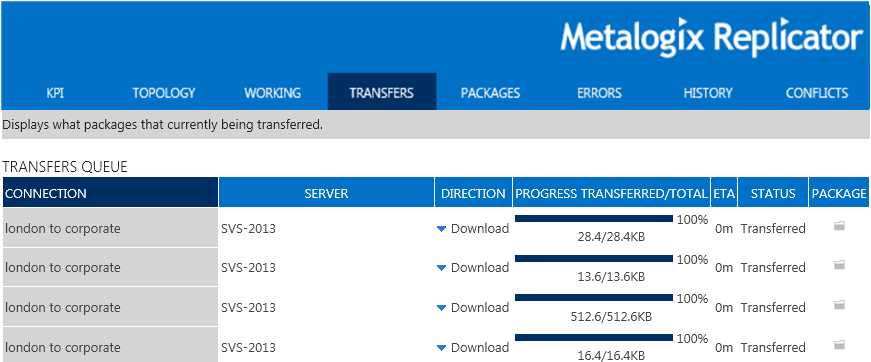

Transfers

The Transfers tab of the Monitor Replicator page displays the packages that are currently being transferred.

METALO~3_img142

The following table provides an overview of the information available for queued transfers:

Specification	Description
Connection	The connection that the transfer is occurring on.
Server	The server that the transfer is occurring on.
Direction	Whether the transfer is being downloaded or uploaded.
Progress Transferred/Total	The progress of the transfer.
ETA	Estimated time of completion for the transfer.
Status	The current status of the transfer.
Package	The package containing the transfer. Selecting a hyperlink under packages will take you to the package details page containing this transfer. See the Package Details section for more information.

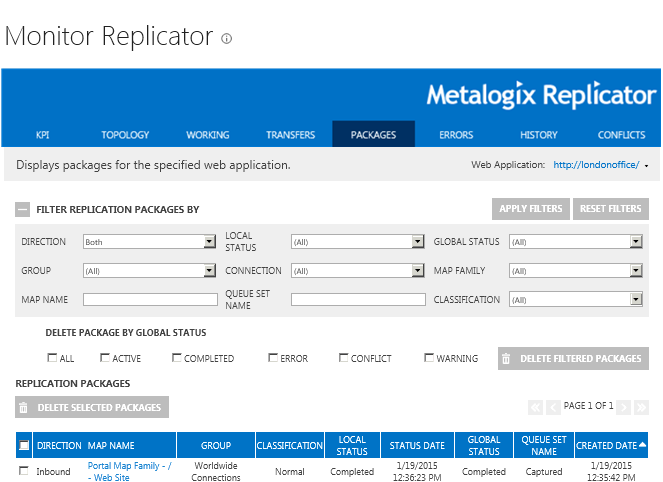

Packages

The Packages tab of the Monitor Replicator page allows you to view and manage the status of Replication Packages.

METALO~3_img143

Web Application

The list contains all configured Web Applications. Select a web application.
