Configure Replication Map Settings

In order to Configure Replication Map Settings do the following.

1.On the Manage Map Families page, click View Maps next to the map you wish to configure. This will open the Manage Map Family page for the selected map.
Configure Replication map settings 2

2.On the Manage Map Family page for your selected map, select the (...) button next to your web application map, and click Configure Map Settings. This will open the Configure Replication Map Settings page.

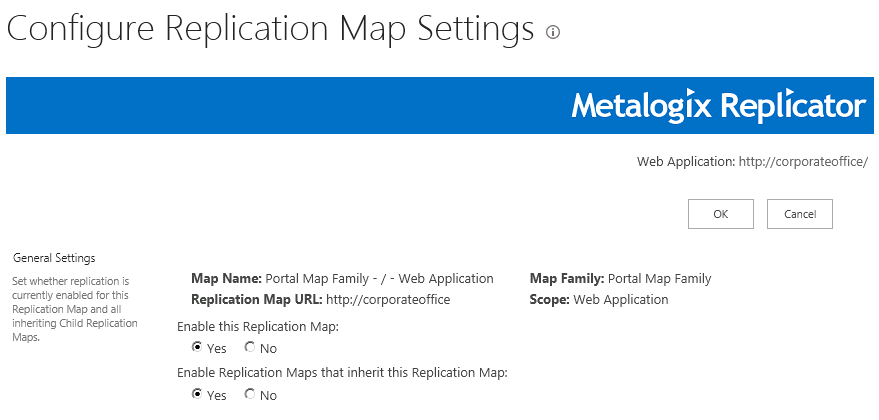

3.The Configure Replication Map Settings page displays information about the Replication Map, such as the Replication Map name, the Map Family it belongs to, its scope, and its root Replication Map URL. This page also allows you to specify whether the Map is enabled, and its inheritable status. Depending on the scope, you can specify the Replication Events, Connections, and column matching enabling.

METALO~3_img84

General Settings

The General Settings section displays the following information:

Statistic	Description
Map Name	The Map name is auto generated and based on the Map Family name and scope.
Map Family	The name of the Map Family.
Root Replication Map URL	The URL for the root Replication Map.
Scope	Indicates whether the Map Family was defined for a Web Application, Site Collection, Web Site, or Folder.

Enable this Replication Map

When this parameter is set to Yes, replication is enabled for this Replication Map only. The default is set to the same setting specified on the Configure Map Family page.

Enable Replication Maps that inherit this Replication Map

When this parameter is set to Yes, replication is enabled for all maps which inherit this replication map.
