erwin Evolve 2023.1.0 - General

erwin Evolve Web 2023.1.0 Installation Guide

erwin Evolve Web

Installation Guide

Legal Notice

© 2024 Quest Software Inc.

ALL RIGHTS RESERVED.

This guide contains proprietary information protected by copyright. The software described in this guide is furnished under a software license or nondisclosure agreement. This software may be used or copied only in accordance with the terms of the applicable agreement. No part of this guide may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording for any purpose other than the purchaser’s personal use without the written permission of Quest Software Inc.

The information in this document is provided in connection with Quest Software products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Quest Software products. EXCEPT AS SET FORTH IN THE TERMS AND CONDITIONS AS SPECIFIED IN THE LICENSE AGREEMENT FOR THIS PRODUCT, QUEST SOFTWARE ASSUMES NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NON-INFRINGEMENT. IN NO EVENT SHALL QUEST SOFTWARE BE LIABLE FOR ANY DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE, SPECIAL, OR INCIDENTAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION OR LOSS OF INFORMATION) ARISING OUT OF THE USE OR INABILITY TO USE THIS DOCUMENT, EVEN IF QUEST SOFTWARE HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Quest Software makes no representations or warranties with respect to the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and product descriptions at any time without notice. Quest Software does not make any commitment to update the information contained in this document.

If you have any questions regarding your potential use of this material, contact:

Quest Software Inc.

Attn: LEGAL Dept

4 Polaris Way

Aliso Viejo, CA 92656

Refer to our Web site (https://www.quest.com) for regional and international office information.

Patents

Quest Software is proud of our advanced technology. Patents and pending patents may apply to this product. For the most current information about applicable patents for this product, please visit our website at https://www.quest.com/legal.

Trademarks

Quest, the Quest logo, and Join the Innovation are trademarks and registered trademarks of Quest Software Inc. For a complete list of Quest marks, visit https://www.quest.com/legal/trademark-information.aspx. All other trademarks and registered trademarks are property of their respective owners.

IMPORTANT, NOTE, TIP, MOBILE, or VIDEO: An information icon indicates supporting information..

CAUTION: A CAUTION icon indicates potential damage to hardware or loss of data if instructions are not followed.

erwin Evolve Web Installation Guide

Updated - March 2024

Version - 2023.1.0



Requirements and Preparation

Installation Overview

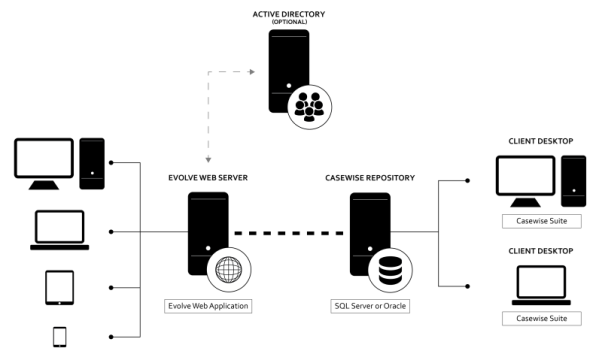

Diagram  Description automatically generated

A typical installation of Evolve requires the following components:

  • A Web Server - used to host the Evolve Web Application.

  • A Database Server - used to host the Evolve Repository.

  • An Evolve Suite Client – used to create and manage models in the repository.

  • Evolve Clients – used to connect to web sites running on Evolve web sites.

The instructions in this document relate only to the setup and configuration of the Evolve Web Application on the web server machine.

System Requirements

Web Server Requirements

The web server you plan to run Evolve from must meet the following requirements.

Type

Required/REcommended

Notes

Memory

Min. 8GB (Quad Core)

Min. 12GB (6 Cores)

Memory usage increases along with the number of people accessing an evolve site. you may therefore require additional memory with higher numbers of users.

Processor

a modern server-class processor such as quad core i7



Available Disk SPace

40GB



Operating System

Only the following are supported:

  • Windows Server 2019

  • Windows Server 2022

The server should have the Role of Web Server enabled.

See Appendix A – Pre Install Components: Web Server (IIS) Features for more detail.

.NET Frameworks

  • 4.8.0 (provided)

All necessary lower versions of .NET are included in this package. NB: 3.5 should also be selected.

Software

  • Microsoft Internet Information Services (IIS) 10.0

  • IIS Manager

The following MIME Type extensions are required in IIS:

  • .eot /.json /.ttf /.woff /.woff2

See Appendix C – IIS MIME Type Support.

UserS and PERMISSIONS

  • The user who installs Evolve Web Platform needs Administrator rights on the web server machine.

  • The Evolve Designer user must be able to run the application as Administrator for some functions.

  • So Evolve Web Platform can connect to the Evolve Repository, you need the login details of a Evolve System Manager.



If any user accessing the Evolve Web Platform sites using Internet Explorer, you must ensure that the name of the server you installed Evolve on must not include any underscores.



Any issue with Internet Explorer, that mean there is an underscore in the name and thus user faces issue while logging.
