erwin Evolve 2023.1.0 - General

Information Checklist

Please ensure you capture all the details needed for the Evolve Designer user to continue with the server configuration. See Appendix B – Post Install Information Checklist for details.

Appendix A Pre Install Components

Installation of the Web Server (IIS) Role is required prior to Evolve installation.

To install the IIS Role:

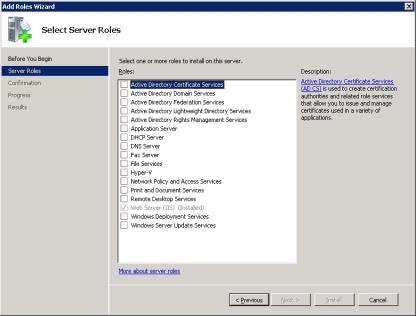

  1. Navigate to the Add Roles Wizard and select the Server Roles option.

  2. A list of Roles with corresponding checkboxes will display:

Graphical user interface, text, application  Description automatically generated



  1. Check the Web Server (IIS) box.

  2. Press the Next button.

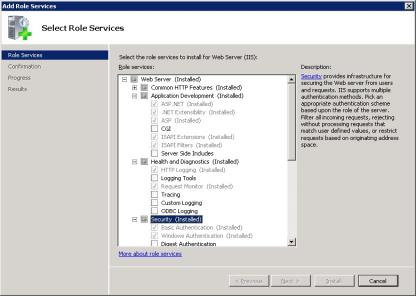

    • The Web Server (IIS) role will expand to list the different features to be installed:



Graphical user interface, application  Description automatically generated

  1. Check the related checkboxes to install the following features:

Application Development Features:

  • .NET Extensibility 4.7 (or above)

  • .NET Extensibility 3.5

  • ASP.NET 4.7 (or above)

  • ASP.NET 3.5

  • ISAPI Extensions

  • ISAPI Filter

  • WebSocket Protocol (for the Diagram Editor)



Security

  • Basic Authentication

  • Windows Authentication

  • Request Filtering

Performance Features

  • Dynamic Content Compression

Static Content Compression



Common HHTP Features:

  • Static Content

  • Default Document

  • Directory Browsing

  • HTTP Errors

  • HTTP Redirection



Health and Diagnostics

  • HTTP Logging

Appendix B Post Install Information

In order to create an Evolve Site, the following information gained from the installation needs to be available to the Evolve Administrator:

Type

Description

Required for

Deployment Type

IIS USer

The Username and Password of a User of the web server machine that the Evolve application can run as.



This User must have Administrative rights on the web server machine.



Note: When Active Directory
Authentication is used, this IIS User must be part of the domain.

IIS Configuration when Creating a Site (post installation), or during manual setup of IIS.

Dynamic

Static

CW System Manager User Account

When running Dynamic Sites you must enter the details of a Evolve System
Manager User.

This account is used by Evolve to access the repository.

Dynamic

ACTIVE DIRECTORY USER

The Username and Password for a domain user which can read the Active Directory.

Only required if
Active Directory Authentication is to be used.

Dynamic

Active Directory connection path

The path to connect to the Active
Directory.

Only required if
Active Directory Authentication is to be used.

Dynamic

Active Directory Social User grouP

The name of the Active Directory group used for Social Users.

Only required if
Active Directory Authentication is to be used.

Dynamic

Active Directory Contributor GROUP

The name of the Active Directory group used for Contributing Users.

Only required if
Active Directory Authentication is to be used.

Dynamic

active directory Diagram GROUP

The name of the Active Directory group used for Diagram Editor users.

Only required if
Active Directory Authentication is to be used.

Dynamic

active directory Static GROUP

The name of the Active Directory group used for Static Site users.

Only required if
Active Directory Authentication is to be used, and Static Authentication is enabled.

Static

Appendix C IIS MIME Type Support

Your web server machine must be configured to understand some specific file formats used by Evolve Web Platform.

You can do this task now, at the Default Web Site level in IIS, or you can do this later for the specific Evolve application, once the Evolve Administrator has created it.

To specify the new MIME Types:

  1. In IIS Manager’s left-hand pane, select the Default Web Site node

  2. Ensure you have the central pane set to Features View, then double-click MIME Types in the IIS section

The MIME Types settings are displayed

  1. Check the list of extensions that are already configured and see if any of the following are missing:

    • .eot

    • .json

    • .ttf

    • .woff

    • .woff2

  2. For each extension that is not already configured, do the following:

  1. Right-click in the central pane and select Add…

  2. Enter the following details, depending on which you need to add

File Name Extension

MIME Type

.eot

application/octet-stream

.json

application/json

.ttf

application/octet-stream

.woff

application/font-woff

.woff2

application/font-woff2



  1. Click OK

  1. Repeat steps a to c as required and then close IIS Manager.
