NetVault 12.2 - Administration Guide

Introduction Getting started Configuring clients Managing catalog search Configuring storage devices Backing up data Managing policies Restoring data Managing NetVault Backup dashboard Managing jobs Monitoring logs Managing storage devices
Monitoring device activity Managing disk-based storage devices in list view Managing disk-based storage devices in tree view Managing the Snapshot Array Manager Managing tape libraries in list view Managing tape libraries in tree view Managing tape drives in list view Managing tape drives in tree view Adding shared devices
Managing storage media Managing user and group accounts Monitoring events and configuring notifications Reporting in NetVault Backup Working with client clusters Configuring default settings for NetVault Backup
About configuring default settings Configuring encryption settings Configuring plug-in options Configuring default settings for post-scripts Configuring default settings for Verify Plug-in Configuring Deployment Manager Settings Configuring Job Manager settings Configuring Logging Daemon settings Configuring Media Manager settings Configuring Network Manager settings Configuring Process Manager settings Configuring RAS device settings Configuring Schedule Manager settings Configuring Web Service settings Configuring Auditor Daemon settings Configuring firewall settings Configuring general settings Configuring security settings Synchronizing NetVault Time Configuring default settings for global notification methods Configuring the reporting utility Configuring NetVault Backup WebUI default settings Configuring NetVault Backup to use a specific VSS provider Configuring default settings using Txtconfig
Diagnostic tracing Managing diagnostic data Using the deviceconfig utility NetVault Backup processes Environment variables Network ports used by NetVault Backup Troubleshooting

Viewing event logs

You can view the event log messages from the View Events page.

2
On the View Events page, you can view the following information:
Date: Date and time when the event was raised
Class: Event class
Event: Event type
Message: Detailed log message or description
To set the filter options (For more information on table filter options for View Events page, see Table 9), view the page size setting, column sort order, applied filters in the table, export the records, or edit table settings, click the icons at the lower- right corner of the table.
5
The View Events page loads a maximum of 10,000 records initially. The total number of records fetched is displayed at the lower-right corner of the table. You can click Load more to load the next set of records, if available. Each load action fetches a maximum of 10,000 records. This button is disabled if there are no more records to load.
6
To stop or resume live updates, click the Pause or Resume Live Updates button.

Using global notification methods

This section includes the following topics:

About global notification methods

Global notification methods provide different mechanisms for sending notifications when an event occurs.

The available methods include the following:

Sysop Email: Use this method to send an email notification to the Administrator when an event occurs.
Print Report: Use this method to print a report after it is successfully generated from the View Reports page. This method can only be used for Report Job events.
Run a Job: Use this method to run a job when an event occurs.
SNMP Trap: Use this method to send SNMP traps (notification) to a network manager host when an event occurs.

Setting up a global notification method

1
In the Navigation pane, click Configure Notifications.
2

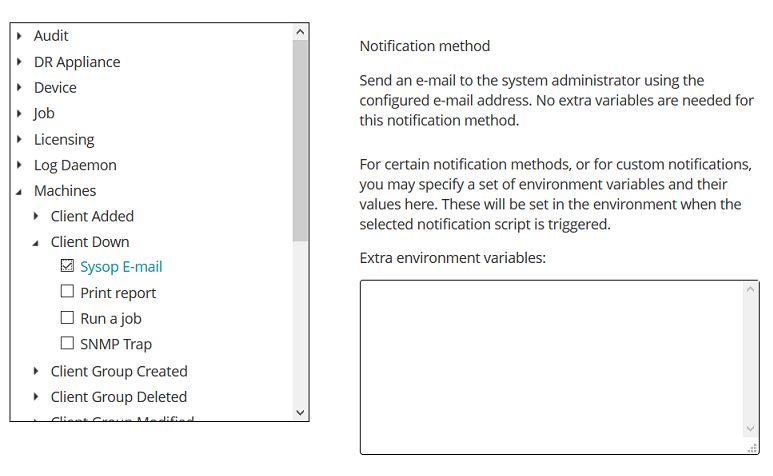

On the Editing Global Notification Profile page, open the event class, and then open the event type that you want to be notified about.

Sysop Email

Select this method to send an email notification to the Administrator (Sysop) when the event occurs.

Before you can use this method for sending notifications, you must complete the following tasks:

Print Report

Select this method to print a report after it is successfully generated from the View Reports page. This method can only be used for Report Job events.

On Linux-based NetVault Backup Servers, no additional configuration is required to use this method. The printer set up as the default printer for the system is used to print the report.

On Windows-based machines, you must do one of the following:

Run a Job

Select this method to run a NetVault Backup job when the event occurs.

To use this method, you must do the following:

Set the JOBID variable in the Extra environment variables box:

SNMP Trap

Select this method to send SNMP traps (notification) to a network manager host when the event occurs.

Before you can use this method for sending notifications, you must complete the following configuration tasks:

Copy the file nvnotifications.mib to the “.mib” files directory on the host system running the network management software.
The “.mib” (Management Information Base) file describes the format of SNMP Traps that NetVault Backup sends. You can find nvnotifications.mib in the etc directory under the NetVault Backup installation directory. For more information about the location of the “.mib” files on the host, see the relevant network management software documentation.
4
Click Save to save the global notification profile.
