Overview

Overview of interaction between Foglight components

Foglight® consists of the Foglight Management Server (FMS), a database repository, and a set of cartridges. Foglight relies on a browser-based user interface and is controlled via role assignments in the Foglight security model. The Foglight Web application runs in an Apache Tomcat® server. Users interact with the FMS Web application via an HTTP or HTTPS connection.

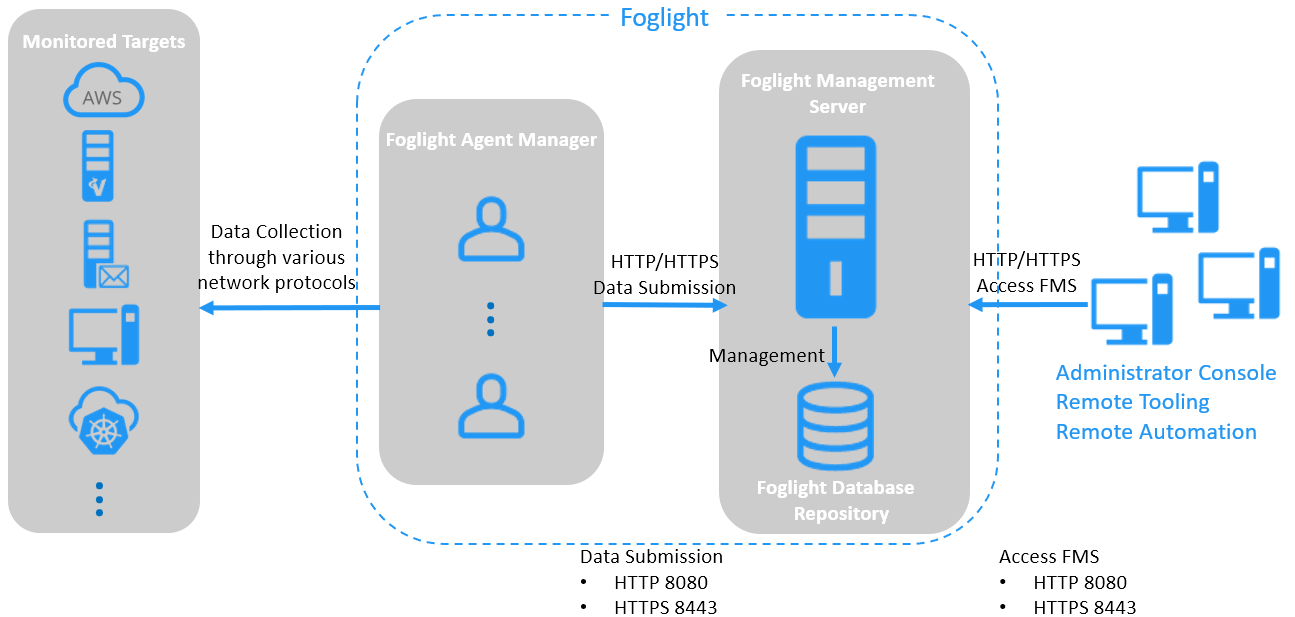

Figure 1. Foglight Components Overview

Overview of interaction between Foglight components

Overview

Figure 1. Foglight Components Overview

Foglight Management Server default port assignments

The Foglight installation process allows you to configure port assignments. The default ports are displayed during installation.

Table 1. FMS default port assignments
Port Name	Port Number	Outgoing/Incoming
Embedded DB	TCP 15432	Outgoing
HTTP	TCP 8080	Incoming
HTTPS	TCP 8443	Incoming
High Availability	UDP 45566 TCP 7800	Incoming/Outgoing
Federation RMI	TCP 1099	Incoming/Outgoing
Federation RMI Service	TCP 4444	Incoming/Outgoing NOTE: If your Federation Master Server is installed behind the firewall, you must configure this port on the Federation Child Server to set up the connection with the server.
QP5	TCP 8448	Incoming/Outgoing
High Availability (HA) refers to running a secondary instance of Foglight as a failover backup server (redundant mode). Foglight listens to the multicast port (45566) only when configured for HA mode.

Foglight default ports

Table 2. Ports used when Foglight is installed with an external database
Port Name	Port Number	Outgoing/Incoming
External PostgreSQL®	5432	Outgoing
Microsoft® SQL Server®	1433	Outgoing
Oracle®	1521	Outgoing
MySQL™	3306	Outgoing

Table 3. Agent adapter ports used when configuring the Foglight Administration Console
Port Name	Port Number	Outgoing/Incoming
Agent Manager	8080	Incoming
Agent Manager over SSL	8443	Incoming
Java EE Technology Agent	41705	Incoming
