Foglight Evolve 9.3 - Foglight Evolve Network Topology Guide

Overview

Foglight® consists of the Foglight Management Server (FMS), a database repository, and a set of cartridges. Foglight relies on a browser-based user interface and is controlled via role assignments in the Foglight security model. The Foglight Web application runs in an Apache Tomcat® server. Users interact with the FMS Web application via an HTTP or HTTPS connection.

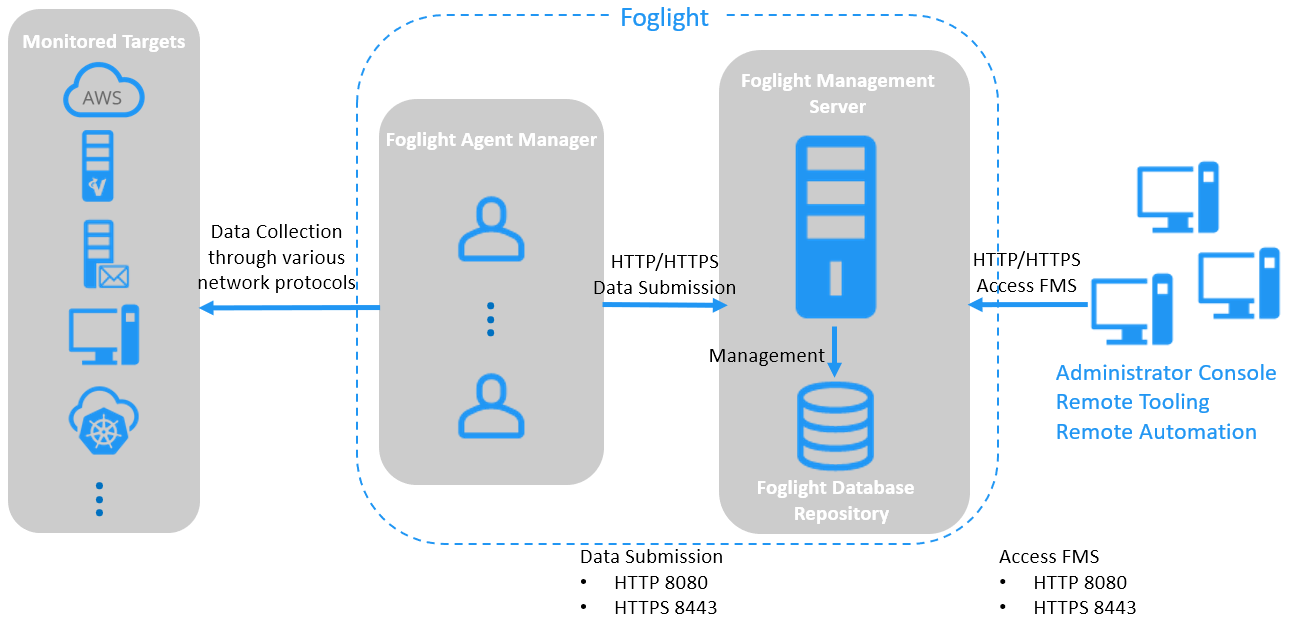

Overview of interaction between Foglight components

Foglight® consists of the Foglight Management Server (FMS), a database repository, and a set of cartridges. Foglight relies on a browser-based user interface and is controlled via role assignments in the Foglight security model. The Foglight Web application runs in an Apache Tomcat® server. Users interact with the FMS Web application via an HTTP or HTTPS connection.

Foglight Management Server default port assignments

The Foglight installation process allows you to configure port assignments. The default ports are displayed during installation.

Foglight default ports
