Schedule

Benchmark Factory allows you to schedule a job to run at a future time. Scheduling allows you to set predetermined dates, recurrences, daily frequencies, and durations of jobs.

Note: When using the recurring option, use Ready Job in place of Run Job.

To schedule a job

1. In the New/Edit Job Wizard, select a test under Workload.
2. Select the Job Setup tab.
3. Select the Schedule tab.
4. Select the Enable Scheduling checkbox.
5. To run the job once, select a date and time to execute the job.
6. To run the job on a recurring basis, select a start date and time, and select the Recurring check box.
   1. Then specify a frequency.
   2. To run the job multiple times per daily, specify options under Daily Frequency.
7. Select an end date, or select the No end date checkbox.
8. Click Save/Close to save your options and close the wizard.

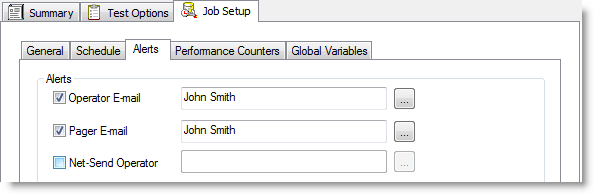

Alerts

Use the Alerts tab to set up automatic notification of job completion.

Note: Some email programs may prompt for send message confirmation. The job will not complete until confirmation is received.

To setup job notification

1. In the New/Edit Job Wizard, select a test under Workload.
2. Select the Job Setup tab.

3. Then select the Alerts tab.



4. Select one or more notification types. Review the following for additional information:

   Operator E-mail	Sends an email containing a file attachment summarizing the results of a job.
   Pager E-mail	Sends notification of job completion.
   Net-Send Operator	Sends a network message to a specific machine notifying that a job is complete.

Performance Counters

Performance counters keep track of statistics during test execution. By default the following performance counters are recorded when a job executes, even though they do not display in the Performance Counter tab for a connection or job.

• AVG_TIME
• BPS
• DEADLOCKS
• TOTAL_ERRORS
• MAX_TIME
• RPS
• TOTAL_BYTES
• TOTAL_ROWS
• TPS
• USERLOAD

You can add performance counters to a connection or a job.

To add performance counters to a connection

1. In the New Connection dialog when creating a new connection (or the Connection dialog for an existing connection), select the Performance Counters tab.
2. To add a new counter, click .
3. Select a computer from the drop-down list.
4. To display counters, expand an object node by clicking the node's down-arrow.
5. Select one or more counters and click Add.
6. When you have finished adding counters, click Close to close the Browse Performance Counters dialog.
7. To delete a counter, select the counter and click .

Global Variables

From the global variable tab, you can add or delete the required variables.

To add a global variable

1. Right-click to display the global variable dialog.

2. Enter the name and value.

3. Click Add.

The new global variable displays.
