Schedule

Benchmark Factory allows you to schedule a job to run at a future time. Scheduling allows you to set predetermined dates, recurrences, daily frequencies, and durations of jobs.

Note: When using the recurring option, use Ready Job in place of Run Job.

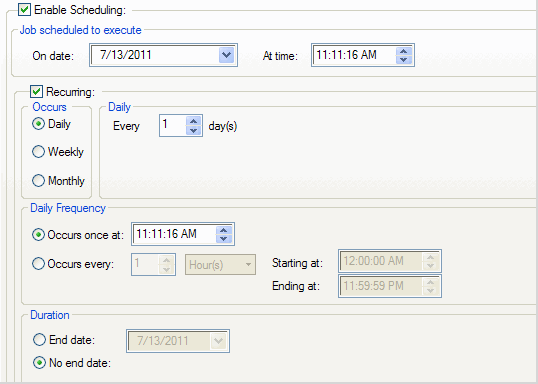

To schedule a job

  1. In the New/Edit Job Wizard, select a test under Workload.
  2. Select the Job Setup tab.
  3. Select the Schedule tab.
  4. Select the Enable Scheduling checkbox.
  5. To run the job once, select a date and time to execute the job.
  6. To run the job on a recurring basis, select a start date and time, and select the Recurring check box.
    1. Then specify a frequency.
    2. To run the job multiple times per daily, specify options under Daily Frequency.
  7. Select an end date, or select the No end date checkbox.
  8. Click Save/Close to save your options and close the wizard.

Alerts

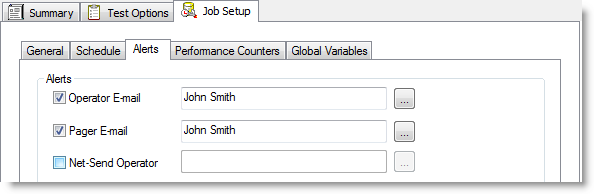

Use the Alerts tab to set up automatic notification of job completion.

Note: Some email programs may prompt for send message confirmation. The job will not complete until confirmation is received.

To setup job notification

  1. In the New/Edit Job Wizard, select a test under Workload.
  2. Select the Job Setup tab.
  3. Then select the Alerts tab.

  4. Select one or more notification types. Review the following for additional information:

    Operator E-mail Sends an email containing a file attachment summarizing the results of a job.
    Pager E-mail Sends notification of job completion.
    Net-Send Operator Sends a network message to a specific machine notifying that a job is complete.



Performance Counters

Performance counters keep track of statistics during test execution. By default the following performance counters are recorded when a job executes, even though they do not display in the Performance Counter tab for a connection or job.

  • AVG_TIME
  • BPS
  • DEADLOCKS
  • TOTAL_ERRORS
  • MAX_TIME
  • RPS
  • TOTAL_BYTES
  • TOTAL_ROWS
  • TPS
  • USERLOAD

You can add performance counters to a connection or a job.

To add performance counters to a connection

  1. In the New Connection dialog when creating a new connection (or the Connection dialog for an existing connection), select the Performance Counters tab.
  2. To add a new counter, click .
  3. Select a computer from the drop-down list.
  4. To display counters, expand an object node by clicking the node's down-arrow.
  5. Select one or more counters and click Add.
  6. When you have finished adding counters, click Close to close the Browse Performance Counters dialog.
  7. To delete a counter, select the counter and click .

Global Variables

From the global variable tab, you can add or delete the required variables.

To add a global variable

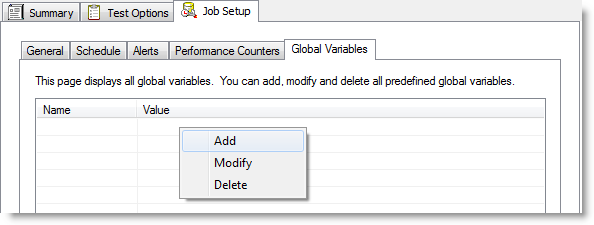

  1. Right-click to display the global variable dialog.

  1. Enter the name and value.

  1. Click Add.

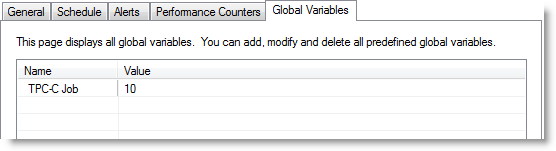

The new global variable displays.
