Introduction

This guide contains information that will help you plan your Archive Shuttle migrations.

Key terms

The following table introduces the terminology that is used throughout Archive Shuttle documentation, videos, and the user interface.

Architecture

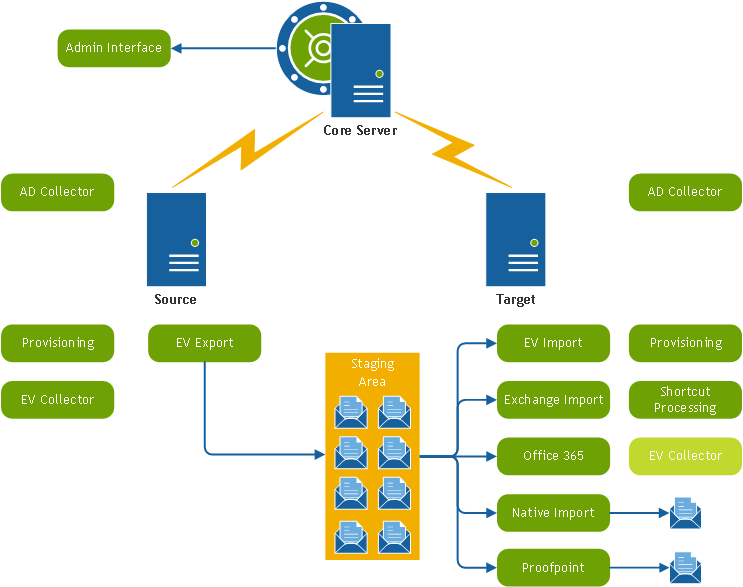

The following diagram shows the Archive Shuttle components:

Archive Shuttle Core

The Archive Shuttle Core consists of three parts:

·Archive Shuttle User Interface

·Archive Shuttle Web Services

·Archive Shuttle Service

These are explained below.

Archive Shuttle user interface (UI)

The main point of interaction with the administrator is through the web-based user interface. It allows access from anywhere within the enterprise by just using a web browser. It is even possible for archive migrations to be performed remotely from outside of an organization; for example, partner-managed migrations.

Using the wide range of options in the Archive Shuttle User Interface, the administrator can configure and manage archive migrations within an enterprise. The interface also provides at-a-glance progress monitoring, as well as reporting.

Archive Shuttle Web Services

All interaction between Archive Shuttle and Archive Shuttle Modules is done through the Archive Shuttle Web Services. All modules communicate with the Web Services using HTTP(s). If HTTPS is to be used, there is additional configuration that needs to be performed.

Archive Shuttle service

The Archive Shuttle Service is a Windows Service which periodically run Archive Shuttle scheduled tasks. These can be database maintenance tasks or other tasks that need periodic execution in Archive Shuttle itself. It also execute database updates over the directory and item databases.

Enterprise Vault to Enterprise Vault

This section explains what the requirements are for an Enterprise Vault (EV) to Enterprise Vault migration, and then covers the basic steps that should be followed to start such a migration.

Stage 1 – Synch

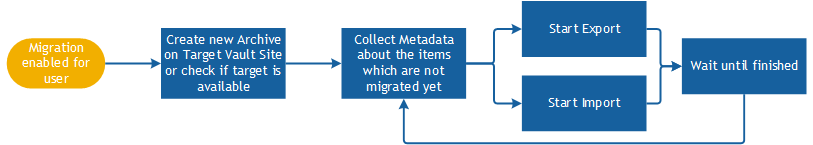

As soon as a user is enabled for migration, the synch process-flow shown above starts.

Archive Shuttle Core sends a command to collect all needed metadata information. The results are reported back to Archive Shuttle Core to allow item level tracking and auditing.

The Enterprise Vault Export and Enterprise Vault Ingest process is then started. This runs continuously in the background until the Stage 2 (Switch) phase is initiated for the user, or a specified “external” trigger is fired (e.g the mailbox has been moved from Exchange 2003 to Exchange 2010).

Stage 2 - Switch

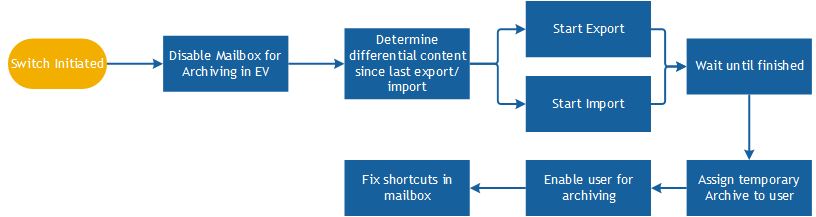

After the Stage 2 ('Switch') phase to the target environment is initiated, the configured workflow starts, and by default determines the gap between the source archive and the last imported item. Archive Shuttle then synchronizes the difference one last time to the target mailbox. The archive then gets assigned to the user and enabled. The last step is to cleanup shortcuts in the target mailbox.

Requirements

The following is a list of requirements.

Basic steps

The following are the basic steps to start this type of migration.

Determining Enterprise Vault archive owner(s)

Archive Shuttle must determine the owner of a mailbox archive. This section explains how this takes place..

Archive Shuttle takes the owner information of a mailbox archive from the Auto Security Descriptor field within the Enterprise Vault Directory database. The first entry for an archive will be the owner. Take the following three examples:

Simple 1

·Bill usage to: somedomain\simple1

·Permissions tab: somedomain\simple with inherited read, write and delete permissions

Archive Shuttle will see the owner of this archive as ‘simple1’.

Simple 2

·Bill usage to: somedomain\simple2

·Manually grant an additional user read, and delete permissions on the archive

·Permissions tab: somedomain\simple2 with inherited read, write and delete permissions. somedomain\someotheruser with manually set read, and delete permissions

Archive Shuttle will see the owner of this archive as ‘simple2’.

Simple 3

·Bill usage to: somedomain\simple3

·Grant full mailbox access via Exchange Management Console or Exchange Management Shell

·Permissions tab: somedomain\simple3 with inherited read, write and delete permissions. somedomain\someotheruser also with inherited read, write and delete permissions

Archive Shuttle will see the owner of this archive as ‘simple3’.

More detail

1.Archive Shuttle resolves the 'Owner' of an Archive as follows:

In the EnterpriseVaultDirectory database, the following SQL is used:

select ADMbxDN, LegacyMbxDN from ExchangeMailboxEntry where DefaultVaultId=@VAULTID

2.Archive Shuttle then does a lookup for the ADMbxDN in Active Directory to get the SID:

LDAP Query:   (ADMbxDN=)

If Archive Shuttle does not find the AD object, the archive will be marked as Ownerless and move to the next option.

3.Archive Shuttle then does a lookup for the LegacyMbxDN in Active Directory to get the SID:

LDAP Query:   (LegacyMbxDN=)

If Archive Shuttle does not find the AD object, the archive will be marked as Ownerless and move to the next option.

4.We then compare the SID’s we got from ADMbxDN and from LegacyMbxDN, and if both of them match, we have an Owner. If they do not match, they will be marked as 'Ownerless' and move to the next option.

5.If we do not find an entry in ExchangeMailboxEntry, we resolve using the BillingOwner or the AutoSecurityDesc:

select SID from Root inner join trustee on OwningTrusteeIdentity = TrusteeIdentity where VaultEntryId=@ARCHIVEID

5.The UserSidHistory table is stored Sid history for each user when they were migrated from AD1 to AD2. This SidHistory attribute is part of Active Directory, and Archive Shuttle collects this data from Active Directory directly.

Example

User1 was migrated from AD1 to AD2,  SidHistory attribute was populated to Active Directory and when the Active Directory sync is performed, table UserSidHistory is populated in parallel. User1 was migrated to another Active Directory, so it is supposed to be the same user and therefore in owner resolution logic is UserSidHistory as the last step. Sometimes, even the migrated user from AD1 to AD2 is not supposed to be the same user as samAccountNames are different in both Active Directories. In this case, owner resolution will take AD2 user as the owner which could be wrong in some special situations.

Workaround

As a workaround, you can:

§remove SidHistory parameter from Active Directory, and allow Archive Shuttle to synchronize Active Directory entries (recommended option), run Enterprise Vault collection, to assign correct users in ContainerToUser table

§use the SQL to assign HistoryUserSid instead of actual Sid, example of such script is below:

--update ContainerToUser, take UserHistorySid and assign to Container type 1 (EV containers only)
SET NOCOUNT OFF;
declare @sid varchar(128)
DECLARE ITEM_CURSOR CURSOR FOR
Select UserSid From ContainerToUser a
inner join [dbo].[Container] b on a.ContainerId = b.ContainerId and ContainerTypeId = 1
OPEN ITEM_CURSOR;
FETCH NEXT FROM ITEM_CURSOR INTO @sid
WHILE @@FETCH_STATUS = 0
BEGIN
update x set UserSid = (SELECT UserHistorySid FROM [dbo].[UserSidHistory] where UserSid = @sid)
from [dbo].[ContainerToUser] x
where UserSid = @sid
print 'Updated containerid ' + @sid;
FETCH NEXT FROM ITEM_CURSOR INTO @sid;
END;
CLOSE ITEM_CURSOR;
DEALLOCATE ITEM_CURSOR;

·remove entries from UserSidHistory table, disable Active Directory sync to avoid entries are coming back with next  Active Directory sync, run Enterprise Vault collection to assign correct users in ContainerToUser table

General considerations

The following general considerations should be taken into account for this type of migration:

·Ingest speed is likely to be reduced versus the speed of export since ingesting is also going to place a load on the indexing engine on the target environment. In general do not expect the export and ingest speeds to be comparable.

·When migrating from a pre EV 10.0.3 system extraction of data may be slower than expected if Enterprise Vault Collections have been used. Access to the data inside the CAB file is single threaded. This issue does not exist in Enterprise Vault 10.0.3 and later.

·An issue is currently being investigated by Symantec. Items extracted from EV 9, may not be ingested into EV 11.0.1. This affects only a small number of items. This may be addressed in the future by Symantec.

·EVPM may have difficulty in connecting to, and processing, mailboxes which are homed on Exchange 2013. This knowledge base article may help.

·EVPM may need to have the DS Server registry key set. This knowledge base article may help.

Migrating an archive from Enterprise Vault to Enterprise Vault

For this scenario, the migration takes place between two vault stores in the same Enterprise Vault environment.

Prerequisites

The following steps must be completed before the migration begins:

·Two or more vault stores must exist in the Enterprise Vault environment.

·All modules must be enabled.

·Appropriate Active Directory domains must be enabled for scanning.

·An Enterprise Vault environment has been added for migration.

·A link database has been created for the source vault store/archives.

·Module mappings are configured for the source and the target vault stores. The source vault store needs to be linked to an EV Export module, and the target needs to be linked to an EV import module. In addition, an EV Provisioning Module needs to be linked to the source vault store and to the target vault store.

·During switchover, both the archiving and storage tasks need to run on the same Enterprise Vault server.

Add retention category mappings

The final stage of the setup of the archive migration is to map retention categories between the source and target environments.

1.Go to Configuration > EV Retention Mappings.

2.Click Create Mapping.

3.Select the values from the drop-down lists, and click [Add] to add the mapping to the retention category grid.

Retention mappings are managed from this screen.

There is an option to use “Add Intrasite Migration Mappings”, which maps each retention category to itself. This can be used in a situation where archives are to be migrated in the same environment. It simply moves the archives to the new location.

Map containers for the test archive

In order to migrate a test archive from one vault store to another, the source and target containers must be mapped. This can be done as follows:

1.Go to Manage > Bulk Mapping.

2.Type the beginning of the archive name in the Container Name filter. Click the button in the far right of the filter row in the Apply Filter column.

3.Select the checkbox next to the test archive, and click Add Mappings.

4.When you’re prompted to select a target container type, select Enterprise Vault, and then click [Next].

5.When you’re prompted to select a target user, select Same User, and then click [Next].

6.When you’re prompted to select a container strategy, select Create new containers, and then click [Next].

7.Select the link that corresponds to where the archive is to be migrated, and then click Next.

8.On the Workflow Policy screen, select Standard Workflow – Within same EV Site (without Archive deletion), and then click [Next]. You don’t need to select the ownerless workflow policy in this situation; it’s optional.

9.For the filter policy, selecIt Default (No Filter), and then click [Next].

10.On the Container Mapping Settings screen, select Enabled for both Migration Status and Item Gathering Status, and then click [Next].

11.If desired, set the mapping’s priority, and then click [Next].

12.Review the summary screen. If everything looks as expected, click [Confirm].

Review Stage 1 status

A few minutes after the mapping is created, the software tells the appropriate modules to start the actions defined in the mapping. Review the progress for this stage of the migration using these steps:

1.Go to Manage & Operations > Stage 1 (Sync Data).

2.Type the beginning of the archive name in the Name filter, and then click the button in the Apply Filter column, found at the far right of the filter row.

3.Once the source archive displays, click the Refresh button to see the status of the export of the archive and the ingestion of data into the target archive. Continue to click Refresh until both export and import are complete.

If more data is added to the source archive, it’s synchronized to the target archive every 24 hours using the connection made with the mapping you created in the previous section. In addition, part of the Stage 2 workflow is to perform a final sync. Therefore, it’s not necessary to ensure that export and import has reached 100% before moving on to the next steps.

Validate exported data

If there’s a large amount of data to export and import, and you want to check the progress, click the Refresh button located on the navigation bar on the Stage 1 (Sync Data) page.

In addition, you can use Windows Explorer to browse the staging area data on the disk and view the folder structure.

Also, the Enterprise Vault Admin Console shows that an archive exists in the source Vault Store and that a new archive has been created in the target vault store. It’s also possible to grant a service account access to the target archive and perform searches on it to make sure the data matches the source archive.

Enable Stage 2

Before you enable Stage 2, the switch-over for the test archive, check the Stage 1 (Sync Data) page for issues like failed item-export or failed item-import.

To enable Stage 2 for the test archive, perform these steps:

1.Open the Stage 1 (Sync Data) page.

2.Select the checkbox next to the test archive, and click Enable Stage 2 in the navigation bar.

3.When you refresh the Stage 1 status, a check mark should display in the Stage 2 Enabled column.

Stage 2 is the “switch-over” to the target environment. A final synchronization of archived items is performed from the source environment to the target environment, before several additional migration tasks are performed.

Review Stage 2 status

After a few minutes, the progress of the test archive migration displays on the Stage 2 page:

1.Go to the Stage 2 (Switch User) page.

2.Type the beginning of the archive name in the Container Name filter. Apply the filter by clicking the button in the Apply Filter column, located at the far right of the filter row.

3.Once the source archive displays, click Refresh to see the progress of the final stages of the archive migration. By default, since the workflow policy that was selected was Standard policy (without archive deletion), these steps are performed:

4.Disable source mailbox from Enterprise Vault archiving.

5.Rename the source archive.

6.Collect any remaining items for migration.

7.Import the remaining items into the target.

8.Zap the mailbox, removing EV settings.

9.Assign the new archive to the user.

10.Enable the mailbox for archiving again.

11.Rename the target archive.

Update all the existing shortcuts to point to the new archive.

Verify data has been migrated

After all Stage 2 operations are complete, the Stage 2 (Switch User) page for the test archive shows a check mark in the Finished column.

In addition, if Outlook or Outlook Web Access is used to access the test mailbox, then all of the archived items are accessible via the new archive. Shortcuts to archived items will work and open correctly.
