Archive Manager for Exchange 8.6 - ArchiveWeb Guide

Keyword Search

Keyword search provides a fast and flexible search for keywords in the email body and attachments of messages in Metalogix Archive Manager for Exchange, and file content in for Metalogix Archive Manager for Files. When both products are installed, you can search for the same keyword across both products.

Prerequisites

·Archive Manager Search is installed

·The post-processing plugin is configured in the Archive Manager Configuration Tool > Post Processing > Post Processing Scopes for both Archive server for Exchange and Archive server for Files depending on the products that are installed.

Steps to use keyword search

The steps described below assume the following default settings on the Profile page of ArchiveWeb.

·Show search field in header is selected which displays the keyword field in the header.

·Keyword is set to Exact phrase. No wildcards are added. The user can add a wildcard manually if needed.

·Set default search scope is set for both Exchange and Files.

The steps are as follows:

1.Log in to ArchiveWeb.

2.Enter a word, phrase or combination of words with logical operators like AND and OR in the keyword field in the header.

3.Press the Enter key on your keyboard.

-or-

1.Log in to ArchiveWeb.

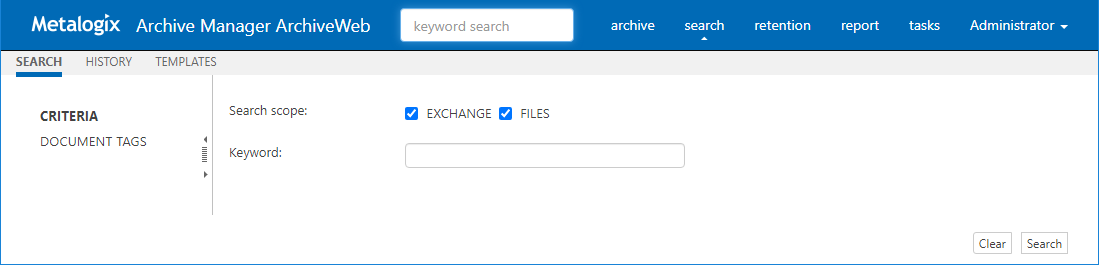

2.Click Search from the main menu. The Search view opens.

3.Click the Search tab and then click Criteria from the navigation pane.

4.For the Search Scope, select the Exchange checkbox.

search-010

5.Click the Search button at the bottom right-hand corner of the page. The search results are displayed on one or two tabs depending on whether one or both products are installed. See Search Results for more information.

·Exchange Search Results

·Files Search Results

Wildcards

Keyword search supports wildcards as described in the table below:

Wildcard

Description

Example

SQL representation

*

A substitute for zero or more characters. You can insert wildcards before, after, or before and after a word.

*.htm

LIKE '%.htm'

?

A substitute for a single character to match

Clas?ic film.mpg

LIKE 'Clas_ic film.mpg'

Document tags

The Document Tags page displays the tags that you can specify in a search. See Tags for more information about setting up document tags. To search for emails that are tagged, do the following:

1.Select one or more document tags.

2.Select a search option as described below:

a.Marked with all selected tags - select this option to search emails which are tagged with all the selected tags.

b.Marked with any selected tag -  select this option to search emails which are tagged with any of the selected tags.

clip0029



Advanced Search

Advanced search uses an expanded set of search criteria with product-specific search capabilities. Advanced search uses three parts to build the search: Criteria, Mailboxes and Document Tags. When all search specifications have been set, click Search in the bottom right-hand corner of the search view.

Criteria

The Criteria page presents the scope, context and email properties to define the search. The scope and context of the search are mandatory. If you have installed Archive Manager for Exchange and Archive Manager for Files on the same server, then advanced search can be used for only one product at a time.

search-020

Steps to search with advanced search criteria

1.Click Search from the main menu. The Search view opens.

2.Click the Search tab and then click Criteria from the navigation pane.

3.For the Search Scope, select the Exchange checkbox.

4.Ignore the Keyword field.

5.Include options allow you to specify the category of documents to search.

·No selection - only archived documents are searched. Previous versions of these documents are not included.

Select one of the following options:

·Search in archived and deleted documents - all documents will be searched. Previous versions of these documents are not included.

·Search in deleted documents - deleted documents and documents that are marked for deletion will be searched. All other archived documents will be ignored. Previous versions of these documents are not included.

Add an additional criteria:

·Search in versions - Previous versions will be included for the document category specified. The match will be shown for each version separately.

6.In the search Criteria pane, click Add new clause ico-080-green-plus and enter the search criteria using the fields as described below:

a.And/Or - select two or more checkboxes to create a nested search phrase with the ico-090-nested-criteria icon as described in the example below.

b.Field - select a property for the email from the dropdown.

c.Operator - select an operator from the dropdown.

d.Value - enter a text value to search. For date fields, enter the date in the format m/d/yyyy.

7.You can remove a specific row by clicking the Delete ico-100-delete. To reset the search criteria, click Clear in the bottom right corner of the window.

Example of a nested search query

Consider the following search request: All email items that were received by David Webb before 10th November 2020 and the subject contains either the words Wealth or Commerce.

Search criteria contains only email properties. Therefore the nested search criteria can be written as follows:

Received Date < 11/10/2020 AND (Subject contains Wealth OR Subject contains Commerce)



The context of the search query is restricted to a single mailbox called David Webb, but there are no restrictions to the scope since All items are required to be searched in the specified mailbox.

To define a nested query in the search page, follow the steps described below:

2.Click Search from the main menu. The Search view opens.

3.Click the Search tab.

4.In the search Criteria pane, click Add new clause ico-080-green-plus and enter the search criteria using the fields as described below:

a.Field: Received Date

b.Operator: <

c.Value: 11/10/2020

5.Click Add new clause and enter the search criteria using the fields as described below:

a.And/Or: And

b.Field: Subject

c.Operator: Contains

d.Value: Wealth

6.Click Add new clause and enter the search criteria using the fields as described below:

a.And/Or: Or

b.Field: Subject

c.Operator: Contains

d.Value: Commerce

7.Since Subject Contains Wealth Or Subject Contains Commerce are nested criteria, select the two checkboxes where the Field value is Subject. Then click the ico-090-nested-criteria icon that is activated. The fields that are grouped are marked as shown on the image below:

search-020

Mailboxes

The Mailboxes page lists the mailboxes that you have been granted the access rights to view and search.

To search for mailboxes:

1.Below each column header is a search text box. Enter a letter or a combination of alphanumeric characters to search for terms in the column. You can enter search criteria for multiple columns. For example, in the image below, the letter D has been added to the search text box below the column header Display Name.

2.Click the ico-110-filter icon to open the search operators list and select a search operator. For example, the search operator Doesn't contain has been selected which excludes all mailboxes that start with the letter D that was entered in the search text box.

3.The list will update as you enter or modify search criteria and search operators. The search settings will persist through a single session and will be reset when you log in again.

clip0070

To sort mailboxes:

If there are too many mailboxes, you can sort or group the list by clicking a column header

To group mailboxes:

1.Drag a column header to the grouping bar just above the list. For example, dragging the Location column header to the grouping bar, groups the mailboxes by Location.

2.Expand each group item to view the mailboxes in that group.

3.Click the up or down icon in the group column header to sort the mailboxes in the group in ascending or descending order.

4.To remove a grouping, drag the column header back into the list. You can insert the column header at any place in the row of column headers.

clip0078

info

NOTE: To search in journal mailboxes:

·If a user has Journal permission set in ArchiveWeb then the user can search through their own emails, where is present as a kind of recipient (sender, recipient).

·If a user has Journal access granted through Archive Manager > Tools > Mailbox rights manager, then the user can search all emails in the Journal.

At least one mailbox must be selected to run a search. The specified mailbox selection is preserved across sessions unless the option Remember last mailbox / server selection in Manage settings > Profile is cleared.

Document tags

The Document Tags page displays the tags that you can specify in a search. See Tags for more information about setting up document tags. To search for emails that are tagged, do the following:

1.Select one or more document tags.

2.Select a search option as described below:

a.Marked with all selected tags - select this option to search emails which are tagged with all the selected tags.

b.Marked with any selected tag -  select this option to search emails which are tagged with any of the selected tags.

clip0029



How to build search queries

This topic describes how to build search conditions using the keyword search and advanced search capabilities of Archive Manager for Exchange. A search condition (or query) can contain zero or more search clauses that are combined using operators and grouping of search clauses.

In this topic

·Simple conditions

·AND/OR operators

·Grouping

·Keyword search


Simple Conditions

A simple search conditions needs no search clause or can contain just one search clause.

Example 1

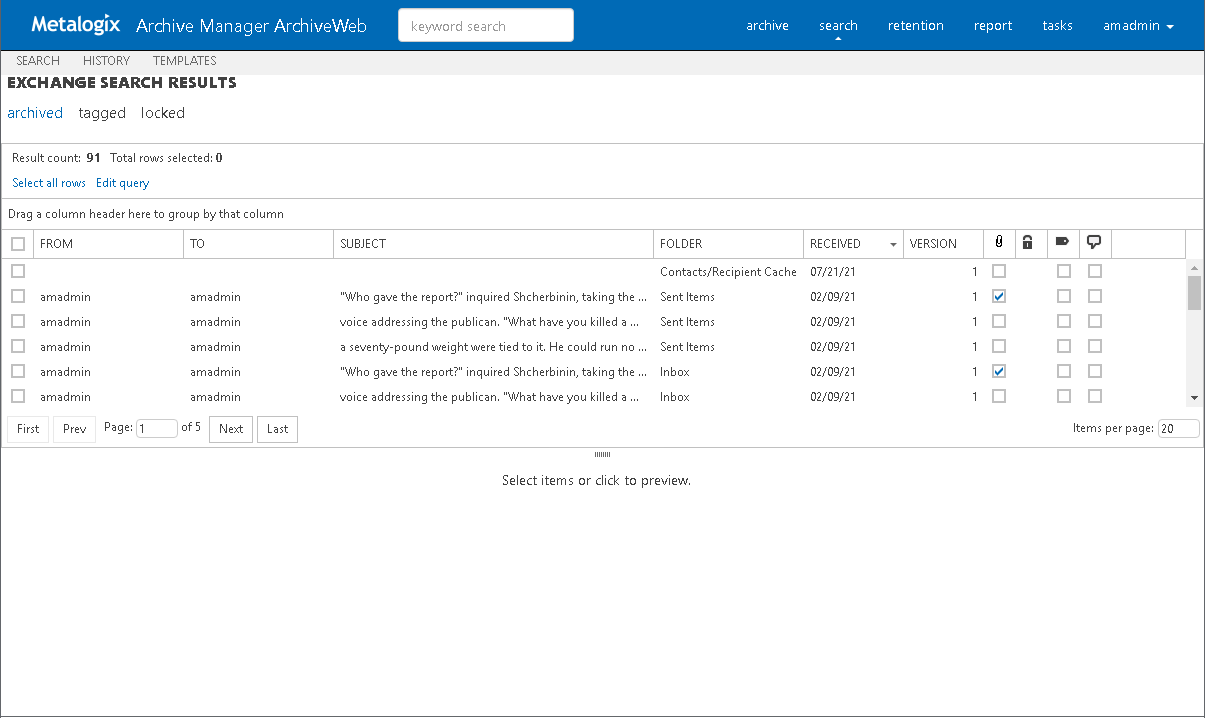

Click Search without adding a search clause. In this case, you will get back all the archived items.

Query

search-ex-010

Result

search-ex-020

Example 2

Add a single search clause with a condition where the field Subject contains the word "them". When you click Search, you will get back all the archived items where the Subject contains the word "them".

Query

search-ex-030

Result

search-ex-040


AND/OR operators

The AND/OR operator is used between two search clauses. With these operators, you can combine two or more search clauses. The AND operator will return a search result if both the search clauses separated by the AND operator are fulfilled. The OR operator will return a search result if any one of the search clauses separated by the OR operator are fulfilled. The AND operator has a higher priority over the OR operator. When a search condition contains both the AND and OR operators, the search clauses that are combined with the AND operator must be fulfilled first.

Example 1

To find all items where the Subject contains word "them" AND the Sender is "amadmin", you must combine two search clauses as shown:

Query

search-ex-050

Result

search-ex-060

Example 2

To find all items where the Subject contains word "them" OR the Sender is "amadmin", you must combine two search clauses as shown:

Query

search-ex-070

Result

search-ex-080


Grouping

Sometimes simple combinations of search clauses with the AND and OR operators are not enough. Grouping is a good solution to change the priority between the operators. The grouped search clauses have a higher priority than the operator before or after the group. The examples in this section describe how the grouping works.

Example 1

To find all items where the Subject contains the word "them" AND the Sender is "amadmin", and all these items must also have an attachment then the search condition is as shown:

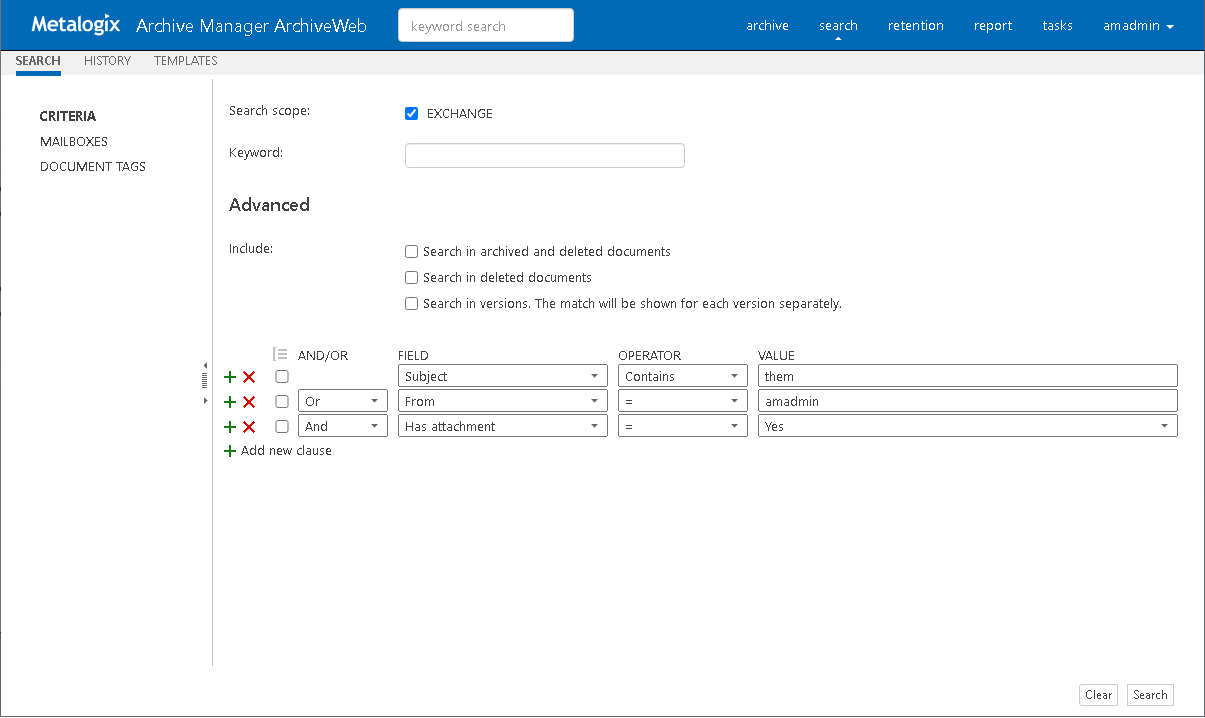

Query: (Subject contains "them" OR Sender is "amadmin") AND has attachment

search-ex-090

Result: (Subject contains "them" OR Sender is "amadmin") AND has attachment

search-ex-100

We can split this search condition into two parts

1. (Subject contains "them" OR Sender is "amadmin") which is a group

2. AND has attachment

Since a grouping has a higher priority, the search condition in the group must be fulfilled first. In this case each item in the search result will have a Subject that contains the word "them" AND the Sender is "amadmin", and the item will also have an attachment

Example 2

To find all items where the Subject contains word "them" or, the Sender is "amadmin" and at the item must have an attachment, then the query is as shown:

Query: Subject contains "them" OR Sender is "amadmin" AND has attachment

search-ex-110

Result: Subject contains "them" OR Sender is "amadmin" AND has attachment

search-ex-120

This query we can be split into two parts

1. Subject contains "them" OR

2. Sender is "amadmin" AND the item has an attachment

The AND operator has a higher priority so the search clauses combined with the AND operator must be fulfilled first. In this case the search result will contain items where the item must have an attachment and the Sender must be "amadmin", or Subject should contain the word "them".



Example 3

To find all items where the Subject contains the word "them" and the Sender is "amadmin", or the item has attachment, and the item must be in the "Inbox" folder then the search condition is as shown:

Query: Subject contains "them" AND (Sender is "amadmin" OR has attachment) AND Folder path: Inbox

search-ex-130

Result: Subject contains "them" AND (Sender is "amadmin" OR has attachment) AND Folder path is "Inbox"

search-ex-140

This query can be split into three parts

1. Subject contains "them" AND

2. (Sender is "amadmin" OR the item has an attachment)

3. AND Folder path is "Inbox"

The grouped search clauses have the higher priority in this query so the search condition in the group must be fulfilled first. In this case the search result will contain items where the Subject must contain the word "them" + Sender should be "amadmin" or the item has an attachment + the folder path must be "Inbox".

Example 4

To find all items where the Subject contains the word "them" and Sender is "amadmin", or the item has an attachment and these items should be in the "Inbox" folder then the search query is as shown:

Query: Subject contains "them" AND Sender is "amadmin" OR has attachment AND Folder path: Inbox

search-ex-150

Result: Subject contains "them" AND Sender is "amadmin" OR has attachment AND Folder path is "Inbox"

search-ex-160

This query can be split into two parts

1. Subject contains "them" AND Sender is "amadmin" OR

2. Item has attachment AND Folder path is "Inbox"

The AND operator has a higher priority in this query so the conditions with the AND operators must be fulfilled first. In this case the search result will contain all items where Subject contains the word "them" and Sender is "amadmin" or the item must have an attachment and the folder path must be "Inbox".

Example 5

To find all items where the Subject contains word "them" or these items are in the "Inbox" folder, and the Sender is "amadmin" or the item has an attachment, then the query is as shown:

Query: (Subject contains "them" OR Folder path: Inbox) AND (Sender is "amadmin" OR has attachment)

search-ex-170

Result: (Subject contains "them" OR Folder path is "Inbox") AND (Sender is "amadmin" OR has attachment)

search-ex-180

This query can be split into two parts:

1. (Subject contains "them" OR Folder path is "Inbox") AND

2. (Sender is "amadmin" OR item has attachment)

The grouped condition has the higher priority in this query so the conditions in the group must be fulfilled first. In this case the search result will contain items where Subject should contain "them" word or folder path should be "Inbox" + Sender should be "amadmin" or the item should have an attachment.

Example 6

To find all items where the Subject contains the word "them" or, these items are in the "Inbox" folder and the Sender is "amadmin", or the item has an attachment, then query is as shown:

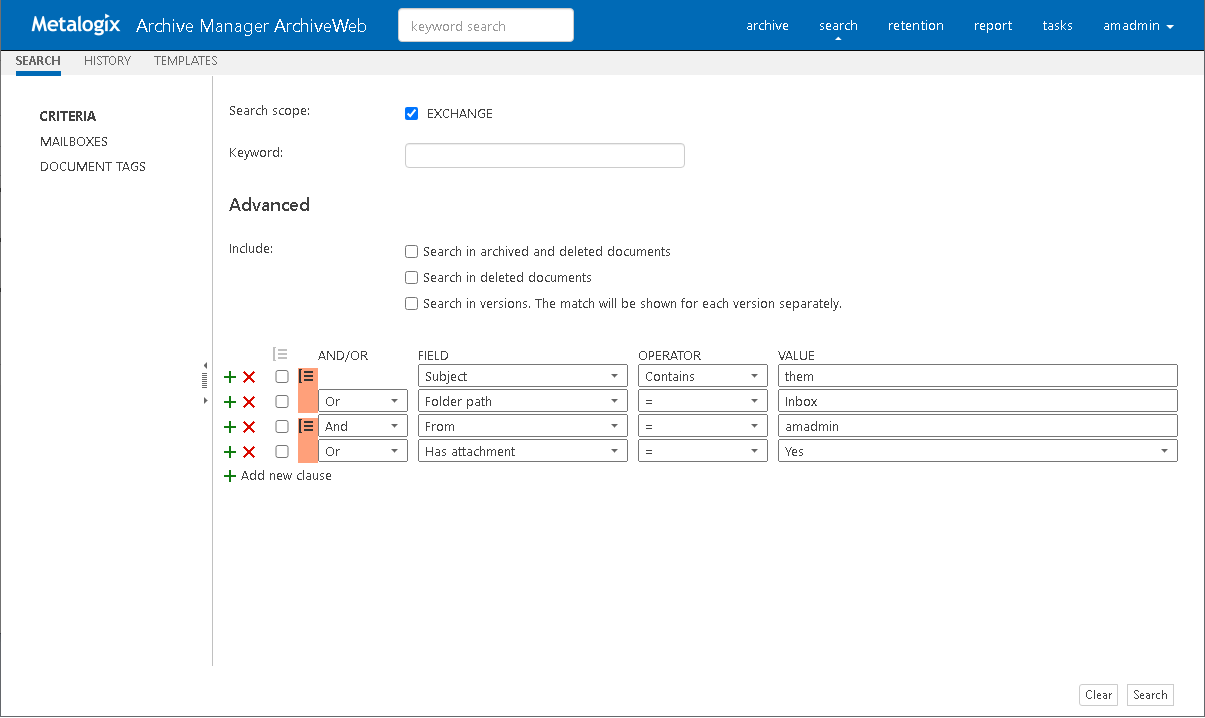

Query: Subject contains "them" OR Folder path Inbox AND Sender is "amadmin" OR has attachment

search-ex-190

Result: Subject contains "them" OR Folder path Inbox AND Sender is "amadmin" OR item has an attachment

search-ex-200

This query can be split into three parts:

1. Subject contains "them" OR

2. Folder path is "Inbox" AND Sender is "amadmin"

3. OR item has an attachment

The AND operator has a higher priority so the conditions with the AND operator must be fulfilled first. In this case the search result will contain items where Subject must contain the word "them" or folder path must be "Inbox" and Sender must be "amadmin" or the item has an attachment.


Keyword search

Keyword search provides a fast and flexible search for keywords in the email Subject, body, and attachments of messages in Metalogix Archive Manager for Exchange. If you leave this field empty, then the search result will show all archived messages. If you enter a word or phrase in the keyword field and click Search the result of the search will show all the archived messages where the Subject, body or attachment contains the entered word or phrase.

Example

You can combine keyword searches with advanced search clauses to find specific messages. Keyword searches are combined with advanced search conditions with the AND operator. The search result will contain items that have the keyword and the advanced search conditions as well. To find all messages where the Subject, body or attachment contains word "mother" and the Subject also contains the word "them", the search query is as shown:

Query

search-ex-210

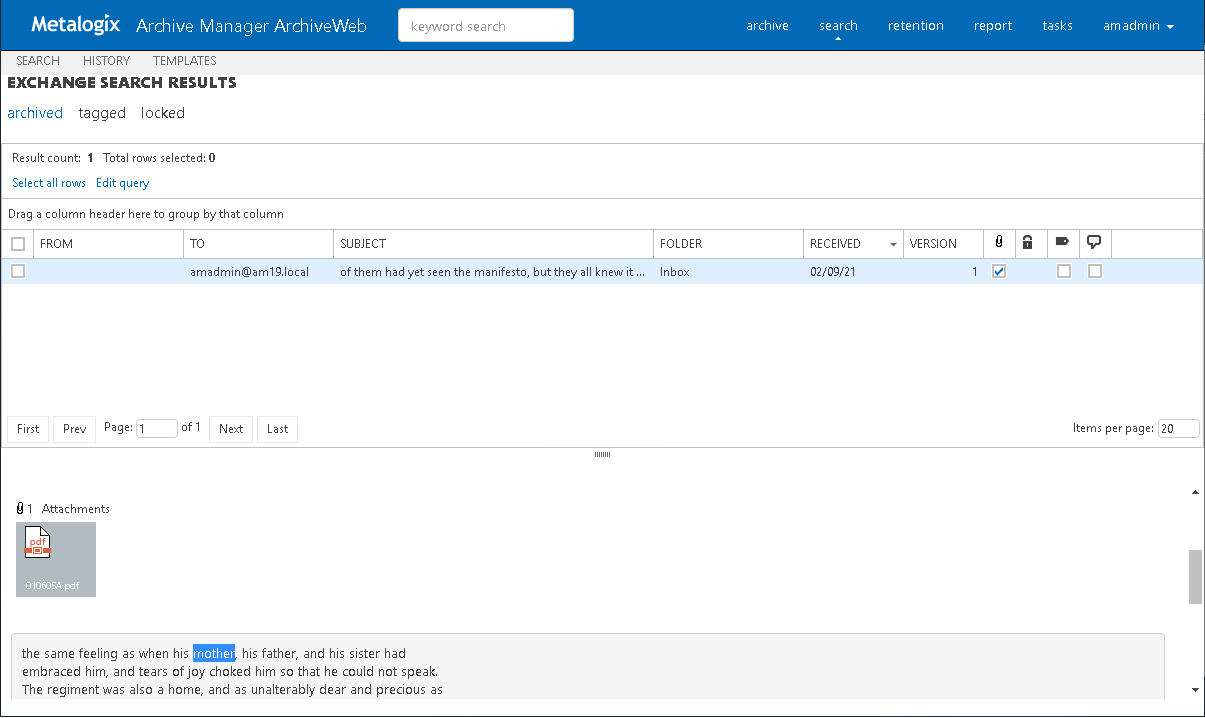

Result: The body of the message contains word "mother", and the Subject contains word "them"

search-ex-220

Search Results

Keyword search

When both Archive Manager for Exchange and Archive Manager for Files are installed on the same server, keyword search results are listed in separate tabs. If Match Highlight and Match Highlight Color are configured in Profile settings, keywords will be highlighted with the predefined color. For example, if the keyword is Commerce, then all instances of the word are highlighted as shown below.

clip0033A

Advanced search

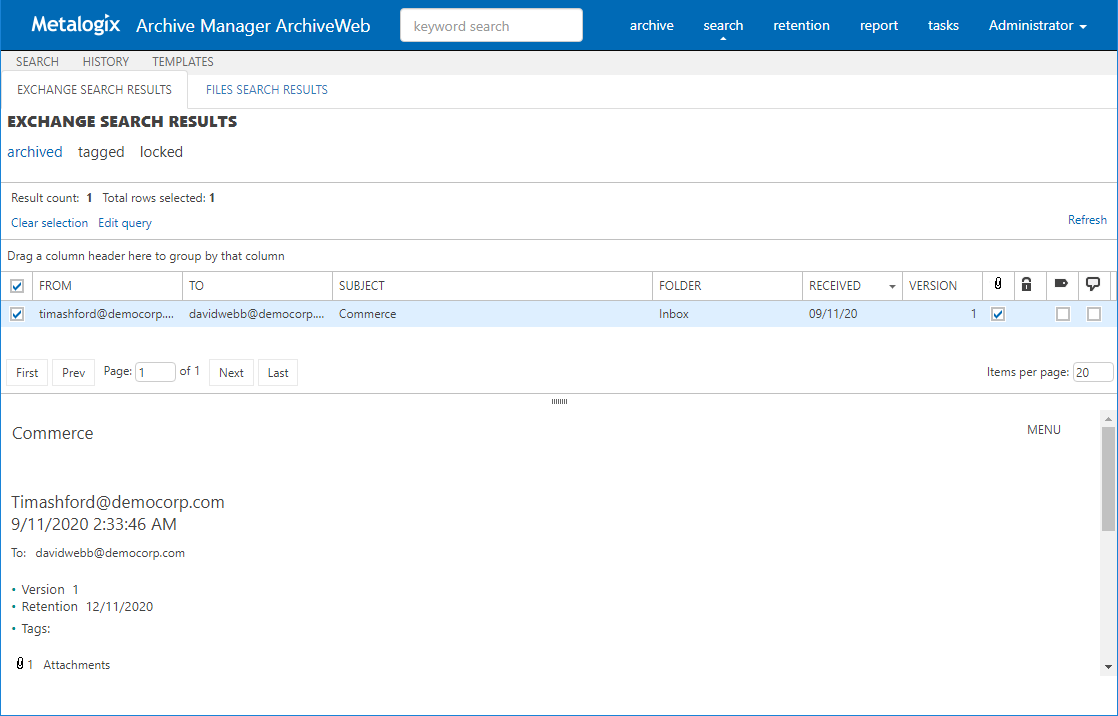

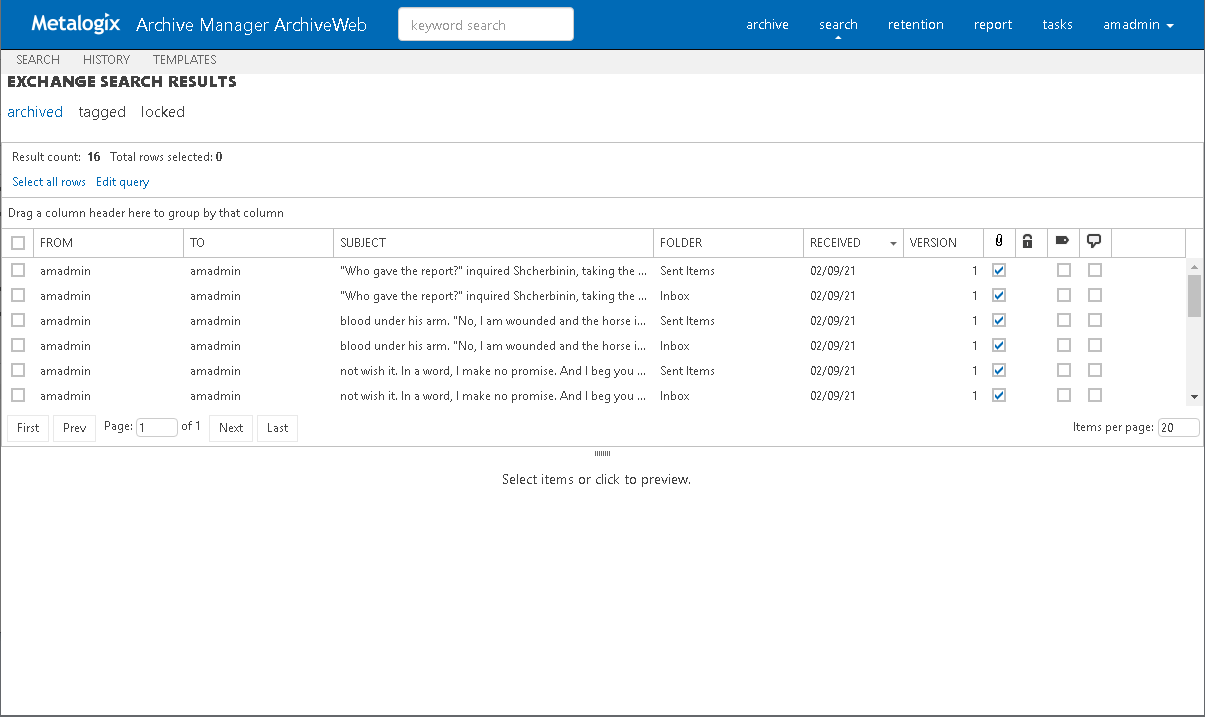

For advanced search, the search results for a specific product are listed since advanced search uses an expanded set of search criteria with product-specific search capabilities.

clip0033

When you highlight an item from the list, the details of the item is displayed in the pane below the list. The contents of the item are also displayed. If the item is an email with an attachment or a file, the contents of the attachement or file are visible only if the application to view the attachment is also installed on the server. For example, if a PDF viewer is not installed on the server, then the contents of the PDF file will not be visible.

Search Operations

Search operations are asynchronous. Every search operation is listed in the Tasks page.

When you highlight an item, select one or more items or select all items, you can choose an action from a menu to operate on the highlighted or selected item.

When Keyword search is used, keywords in the search results can be highlighted (this function is available only for Exchange search).



Edit query - redirects you to the previous search page where you can perform a new search after editing the existing query.

List view contains the following special columns:

oFolder – specifies item’s location (for Exchange search results it is mailbox folder name, for Files search results it is directory path)

List columns can be managed (show/hide) in the Columns section of the user profile (click <UserName> / Manage settings / Profile).

info

NOTE: For Archive Manager for Files matches can be displayed also for non-supported files such as MS Office documents and HTML. For more details see the “List view conventions” section.
