Foglight for Infrastructure 7.3.0 - Foglight for Web Monitor User and Reference Guide

Navegación de contenido

Monitoring Web transactions

Configuring credentials for Web sites requiring user or proxy authentication

To get started with managing credentials:

To get started with managing credentials:

Configuring credentials to access Web sites requiring user authentication

To create a credential needed to access a password-protected Web site:

Configuring credentials for accessing Web sites through proxy servers

To create a credential for accessing a Web site through a proxy server:

Monitoring HTTPs URLs in FIPS-compliant mode

To import the Web site's certificate to the Agent Manager certificate store:

Monitoring URLs that require a client certificate

To support the monitoring of URLs that require a client certificate:

Exploring your collection of monitored Web sites

To explore the collection of monitored Web sites:

To explore the collection of monitored Web sites:

Expanding your collection of monitored sites

To start monitoring a Web site:

Removing Web sites from the existing collection

To stop monitoring a Web site:

Moving multiple transactions as a group

To move multiple transactions in a single operation:

Removing stale transactions from the Performance Browser dashboard

To delete a transaction from the Performance Browser Quick View:

Viewing and editing individual Web transaction details

To edit transaction details:

Investigating the performance of Web transactions and monitoring locations

Exploring the FAQts tab Drilling down on transactions Drilling down on locations via the Locations tab

Exploring Web Monitor services

To explore Web transaction tiles:

Generating reports

Table 1. Predefined Reports

Configuring Web Monitor agent properties

Settings Data Collection Scheduler

Web Monitor Performance Browser views

FAQts tab FAQts view Location drilldown view

Table 2. Alarms view Table 3. Location view Table 4. Transactions view

Table 5. Alarms view Table 6. Top 5 Lowest Availability view Table 7. Top 5 Lowest MET view Table 8. Top 5 Most Consumed Response Time view

Table 9. Locations view

Monitor tab Quick View Summary - All Locations view

Table 10. Alarms view Table 11. All Locations view

Summary - All Transactions view

Table 12. Alarms view Table 13. Top 5 Lowest Availability view Table 14. Top 5 Lowest MET view Table 15. Top 5 Most Consumed Response Time view

Transaction at a Selected Location drilldown view

Table 16. Alarms view Table 17. Location view Table 18. Transaction Response Time view

Transaction at All Locations drilldown view

Table 19. Alarms view Table 20. All Locations view Table 21. Overall Response Time view Table 22. Locations view

Transaction view

Table 23. Alarms view Table 24. General Info view Table 25. Execution Success Rate view Table 26. Response Time Trend view Table 27. Response Time Distribution view

Transactions view

Table 28. Transactions view

Web Monitor Environment view

Table 29. Locations view Table 30. Transactions view

Web Monitor Transaction Management views

Transaction Detail view

Table 31. Basic Information view Table 32. Monitoring Locations view Table 33. Advanced Settings view

Transaction Management table

Table 34. Transaction Management table

Web Monitor Service Operation Console and Foglight for APM Transactions views

Transaction tile

Table 35. Description of the view

Transaction dialog box

Table 36. Description of the View

View reference

Foglight displays monitoring data in views that group, format, and display data. The main types are described below.

Dashboards are top-level views that contain lower-level views. The dashboards supplied with Foglight, as well as those created by users, are accessible from the navigation panel.

Lower-level views in Foglight can be added to dashboards or can be accessed by drilling down from a dashboard. They receive and display data directly from the Management Server or from other views. Some views filter or select data that appears in other views in the same dashboard. Some are tree views with expandable nodes for selecting servers, applications, or data.

Foglight Web Monitor ships with several dashboards that allow you to monitor and configure your virtual environment. Each of these dashboards contains a number of views. This section describes these views in more detail. For more information about the available dashboards, see Exploring your collection of monitored Web sites, Investigating the performance of Web transactions and monitoring locations, and Exploring Web Monitor services.

This cartridge includes the following groups of views:

•

Web Monitor Performance Browser views

•

Web Monitor Transaction Management views

•

Web Monitor Service Operation Console and Foglight for APM Transactions views

Web Monitor Performance Browser views

The Performance Browser contains the following views:

•

•

•

Location drilldown view

•

•

•

•

•

Summary - All Locations view

•

Summary - All Transactions view

•

Transaction at a Selected Location drilldown view

•

Transaction at All Locations drilldown view

•

Transaction view

•

Transactions view

•

Web Monitor Environment view

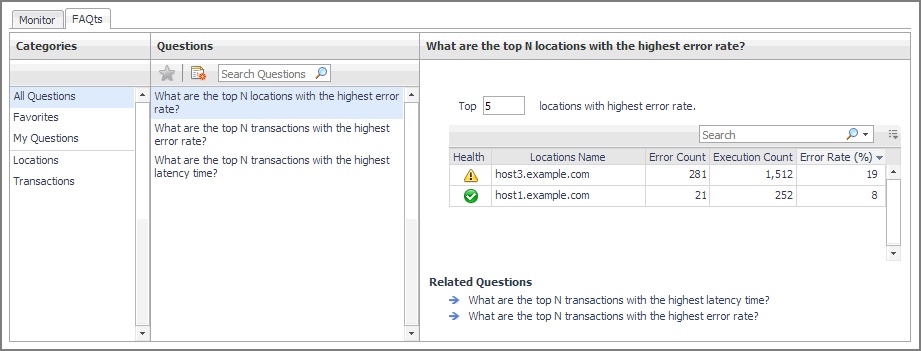

FAQts tab

The FAQts tab shows answers to common questions related to your transactions or locations.

How to get here

Navigate to the Performance Browser, and open the FAQts tab.

Description of embedded views

This view is made up of the following embedded views:

•

•

•

This view provides an answer to the question selected in the Questions view. The answer appears in the following form:

Top x <objects of category>…

where x is the number of objects of the category you provided in the Categories view.

Specify x by entering a number.

This view lists the categories for which questions can be answered for you by Foglight.

Click a category in the list to select it.

This view lists the questions, for the category selected in the Categories, that can be answered for you by Foglight.

Click a question in the list to select it.

If the list of questions is long and you want to narrow it down, search for a particular text string using the Search Questions box.

FAQts view

The FAQts view shows answers to common questions related to your transactions or locations. The collection of available questions depends on the tile selected in the Web Monitor Environment view. If you select the Transaction tile, this view displays the questions related to your transactions. If you select the Locations tile. the view displays the questions related to your locations.

How to get here

In the Performance Browser, in the Quick View, the FAQts view appears in the bottom-left corner.
