Foglight for Infrastructure 7.3.0 - Foglight for Web Monitor User and Reference Guide

Monitoring Web transactions Exploring your collection of monitored Web sites Investigating the performance of Web transactions and monitoring locations Exploring Web Monitor services Generating reports Configuring Web Monitor agent properties View reference
Web Monitor Performance Browser views Web Monitor Transaction Management views Web Monitor Service Operation Console and Foglight for APM Transactions views

Table 36. Description of the View

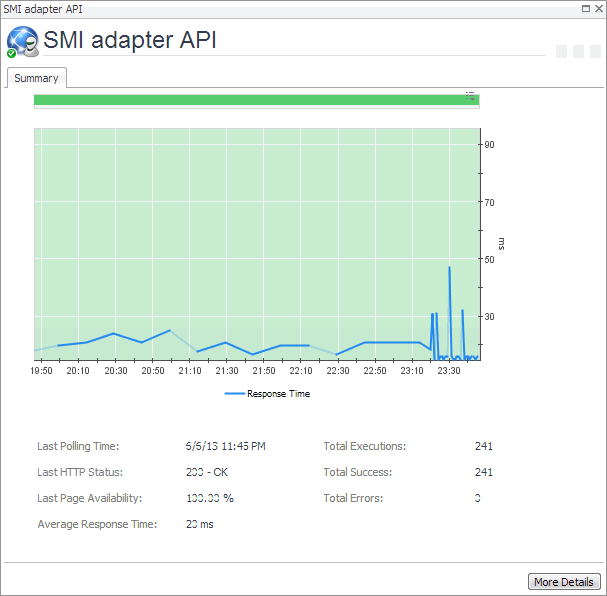

Transaction dialog box
Purpose

The transaction dialog box shows a series of charts displaying the response time statistics of the selected transactions, accompanied with additional performance indicators, such as the number of errors and the most recent HTTP status. This can give you a better idea of how the selected Web site is performing and alerts you about potential performance problems, if they exist. For example, high response times often suggests higher loads that may require further investigation.

How to get here
1
Complete one of the following steps:
•
On the navigation panel, click Services > Service Operations Console.
On the Service Operations Console that appears in the display area, select a Web Monitor service, and ensure that the Transaction tab is open.

•
On the navigation panel, click APM > Transactions.
On the Transactions dashboard that appears in the display area, select a Web Monitor service.
One or more transaction tiles appear in the display area.
2
Click the title bar of a transaction tile.
The transaction dialog box appears.
Description of the view

Table 36. Description of the View
Data displayed
•
Alarms. The counts of Fatal, Critical, and Warning alarms.

•
Average Response Time. The average amount of time all instances of the Web Monitor Agent configured to monitor this Web site wait for a response from the monitored Web site.

•
Health history bar. The color-coded bar represents the alarm state of the monitored application over the time range period selected in the Service Operations Console dashboard. The color of the bar changes over that period depending on the alarm state. Red indicates that the monitored application is in Fatal state, orange indicates Critical, yellow means Warning, and green is for the Normal State.

•
Last HTTP Status. The most recent HTTP status code, indicating the result of the most recent transaction with the monitored Web site.

•
Last Page Availability. The percentage of time the Web site was available when the Web Monitor Agent attempted to collect information from it during the most recent data collection attempt.

•
Last Polling Time. The date and time of the most recent data collection.

•
Response Time. The amount of time the Web site takes to respond to monitoring requests, over the selected time range. High values in the graph can indicate potential bottlenecks that likely need to be investigated.

•
Title bar. The name of the Web transaction.

•
Total Errors. The total number of execution attempts that resulted in errors all instances of the Web Monitor Agent configured to monitor this Web site encountered during the selected time range.

•
Total Executions. The total number of execution attempts all instances of the Web Monitor Agent configured to monitor this Web site performed during the selected time range.

•
Total Success. The total number of execution attempts that resulted in success all instances of the Web Monitor Agent configured to monitor this Web site encountered during the selected time range.
Where to go next

Drill down on:


•
More Details. For more information, see Transaction at All Locations drilldown view.
