ESX Server detail view

This tab displays the CPU, Memory, Network, and Disk utilization for the <hostname> from the perspective of the ESX® server. The lower part of the tab displays the top resource consumers for this host. From this tab you can navigate to the vmExplorer dashboard by clicking More Details. This dashboard allows you to further investigate the performance of the selected ESX® host.

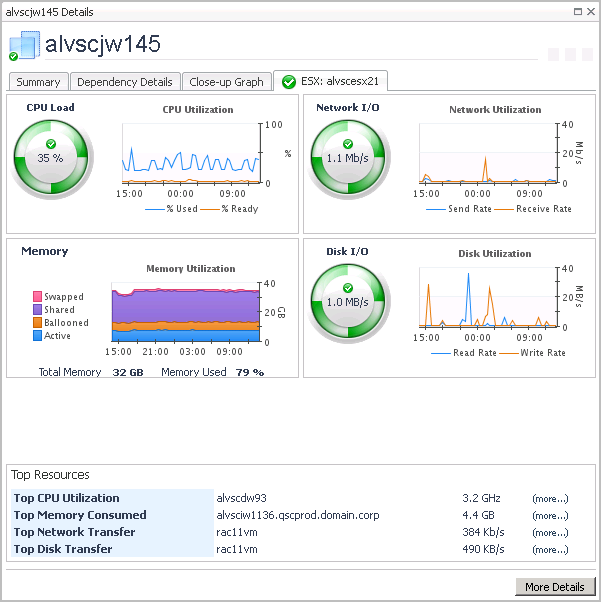

Figure 89. Example of the ESX Server detail view

From here, you can:

•

Click More Details to drill down to a vmExplorer view.

Topology object name reference table

The following table provides the domain and topology object names you need to use to ensure the tiles appear correctly for a manually built service.

Table 48. Topology object name reference
Domain	Topology Object
.NET	.NETApplicationInstance
Apache	ApacheSvrAgent
AppMonitor	AppMonitorAgent
APM Appliance (hits)	EUHitInteraction
APM Appliance (sequences)	EUSequenceInteraction
Custom Application Transactions (Java™ EE and .NET®)	CustomApplicationTransaction
DB2	DB2_Instance
FTR	FTRResult
FxM	FxMApplicationResult
Host¹	Host
Java EE Technologies	JavaEEAppServer
JMX	JMXServer
Log Filter	LogFilterAgent
MQ Series	MQQueueManager
Oracle	DBO_Instance
SQL Server	DBSS_Instance
Sybase	Sybase_MDAAgent
WebMonitor	WebMonitorAgent

1

For hosts, always select the host object, regardless of whether or not the host is virtual (for example, Hyper-V® or VMware®). Foglight looks for the appropriate host extensions and displays the associated host dashboard (physical or virtual).


	NOTE: The list of available topology objects is current as of this release. Additional cartridges may add additional relevant objects in future releases.
