Managing jobs

•
About Managing jobs
•
Viewing job activity
•
Viewing job calendar
•
Managing jobs
•
Managing job definitions
•
Viewing job history

About Managing jobs

You can view and perform general job related actions and view the overall progress and status of the jobs. MSP administrator, Tenant administrator, and Tenant users can perform all job related actions. NetVault for MSP allows users to work in the respective scope. All these users can monitor the progress and control their tasks which are owned by the them.

Job activity capabilities

[NVBU-19856]

Different roles come with different rights and restrictions for view the job activity of other roles. The following lists describe the job activity capabilities for each role.

MSP administrator:

•
Runs the backup on the client with access to the MSP administrator.
•
Sees only the jobs which the MSP administrator created under Job Status, Manage Job Definition, and Job History.
•
Sees only the jobs which the MSP administrator created under Create Restore.
•
Sees those clients under the Client filter option in Create Restore, View Logs, and other pages of the WebUI.

Tenant administrator:

•
Runs the backup on any client of the tenant.
•
Sees all the jobs created by the Tenant administrator and the Tenant users under Job Status, Manage Job Definition, and Job History.
•
Sees all the jobs created by Tenant administrator and the Tenant users under Create Restore.
•
Sees only that client under the Client filter option in the Create Restore, View Logs, and other pages of the WebUIs.

*
NOTE: By default, the Tenant administrator has access permission to the default client group, which includes all clients of a tenant.

Tenant user:

•
Runs the backup on the client with access to the Tenant user.
•
Sees only the jobs which the Tenant user created under Job Status, Manage Job Definition, and Job History.
•
Sees only the jobs which the Tenant user created under Create Restore.
•
Sees only those clients under the Client filter option in Create Restore, View Logs, and other pages of the WebUI.

Viewing job activity

You can monitor the progress and status of your jobs from the Job Status page. You can also use this page to manage your jobs and perform various job-related tasks.

To view job activity:
1
In the Navigation pane, click Job Status.
2
On the Job Status page, you can view the following information.

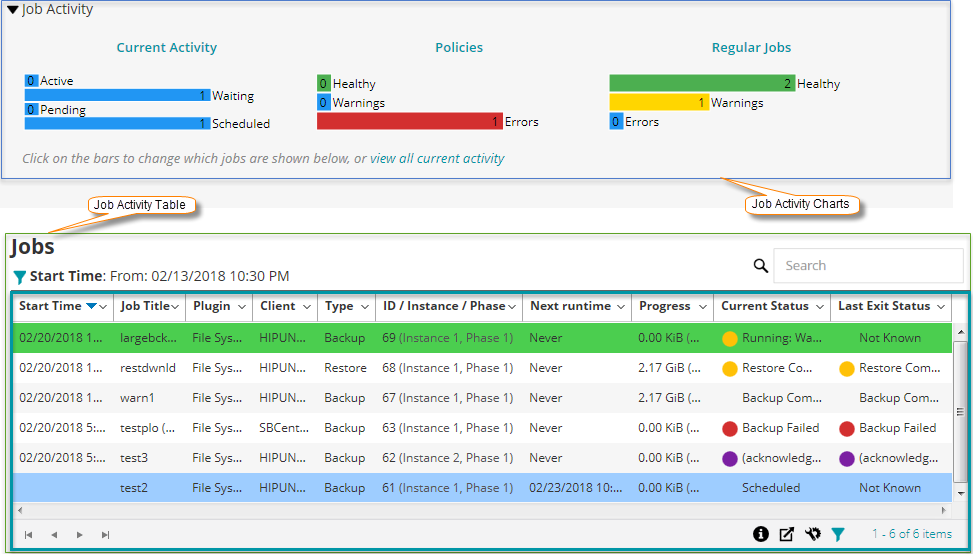

Figure 23. Job Status page


Table 73. Job Status page
Item
Description

Job activity charts

This area shows the summary for current jobs, policy jobs, and regular jobs in the form of bar charts:

•
Current Activity: The individual bars represent the number of jobs that are in active, waiting, pending, and scheduled states.
•
Policies: The individual bars represent the number of policy jobs that have completed successfully, completed with warnings, and failed. The Healthy count of policies shows the number of policy jobs that have completed successfully when all the jobs in the policy are successful. It shows 0 count if one or more jobs in the policy have warnings or errors.
•
Regular Jobs: The individual bars represent the number of regular jobs that have completed successfully, completed with warnings, and failed.

You can click a job activity to display the job details for that category in the job activity table. For example, you can click Policies in the Job Activity area to display the policy jobs in the job activity table.

You can click a bar in the activity chart area to display the job details for that category in the activity table. For example, you can click the Active bar in the Current Activity area to display the jobs that are in progress.

To return to the default view type for the activity table, click the View all current activity link.

To hide the job activity statistics on Job Status page, follow these steps:

•
In the header pane of NetVault WebUI, click the Settings icon and select Application Settings. Application Settings drawer is displayed on the right- side of the page.
•
In the Hide Job Statistics option, select Hide the Job Activity Statistics check box.
•
Click OK.

Job activity table

By default, the table lists all current job activities (All activity category).

For the All Activity category, you can view the following information: Start Time (also shows start date), Job Title, Plugin, Client, Type, ID/Instance/Phase (shows the instance and phase), Next runtime (date and time when the next instance is scheduled to run), Progress (current or average transfer rate), Current Status (current status of a job instance), and Last Exit Status (exist status of latest completed job instance).

You can also add or remove following additional columns using the column menu: Policy Name, ID (shows only the job ID), Instance (shows only the job instance), Phase (shows only the job phase), Selection Set, Plugin Options Set, Schedule Set, Source Set, Target Set, Advanced Options Set, Duration (Displays the time in hours: minutes: seconds to complete the operation for backup/restore/reporting). For more information, see Sorting records in NetVault WebUI.

The following job status light icons are displayed in the current status and last exit status columns based on the exit status:

•
Red light: Aborted, Died, Failed, Did not run
•
Yellow light: Warnings, Stopped, and Waiting for media
•
Violet: Acknowledged

The following row background colors are displayed for a job based on current status:

•
Green: Running
•
Blue: Scheduled

You can change the view type and also filter the records displayed in the table:

Change the view type: To view the job details for a different job category, click the corresponding bar in the activity chart area. For example, to view the jobs that have completed with warnings, click the Warnings bar in the Regular Jobs area.


3
By default, the table is sorted by Start Time (descending order).
You can sort the table by one or more columns, as required. For more information, see Sorting records in NetVault WebUI.
To set the filter options (For more information on table filter options for Job Status page, see Table 7), view the page size setting, column sort order, applied filters in the table, export the records, or edit table settings, click the icons at the lower- right corner of the table.
For more information, see Customizing tables in NetVault WebUI.

*
NOTE: Acknowledged jobs are not part of regular sorting. So, sorting results display normal jobs first and then acknowledged jobs.
4
You can use the Search option to filter the table data and quickly find entries that contain the specified string in any column values. You can also include wildcards (“?” or “*”) in the search filter string.
5
To perform a job-related task, click the corresponding button in the Operations pane if the Page Options are set to show the action options as buttons on bottom of page. By default, this option is displayed.
-OR-
To perform a job-related task using ‘Actions’ column in the Job Activity table, select a job (s) and click the corresponding context menu icon in the Actions column. Click the job-related action you want to apply.
Alternatively, click a link in the Navigation pane to open a different page.
