About Quest DR Series systems

The Quest DR Series disk-based data protection appliances optimize utilization with in-line deduplication and compression, and reduce network bandwidth requirements with client-side deduplication processing and deduplicated replication.

These appliances incorporate innovative deduplication and compression technology to help you achieve a data-reduction level up to 15:1. As a result, you can retain more backup data for a longer period in the same footprint.

The Quest DR Series systems use the Plug-in for Rapid Data Access (RDA) to integrate its data storage operations with NetVault. This plug-in is automatically installed on the NetVault machines when you install the NetVault Server or Client software.

For more information about Quest DR Series systems, see the Quest DR Series system Administration Guide.


*
NOTE: The Quest DR Series systems do not support backups over a wide-area network (WAN).

Quest DR Series system prerequisites

Before adding a Quest DR Series system to a NetVault Server, verify that the following requirements are met:

•
DR appliance must be running on DR OS version 4.0 or higher.
•
Configure the required storage options: On the Quest DR Series system, configure the storage options for the container. For more information about the storage options, see the Quest DR Series system Administration Guide.
•
Configure ports for optimized replication: To perform optimized replication operations across a firewall, configure the following fixed TCP ports on the Quest DR Series system to support RDA replication operations:
•
Port 9920
•
Port 11000
•
Port 10011

Adding a Quest DR Series system

To use a Quest DR Series system for backups and restores, you must first add the device to the NetVault Server. You can use the configuration wizard to add and configure this device.

•
Adding a Quest DR Series appliance
•
Creating a container
•
Adding a container as a media

Adding a Quest DR Series appliance

To add a Quest DR Series system to the NetVault Server:
1
In the Navigation pane, click Guided Configuration, and then on the NetVault Configuration Wizard page, click Add Storage Devices.
— or —
In the Navigation pane, click Manage Devices, and then click Add Device.
2
On the Add Storage Devices page, select the Quest RDA Device option, and click Next.

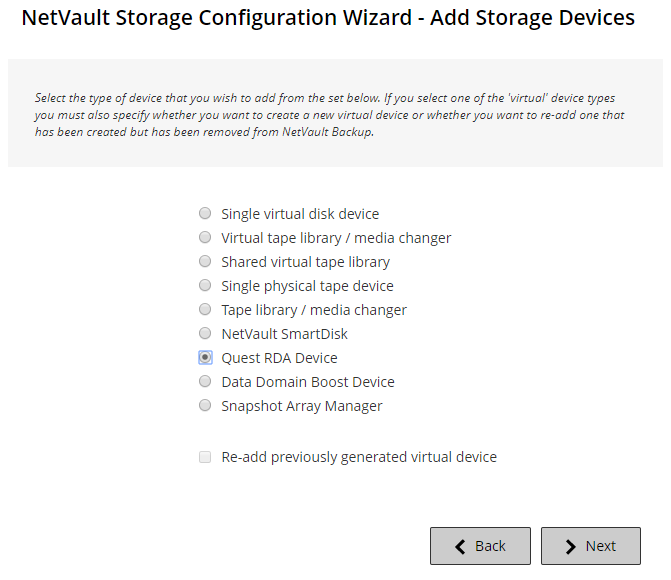

Figure 6. Add Storage Devices page
3
On the Add Quest RDA Device page, provide the following details.
Figure 7. Add Quest RDA Device page

Table 29. Add Quest DR Series system
Option
Description

Hostname

Type the Fully Qualified Domain Name (FQDN) or IP address of the Quest DR Series system.

If the server is unable to resolve the host name, it fails to add the device.

Username

Specify a user account that can be used to log on to the device.

On the Quest DR Series system, only one user account exists, and the user ID for that account is backup_user.

Password

Type the password for the user account.

4
Click Add RDA Device to add the device.
