Starting or stopping the NetVault Backup Service

The NetVault Backup Service is configured to start automatically on the server and client machines. You can use the Txtconfig utility or CLI to manually start or stop the NetVault Backup Service.


*
NOTE: You must be logged-in with Administrator privileges on Windows-based systems and root user privileges on Linux- and UNIX-based systems to use these utilities.
To manually start or stop the NetVault Backup Service:
1
Using Txtconfig:
a
In a terminal or command prompt window, type, txtconfig, and press Enter or Return.
b
On the Machine page, press p to view the main menu, and then press the option number for the Services page.
c
Depending on the current state of the NetVault Backup Service, press the option number to stop or start the service. Press s, and then press q.
2
Using CLI:
a
On Linux-based systems:
To start the service, type: $NV_HOME/etc/startup.sh start
To stop the service, type: $NV_HOME/etc/startup.sh stop
b
On Windows-based systems:
To start the service, type: net start “NetVault Process Manager”
To stop the service, type: net stop “NetVault Process Manager”

Enabling Web Service over HTTP or HTTPS

By default, the Web Service is enabled over HTTPS. You can modify the Web Service settings to change the port or protocol. These settings also let you specify the security certificate file and private key file for HTTPS communications.

You can modify the Web Service settings through the following interfaces: NetVault Backup WebUI (through the Change Settings page), or Txtconfig.


*
NOTE: NetVault Backup uses port 8443 as the default HTTPS listen port for incoming Web Service connections. When installing the server, if the default port (8443) is in use by any other application, NetVault Backup assigns the first available port in the port range 50486 to 65535.

You must be logged-in with Administrator privileges on Windows-based systems and root user privileges on Linux- and UNIX-based systems to use this procedure.
To configure the Web Service settings for NetVault Backup:
1
Access the Web Service settings by using any of the following methods:
•
NetVault Backup WebUI:
a
Start the NetVault WebUI, and in the Navigation pane, click Change Settings.
b
On the Configuration page, click Server Settings.
c
On the NetVault Server Settings page, under Services, click Web Service.
•
Txtconfig:
a
In a terminal or command prompt window, type, txtconfig, and press Enter or Return.
b
On the Machine page, press p to view the main menu, and then press the option number for the Web Service page.
2
Configure the following settings.
Table 1. Web Service settings
Setting
Description

HTTP settings

To access the Web Service through HTTP, configure the following settings:

•
Enable Web Service over HTTP: Select this check box.
If you are using Txtconfig, press the option number for this setting to change the value to ON.
•
HTTP Listen port for incoming Web Service connections: The default HTTP port is 80.
If this port is in use by any other server or application, configure an alternate port.

HTTPS settings

To access the Web Service through HTTPS, configure the following settings:

•
Enable Web Service over HTTPS: This protocol is selected by default.
HTTPS is the preferred protocol. This protocol provides encrypted communication between the client and server. It protects sensitive data such as NetVault Backup passwords passed between the browser and NetVault Web Service.
•
HTTPS Listen port for incoming Web Service connections: By default, NetVault Backup uses port 8443 for HTTPS. If this port is in use by any other server or application, configure an alternate port.
•
WebService security certificate file: To use HTTPS, provide a SSL certificate.
NetVault Backup provides a self-signed certificate (server.crt), which resides in the etc directory under the NetVault Backup installation directory. This certificate generates warnings in most browsers.
For the browser to accept a certificate without warnings, provide a valid certificate file signed by a trusted certificate authority.
•
Ciphers to disable for incoming Web Service connections: You can modify the Web Service configuration to disable ciphers for incoming web service connections settings to prevent from allowing one or more ciphers. These settings can be configured from the NetVault Server Settings page. By default, this field is blank and all the ciphers are allowed.
•
Protocols to disable for incoming Web Service connections: You can modify the Web Service configuration to disable protocol for incoming web service connections settings to prevent from allowing one or more protocols. These settings can be configured from the NetVault Server Settings page. By default, this field is blank and all the protocols are allowed.
•
WebService private key file: Provide the private key file required for HTTPS communications.
The default key file is server.key, which resides in the etc directory under the NetVault Backup installation directory.
3
To save the settings, do the following:
•
NetVault WebUI: Click Apply to apply the settings and close the WebUI dialog box.
•
Txtconfig: Press s to save the settings, and then press q to quit Txtconfig.

Logging in to NetVault Backup


*
NOTE: You must be logged-in with Administrator privileges on Windows-based systems and root user privileges on Linux- and UNIX-based systems to run NetVault Backup.
To log in to NetVault Backup:
1
Open a browser window. In the address bar, type:
https://<machine-name>:8443
Press Enter.
2
In the Login dialog box, type your user name and password.

*
NOTE: There are two predefined user accounts in NetVault Backup:
•
admin: The administrator account for NetVault Backup.
•
default: A standard user account that can be used to perform various operations in NetVault Backup.

After installing NetVault Backup, you can use either the admin or the default user account to log in to NetVault Backup. By default, no password is assigned to these user accounts. For more information about NetVault Backup user accounts, see Managing user accounts.

3
Click Log In.
After you log in, the WebUI opens the Server Monitor page in your browser window.

Overview of NetVault Backup WebUI

The NetVault Backup WebUI consists of the Header pane, Navigation pane, and Operations pane.

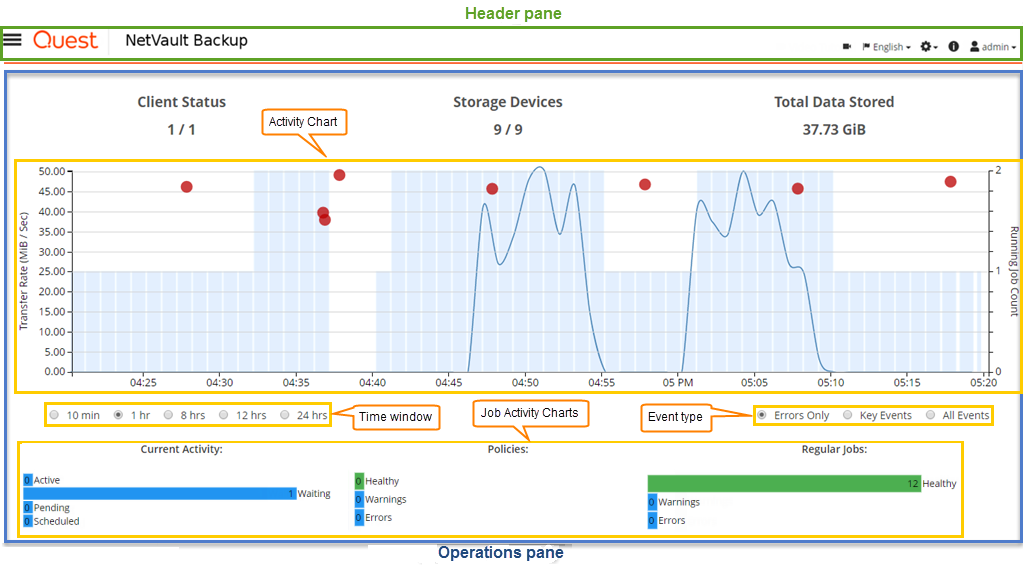

Figure 2. NetVault Backup WebUI home page

The following table provides a brief description of the WebUI panes.


Table 2. NetVault Backup WebUI panes
Pane
Description

Header pane

This pane includes the following items:

•
Video icon: Provides access to the video tutorial for the currently loaded page. The link opens in a new browser window or tab.
•
Language: Displays the list of available languages from which you can select the display and input language for NetVault Backup WebUI.
This option does not change the locale setting for NetVault Backup. To change the locale for NetVault Backup, see Changing language and locale settings.
•
Options icon: Displays the Options dialog box to change the color theme for NetVault Backup WebUI, Navigation pane option, and job related Actions option.
To change the color theme for NetVault Backup WebUI, follow these steps:
a
In the Header pane of NetVault Backup WebUI, click the Options icon. Options dialog box is displayed.
b
In the Color palette section, select the Dark theme to change the color of NetVault Backup WebUI to dark theme. By default, the NetVault Backup WebUI is displayed in Light theme.
c
Click OK.
You can select the preferred theme and persist the setting over browser sessions.
•
Information icon: Shows the About dialog box.
•
User: Displays the user icon and user name. To quit NetVault Backup, move the pointer over the area, and click Sign Out.

Navigation pane

This pane provides links to set up, manage, and monitor various aspects of NetVault Backup. The navigation links are organized into the following sections:

•
Monitoring
•
Jobs
•
Reporting
•
Configuration
•
Help

For more information about this pane, see Navigation pane.

Operations pane

This pane is the main area where you perform all NetVault Backup operations. The Operations pane loads various WebUI pages depending on the item you select in the Navigation pane.
