NetVault 11.4.5 - Administration Guide

Introduction Getting started Configuring clients Configuring storage devices Backing up data Managing policies Restoring data Managing jobs Monitoring logs Managing storage devices
Monitoring device activity Managing disk-based storage devices in table view Managing disk-based storage devices in tree view Managing tape libraries in table view Managing tape libraries in tree view Managing tape drives in table view Managing tape drives in tree view Adding shared devices
Managing storage media Managing user accounts Monitoring events and configuring notifications Reporting in NetVault Backup Working with client clusters Configuring default settings for NetVault Backup
About configuring default settings Configuring encryption settings Configuring plug-in options Configuring default settings for post-scripts Configuring default settings for Verify Plug-in Configuring Deployment Manager Settings Configuring Job Manager settings Configuring Logging Daemon settings Configuring Media Manager settings Configuring Network Manager settings Configuring Process Manager settings Configuring RAS device settings Configuring Schedule Manager settings Configuring Web Service settings Configuring Auditor Daemon settings Configuring firewall settings Configuring general settings Configuring security settings Synchronizing NetVault Time Configuring default settings for global notification methods Configuring the reporting utility Configuring NetVault Backup to use a specific VSS provider Configuring default settings using Txtconfig
Diagnostic tracing Managing diagnostic data Using the deviceconfig utility NetVault Backup processes Environment variables Network ports used by NetVault Backup Troubleshooting

Enabling tracing

Diagnostic tracing is disabled by default. When investigating a problem, Quest Technical Support might ask you to enable tracing on the relevant NetVault Backup machines to capture diagnostic information about the error condition. This information helps in determining the source of error condition.


*
IMPORTANT: Tracing can affect performance of the application and generate large amounts of data on the server and client machines. You should only enable tracing when requested by Quest Technical Support, and disable this option after the issue is resolved.
To enable diagnostic tracing:
1
In the Navigation pane, click Change Settings.
2
To enable diagnostic tracing on the NetVault Backup Server:
•
On the Configuration page, click Server Settings. Under System and Security, click Diagnostic Tracing.
3
To enable diagnostic tracing on a NetVault Backup Client:
•
On the Configuration page, click Client Settings. In the NetVault Backup Clients table, select the client, and click Next. Under System and Security, click Diagnostic Tracing.
— or —
•
On the Configuration page, click Server Settings. Under System and Security, click Diagnostic Tracing. On the Diagnostic Trace Settings page, click Client Trace Settings, and select the clients. You can select multiple clients from this page.
4
On the Diagnostic Trace Settings page, click Enable Tracing. In the Trace Enable Options dialog box, configure the following settings.

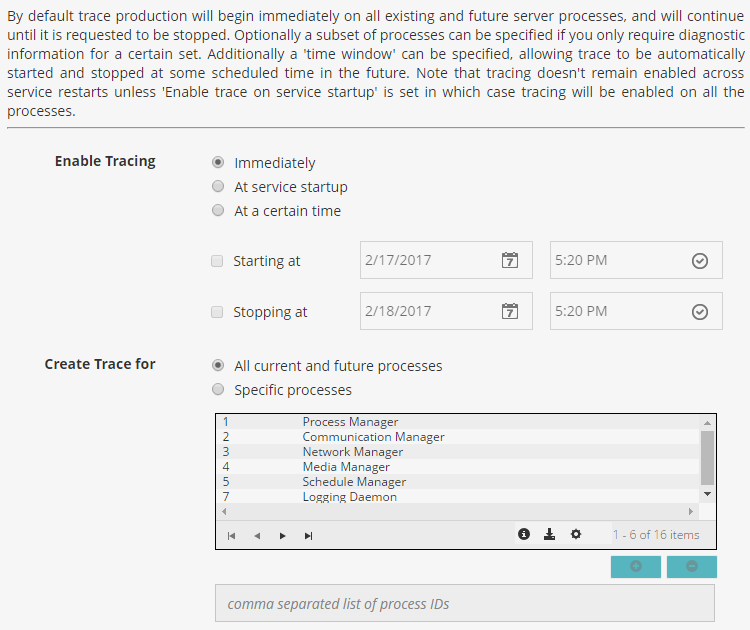

Figure 35. Trace Enable Options dialog box

*
IMPORTANT: When you select multiple clients, the Trace Enable Options dialog box does not show the list of process names. You can either use the All current and future processes option, or provide the process ID list in the associated box.
Table 131. Trace Enable Options
Setting
Description

Enable Tracing

Select one of the following options:

•
Immediately: This option is selected by default. To start tracing immediately, use this option.
•
At service startup: To enable tracing at service startup, select this option.
NOTE: You can also enable tracing at service startup by clicking Trace Configuration on the Diagnostic Trace Settings page, and selecting the Enable trace on service startup check box in the Trace Configuration Options dialog box.
When you select this option, tracing is enabled on all processes.
•
At a certain time: To automatically start and stop tracing at specified times, select this option, and specify the time window:
- Starting at: Select this check box, and type or select the date and time when tracing should be started on the machine.
- Stopping at: Select this check box, and type or select the date and time when tracing should be stopped on the machine.

Create Trace for

Specify the processes for which trace files are required:

•
All current and future processes: This option is selected by default. To generate trace files for all current and new processes, use this option.
•
Specific processes: To generate trace files for specific processes, select this option.
In the list of process names, select the processes, and click the Add button (). To select consecutive items, hold down the Shift key while clicking with the mouse button; to select non-consecutive items, hold down the Ctrl key while clicking with the mouse button.
To remove a process that was previously included, select the process name in the list, and click the Remove button ().
Alternatively, edit the Process ID list in the associated box to add or remove any process ID numbers.

*
IMPORTANT: Trace settings do not persist across restarts of NetVault Backup Service unless you have selected the At service startup or Enable trace on service startup options. In such cases, tracing is enabled on all processes.
To view the page size setting, sorting order in the table, export the records, or edit table settings, click the icons at the lower- right corner of the table. For more information, see Customizing tables in NetVault Backup WebUI .
5
Click Apply to apply the settings and close the dialog box.

Downloading trace files

Trace files are generated on the machines where the selected processes are running. You can use the WebUI to download trace files from various machines to the local machine where the WebUI is running.

To download trace files:
1
In the Navigation pane, click Change Settings.
2
To download trace files from the NetVault Backup Server:
•
On the Configuration page, click Server Settings. Under System and Security, click Diagnostic Tracing.
3
To download trace files from a NetVault Backup Client:
•
On the Configuration page, click Client Settings. In the NetVault Backup Clients table, select the client, and click Next. Under System and Security, click Diagnostic Tracing.
— or —
•
On the Configuration page, click Server Settings. Under System and Security, click Diagnostic Tracing. On the Diagnostic Trace Settings page, click Client Trace Settings. Select the client, and click Browse Available Traces.
4
In the list of trace sessions, select the session that you want to download.
5
Click Download, and in the confirmation dialog box, click OK.
In the File Download dialog box, select the Save option, and specify the location, if necessary. Make sure that you do not navigate away from the page until the browser starts downloading the files.

*
NOTE: When you send trace files to Quest Technical Support, make sure that you include files from all relevant NetVault Backup machines.

Changing the trace directory location

By default, the trace container directory is created under the NetVault Backup installation directory. You can modify the default settings to specify a new location for the container directory. When tracing is enabled, a session directory is created under the container directory; all trace files generated during the session reside in this directory.


*
NOTE: The trace container directory cannot be changed when tracing is enabled.
To change the trace container directory:
1
In the Navigation pane, click Change Settings.
2
To change the trace directory on the NetVault Backup Server:
•
On the Configuration page, click Server Settings. Under System and Security, click Diagnostic Tracing.
3
To change the trace directory on a NetVault Backup Client:
•
On the Configuration page, click Client Settings. In the NetVault Backup Clients table, select the client, and click Next. Under System and Security, click Diagnostic Tracing.
— or —
•
On the Configuration page, click Server Settings. Under System and Security, click Diagnostic Tracing. On the Diagnostic Trace Settings page, click Client Trace Settings, and select the client.
4
On the Diagnostic Trace Settings page, click Trace Configuration. In the Trace Configuration Options dialog box, configure the following setting:
•
Trace Container Directory: Specify the new location for the trace container directory. You must provide the full filepath.
5
Click Apply to apply the new settings and close the dialog box.

Enabling tracing using NetVault WebUI and Txtconfig

You can use the NetVault Backup WebUI or Txtconfig utilities to enable tracing at service startup. At service startup, tracing is enabled on all processes. The NetVault Backup WebUI or Txtconfig utilities do not provide the options to start tracing immediately, start and stop tracing at the specified time, or enable tracing for specific processes.

To enable diagnostic tracing using NetVault WebUI:
1
In the Navigation pane, click Change Settings.
2
To disable diagnostic tracing on the NetVault Backup Server:
•
On the Configuration page, click Server Settings. Under System and Security, click Diagnostic Tracing.
3
To disable diagnostic tracing on a NetVault Backup Client:
•
On the Configuration page, click Client Settings. In the NetVault Backup Clients table, select the client, and click Next. Under System and Security, click Diagnostic Tracing.
— or —
•
On the Configuration page, click Server Settings. Under System and Security, click Diagnostic Tracing. On the Diagnostic Trace Settings page, click Client Trace Settings, and select the clients. You can select multiple clients from this page.
4
On the Diagnostic Trace Settings page, click Enable Tracing.
To enable diagnostic tracing using Txtconfig:
1
In a terminal or command prompt window, type txtconfig, and press Enter or Return.
2
On the Machine page, press p to view the main menu, and then press the option number for the Diagnostic Tracing page.
3
Press the option number for the Enable trace on service startup setting to change the value to ON.
4
To save the settings and quit Txtconfig, press s, and then press q.

*
NOTE: Tracing is not enabled until the next service startup. For more information about restarting the NetVault Backup Service, see Starting or stopping the NetVault Backup Service.
