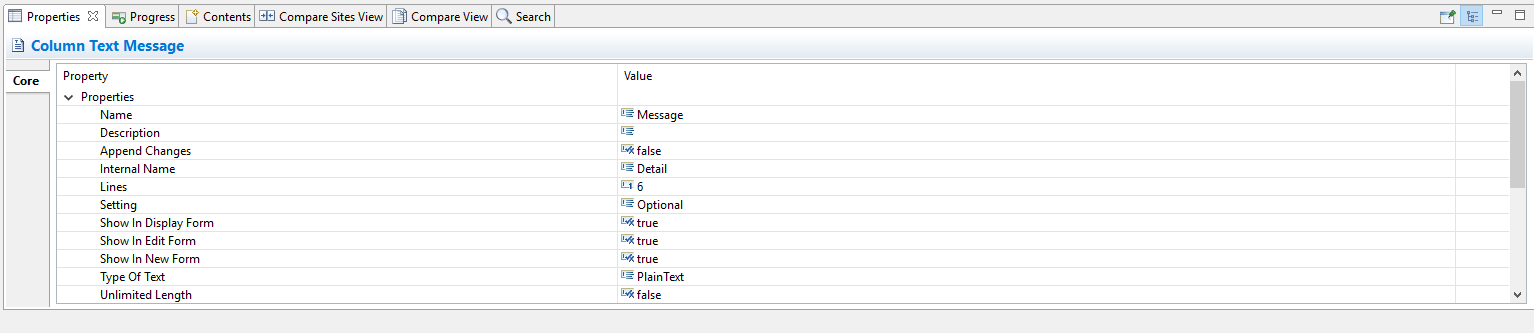

Properties Tab

architect properties and info 1

When a user selects an object inside the diagram (or right-clicks on an abject and selects Show Properties View from the menu) this tab is displayed. It contains a list of properties that are related to the selected object. Some of the properties are read-only, while others are editable.

Editable properties fall into several categories. Some, like the Description field, are directly editable by typing into the value column. Others allow you to select a value from a drop-down list or enter a list of values into a specific interface. Any changes to the property values will be recognized and applied to SharePoint at the time of the Update to SharePoint.

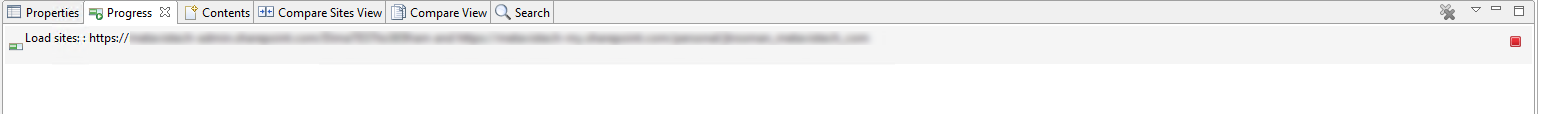

Progress Tab

The Progress tab is generally left in the background. Certain tasks, such as loading data from or to SharePoint will activate this area and allow you to follow the status of the process.
architect properties and info 2

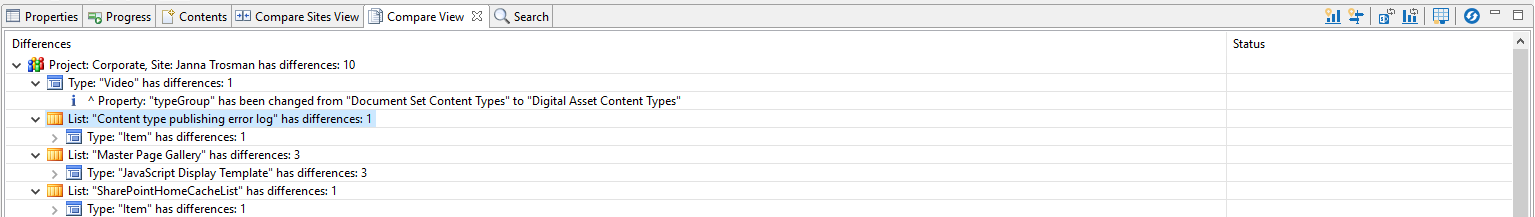

Compare View Tab

This tab will contain the results of comparing a diagram within Essentials Architect Suite against the SharePoint environment (see the Compare With Menu section for more information). This is also where the user can synchronize the two environments. So any changes in the design are propagated to SharePoint or vice-versa. Proceed to the Synchronizing a Metalogix Architect Suite Model with SharePoint section to learn more.
architect properties and info 3

This tab has a list of actions that are available from the icon bar in the tab or from a menu generated by right-clicking on a specific object:

Symbol

Description

architect properties and info 4

Locates the selected object in the Diagram.

architect properties and info 5

Locates the selected object in the Navigator.

architect properties and info 6

Updates SharePoint with the selected difference.

architect properties and info 7

Updates the Diagram with the selected difference.

architect properties and info 9

Shows the Compare Report.

architect properties and info 8

Refreshes the Compare Report.

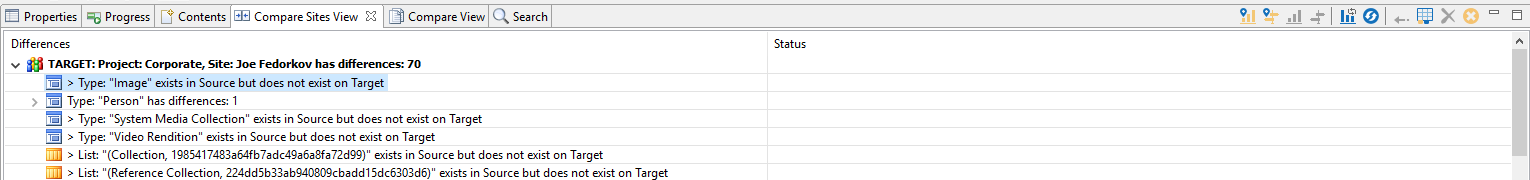

Compare Sites View Tab

This tab will contain the results of comparing sites with each other (see Compare With Menu section and the Compare Sites section for more information). This is also where the user can synchronize the two environments.
architect properties and info 10

This tab has a list of actions that are available from the icon bar in the tab or from a menu generated by right-clicking on a specific object:

Symbol

Description

architect properties and info 11

Locates the selected object in the source site Diagram.

architect properties and info 12

Locates the selected object in the source site Navigator.

architect properties and info 13

Locates the selected object in the target site Diagram.

architect properties and info 14

Locates the selected object in the target site Navigator.

architect properties and info 15

Updates target site with the selected difference.

architect properties and info 16

Refreshes the Compare Report.

architect properties and info 17

Swaps source and target sites (only enabled when a target site is selected).

architect properties and info 18

Shows the compare report.

architect properties and info 19

Removes the site.

architect properties and info 20

Removes all the sites.
