Coexistence Manager for Notes 3.9.1 - Program Parameters Reference Guide

About the CMN documentation suite

The documentation for Quest Coexistence Manager for Notes (CMN) includes:

All CMN documentation is intended for network administrators, consultants, analysts, and any other IT professionals who will install or use the product components, or who may help plan for their use in a coexistence scenario. All of these documents, including the online Help, are bundled and installed with the product, and all except the Help files are also available separately at Quest's Support Portal.

Where To Look in the CMN Documentation

This table shows where you can find particular types of information about particular CMN components:

The CMN application Help files contain the same information as the User Guide, but make the information available on-screen at a single keystroke (from the CMN Management Console).

All CMN documentation is intended for network administrators, consultants, analysts, and any other IT professionals who will install or use the product components, or who may help plan for their use in a coexistence scenario. All of these documents, including the online Help, are bundled and installed with the product, and all except the Help files are also available separately at Quest's Support Portal.

About CMN Program Parameters

Introduction to CMN parameters

CMN's Directory Connector, Mail Connector and Free/Busy Connector are configurable, and most of their feature options are set in CMN's Management Console. The Management Console is a friendly interface between you and a set of configuration files that CMN components read every time they are started.

Configuration settings for CMN’s different components are saved in separate configuration files: a Configuration.xml file for each of the Directory Connector and Mail Connector (two files with the same name, but saved in the different CMN component subfolders), and another set of configuration files for the Free/Busy Connector (in the FBC's component subfolder). The Management Console provides screens with labeled fields to simplify entering and editing the configuration settings in those files.

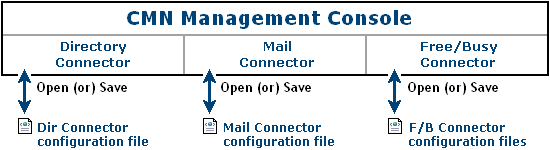

When you start the Management Console, CMN automatically loads the currently active configuration values for all three CMN components. Once the Management Console is running, however, component configuration data is saved and opened separately, for one component at a time, as shown here:

While the Management Console lets you enter and change most CMN feature options, some options can be set and changed only by manually editing the corresponding Configuration.xml file. This Program Parameters Reference documents those parameters.

NOTE: All FBC program parameters in the current release are associated with UI fields in the FBC Management Console. As such, these parameters are not documented in this Reference, since they should not be edited manually (in the xml files) except at the direction of Quest Support.

The contents of a configuration XML file can be edited by any XML editor, as described separately below.
