Alarms Overview

The Alarms Overview groups the OpenStack alarms by object type and severity level. For monitoring alarms, use it as a starting point to quickly identify the sources of problems within the OpenStack infrastructure.

This view appears at the top of the OpenStack Alarms dashboard, preceding the Alarms List view.

Figure 35. Alarms Overview

The alarm counts are the total number of alarms for each alarm type: Normal, Warning, Critical, and Fatal. You can drill down on any alarm count by clicking it. The Alarms dialog box appears with a list of all related alarms.

Alarms List view

Purpose and content

The Alarms List view shows all alarms fired in your OpenStack environment. For each alarm entry, the list shows the severity, the time the alarm was fired, the rule name that triggered the alarm, and the alarm message.

The Alarms List view appears on the OpenStack Alarms dashboard, just below the Alarms Overview.

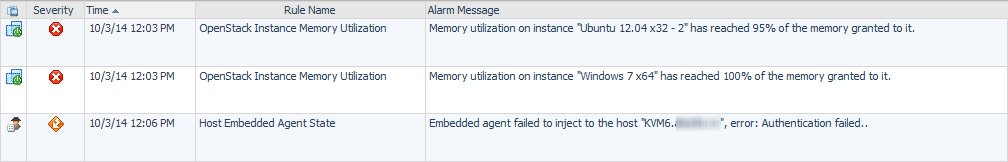

Figure 36. Alarms List view

Description of the data displayed

Table 1. Alarms List fields
Data displayed	Description
Object indicator	Indicates which object type the alarm is related to.
Severity	Indicates the alarm severity: Warning, Critical, or Fatal.
Time	The time at which the alarm was generated.
Rule Name	The name of the rule that triggered the alarm.
Alarm Message	An explanation about why the alarm occurred.

Where to go next

Clicking an alarm’s Severity, Rule Name, or Alarm Message displays the Alarm Created dialog box, showing additional information about the alarm.

Figure 37. Alarms Created dialog box

Clicking an alarm’s object indicator takes you to summary information for that particular resource object.

OpenStack Explorer Dashboard View

The OpenStack Explorer dashboard view takes up the entire display panel of the browser interface. For more information about the OpenStack Explorer dashboard, see Using the OpenStack Explorer dashboard .

Purpose

The OpenStack Explorer dashboard view is the most content-intensive view in Foglight for OpenStack. It provides access to summary (of alarms and resource utilizations) information for the object being viewed in the OpenStack Explorer dashboard.

Figure 38. OpenStack Explorer dashboard view

Content and embedded views

The metrics and the amount of detail displayed in each view varies depending on the resource object or group of objects you select on the Topology tab.

The OpenStack Explorer heading, at the top of the OpenStack Explorer dashboard view, consists of three main components:

•

An icon and text that specify the type of selected object or group of objects.

•

An alarm summary for the selected object.

•

Navigation tabs.

The alarm summary at the right of the view heading shows you the number of alarms at each severity level that are outstanding for the selected object. When you click an alarm count, you get a pop-up that lists the active alarms for the object.

Navigation tabs are located immediately below the selected resource object’s name. Click these tabs to see valuable information about the object being viewed.

Foglight tiles display information about the cloud infrastructure and the alarms currently active for the entities in the OpenStack infrastructure. For more information on Foglight tiles, see Foglight tiles .

For information the various tabs available in OpenStack Explorer, see the following:

•

•

•

•

•

•

Resource Utilizations view

•

Storage

•

Summary tab

•

Summary and Resource Information view

•

Topology tab

Performance tab

This tab is available when the OpenStack Explorer is open. To find it, on the Topology tab on the navigation panel, select any configured object of type Region, Availability Zone, Host Aggregate, Host, Instance, or Volume. In the OpenStack Explorer, open the Performance tab.

NOTE: The Performance tab for Volume contains one embedded view, Volume Usage.

Purpose and content

This tab displays the resource utilization for the selected object or group of objects over a selected time.

Figure 39. Availability Zone: Performance tab
