The Package Details page details all the information available about a replicated package. The page is accessed by selecting a package hyperlink on one of the following pages:
·On the Working tab of the Monitor Replicator page, under the Package heading within the Active Package Threads section. Only accessible from this point when there are active threads currently working on package.
·On the Transfers tab of the Monitor Replicator page, by selecting the package symbol under the package heading for a specific transfer. Only accessible from this point when there are active transfers currently in progress.
·On the Packages tab of the Monitor Replicator page, by selecting the map name for a specific package. Only accessible when the package you wish to monitor has not been cleared from the page.

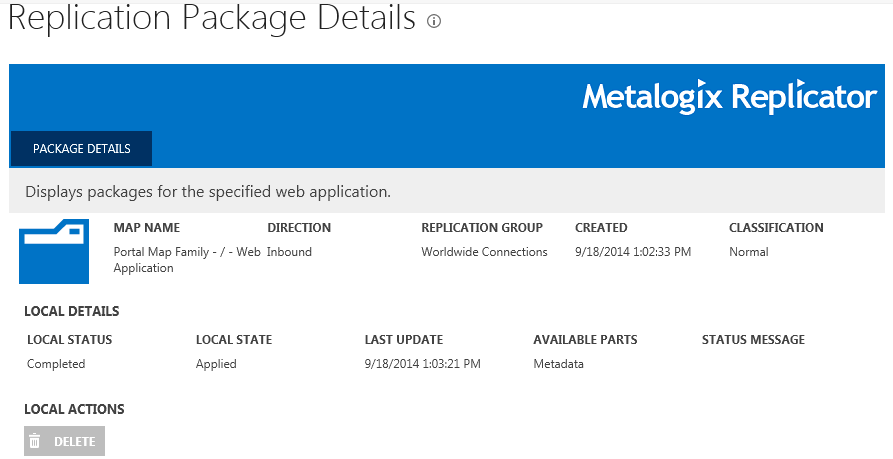

The package information detailed at the beginning of the package details page.
This information details the following:
Specification |
Description |
---|---|
Map Name |
The name, path, and scope of the map for events in this package. |
Direction |
The package's direction, either Outbound if it is being sent from this web application or Inbound if it is being received by this web application. |
Replication Group |
The replication group the package was sent to. |
Created |
The time when the package was created. |
Classification |
The Classification for the package. |
The Local Details section provides an overview of the packages statuses on the local server, the server from which you are looking at the package.
The following table details the local details available for a package.
Specification |
Description |
---|---|
Local Status |
The status of the package on this web application. |
Local State |
The state of the package on this web application. States include: New, Extracted, Accepted, Built, Received, Applying, Applied, and Missing. |
Last Update |
The time when the local status last changed. |
Available Parts |
The parts of the package that is available on this web application for replication to other web applications. |
Status Message |
Message describing the status of the package. |
This section allows you to delete the package on the local server.
