Outbound Replication Connections

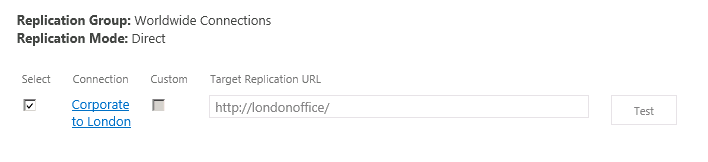

The Outbound Replication Connection section displays the default Replication Connection associated with a specified Replication Group.

METALO~3_img87

info

NOTE: This parameter can only be edited for the Root Replication Map.

Column

Description

Select

Select or clear the Outbound Replication Connections over which Outbound Events are to be replicated or not replicated

Connection

This is the name of the connection

Custom

If you would like to replicate to an alternate path on the target web application then you can choose Custom, and enter the path in the field. "Test" verifies that the path exists on the target web application.

Target Replication URL

This is the address of the target where Replicated items are directed.

Advanced Settings

Select whether to enable column matching on Title and Created metadata fields.

configure replication map settings 1

Selecting yes will allow inbound events to be matched based on Title and Created metadata fields in order to prevent duplicate items from being created on the Target Web Application. Selecting No, means that no matching will be attempted and as a result duplicate items or documents may be created on the Target Web Application.

Excluding Content From Replication

Replicator allows you to control what does and does not get replicated. There are certain ways in which to exclude content from replication.

SharePoint Item

Excluded By

Events

Specific events, such as list item deletions, site title changes, or permission changes, can be disabled from replication, allowing you to manage these settings separately and independently for each web application

List Items

Excluded by Rules.

See the Rules section "Manage Replication Rules" for more details; also note the section entitled "Rule Examples".

Folders

Excluded by Rules.

See the Rules section "Manage Replication Rules" for more details; also note the section entitled "Rule Examples".

Lists

Excluded by Map Configuration Settings.

See the "Manage Map Families" section for more details.

Sites

Excluded by map family scope and root replication URL settings.

See the "Manage Map Families" section for more details.

Site Collections

Excluded by map family scope and root replication URL settings.

See the "Manage Map Families" section for more details.

Manage Map Family

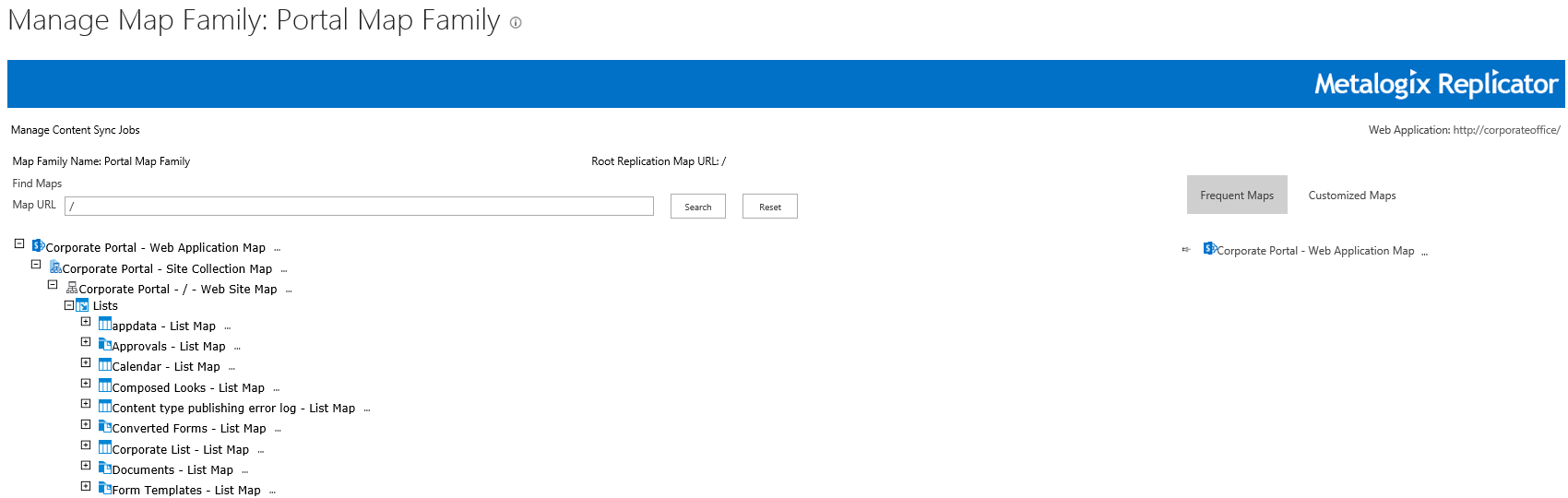

The Manage Map Family page is accessed by clicking on the View Maps link on the Manage Map Families page.

This page allows you to view the hierarchy of a Map Family including any customized Replication Maps.
Manage Map Family4

Refer to the following table for information about the Manage Map Families screen.

Parameter

Description

Manage Content Sync Jobs

When selected, Manage Content Sync Jobs will navigate to the Manage Content Sync Jobs page, allowing users to view current scheduled queue jobs. See the Manage Content Synchronization Jobs page for an overview of the page.

Web Application

Select which Web Application is being configured.

To change the Web Application, click the field and select another Web Application from the list.

Map Family Name

Displays the Map Family name.

Root Replication Map URL

Displays the Root Replication Map URL.

Frequent Maps

Displays a maximum of the 15 most frequently used maps.

Customized Maps

Displays the maps that have been customized.

Find Maps

Allows you to manually search for a map by its URL.

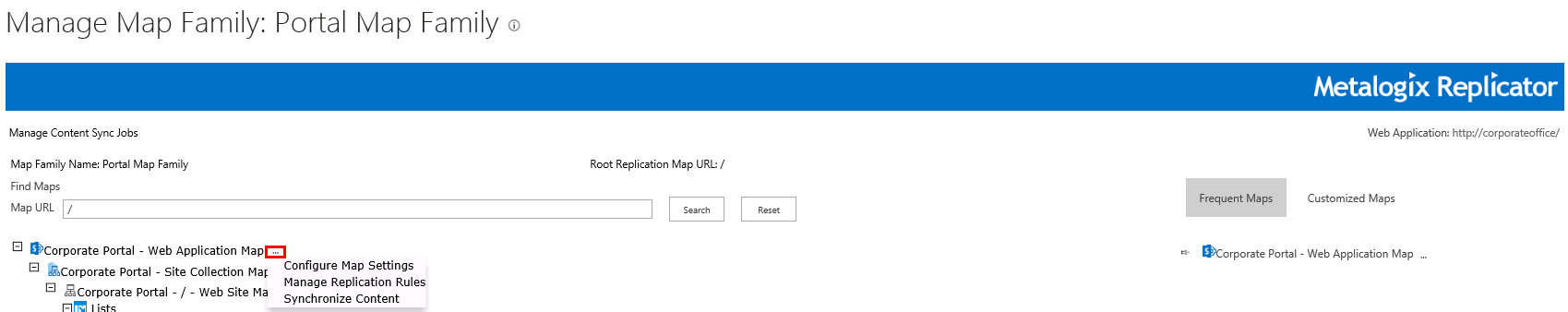

This page also provides links to the Configure Map Settings, Manage Replication Rules, and Synchronize Content pages. These are accessed by clicking the (...) next to the name of the map family for which you would like to make changes/configure settings.

manage map family5
