Replicator 7.4 - Reference Guide

Metalogix Replicator Documentation Replicator Central Administration Configure Web Application Manage Replication Groups Manage Replication Connections Manage Classifications Manage Map Families
Actions Configure Map Family Configure Replication Map Settings Manage Map Family
Monitor Replicator About Metalogix Replicator Site Settings

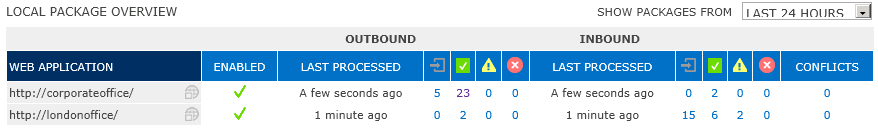

Local Package Overview

Local package overview shows the package overview for the specified time period. Specify the time period by selecting it from the "Show Packages From" drop down list.

METALO~3_img145

The columns for the local package overview are detailed below:

Statistic

Description

Web Application

The web application that local package overview is provided or.

Enabled

Whether the web application is enabled

Outbound Last Processed

The last time that outbound packages were processed on this web application.

Outbound

METALO~3_img146 Active

The number of outbound packages that have a Status of Active on this web application. Selecting this number will take you to the Packages tab.

Outbound

METALO~3_img147 Completed

The number of outbound packages that have a Status of Completed on this web application. Selecting this number will take you to the Packages tab.

Outbound

METALO~3_img148 Warnings

The number of outbound packages that have a Status of Warnings on this web application. Selecting this number will take you to the Packages tab.

Outbound

METALO~3_img149 Errors

The number of outbound packages that have a Status of Error on this web application. Selecting this number will take you to the Packages tab.

Inbound Last Processed

The last time that inbound packages were processed on this web application.

Inbound

METALO~3_img146 Active

The number of inbound packages that have a Status of Active on this web application. Selecting this number will take you to the Packages tab.

Inbound

METALO~3_img147 Completed

The number of inbound packages that have a Status of Completed on this web application. Selecting this number will take you to the Packages tab.

Inbound

METALO~3_img148 Warnings

The number of inbound packages that have a Status of Warning on this web application. Selecting this number will take you to the Packages tab.

Inbound

METALO~3_img149 Errors

The number of inbound packages that have a Status of Error on this web application. Selecting this number will take you to the Packages tab.

Conflicts

Number of conflicts on the web application. Selecting this number will take you to the Conflicts tab.

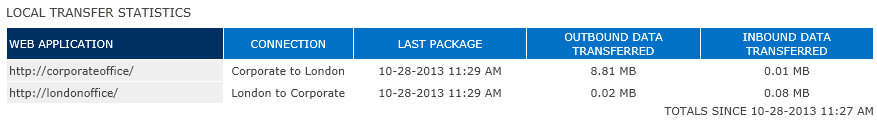

Local Transfer Statistics

Local Transfer Statistics provides an overview of the transfer statistics for the specified time period.

METALO~3_img154

The columns for the local package overview are detailed below:

Statistic

Description

Web Application

The web application that local transfer statistics are provided for.

Connection

The connection that this web application is using for package transfers.

Last Package

The last time at which a package was created for transfer.

Outbound Data Transferred

The amount of outbound data that has been transferred from this web application.

Inbound Data Transferred

The amount of inbound data that has been processed on this web application.

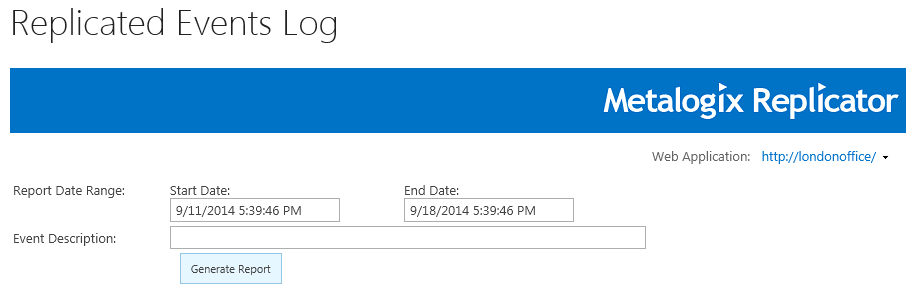

Download Event Log

The Download Event Log link will take you to the Replicator Event Log page.

METALO~3_img155

Click Generate Report to create a replicator event processing log report.

Transaction Logging

Transaction logging stores the following values for each transaction:

·Event ID

·Sequence Number

·Web Application ID

·Server ID

·Replication Map ID

·Package ID

·Event

·Event Capture Time

·Originating Event ID

·Originating Web Application

·Replication Direction

·Description

·Status

·Status Message

·Status Date

·User

·Site ID

·Web ID

·List ID

·Item ID

·Item GUID

·Item Name

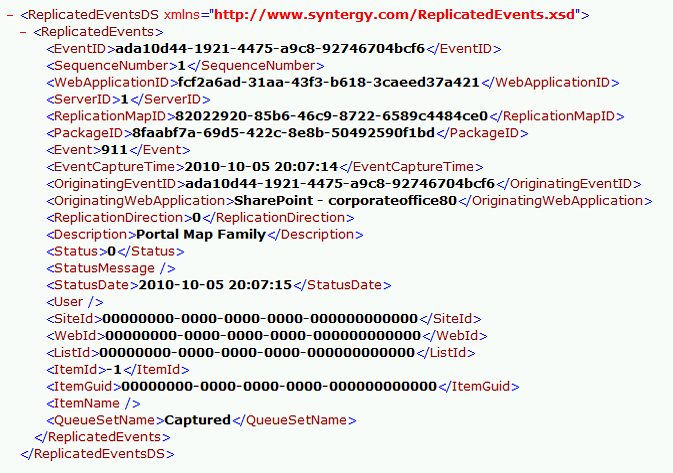

METALO~3_img156

The transaction log can be exported to an XML archive file, which can be opened with any of the following tools:

·Internet Explorer

·Excel (XML format)

·Any other tools that display XML files
