Package Details

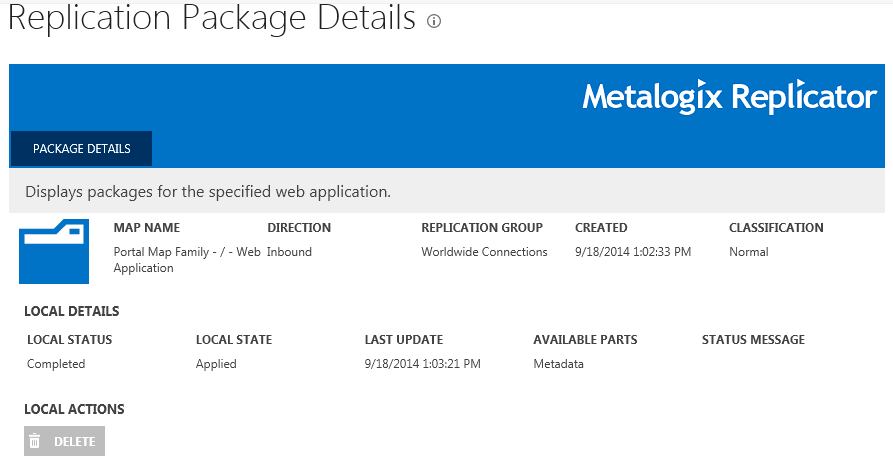

The Package Details page details all the information available about a replicated package. The page is accessed by selecting a package hyperlink on one of the following pages:

·On the Working tab of the Monitor Replicator page, under the Package heading within the Active Package Threads section. Only accessible from this point when there are active threads currently working on package.

·On the Transfers tab of the Monitor Replicator page, by selecting the package symbol under the package heading for a specific transfer. Only accessible from this point when there are active transfers currently in progress.

·On the Packages tab of the Monitor Replicator page, by selecting the map name for a specific package. Only accessible when the package you wish to monitor has not been cleared from the page.

METALO~3_img160

Package Information

The package information detailed at the beginning of the package details page.

METALO~3_img161

This information details the following:

Specification	Description
Map Name	The name, path, and scope of the map for events in this package.
Direction	The package's direction, either Outbound if it is being sent from this web application or Inbound if it is being received by this web application.
Replication Group	The replication group the package was sent to.
Created	The time when the package was created.
Classification	The Classification for the package.

Local Details

The Local Details section provides an overview of the packages statuses on the local server, the server from which you are looking at the package.

METALO~3_img162

The following table details the local details available for a package.

Specification	Description
Local Status	The status of the package on this web application.
Local State	The state of the package on this web application. States include: New, Extracted, Accepted, Built, Received, Applying, Applied, and Missing.
Last Update	The time when the local status last changed.
Available Parts	The parts of the package that is available on this web application for replication to other web applications.
Status Message	Message describing the status of the package.

Local Action

This section allows you to delete the package on the local server.

METALO~3_img163
