Managing storage media

•
Viewing storage summary
•
Viewing disk storage details
•
Viewing tape storage details
•
Managing tape storage media
•
Managing savesets

Viewing storage summary

To view storage summary:
1
In the Navigation pane, click Explore Storage.
2
On the Explore Storage page, you can view the following information.

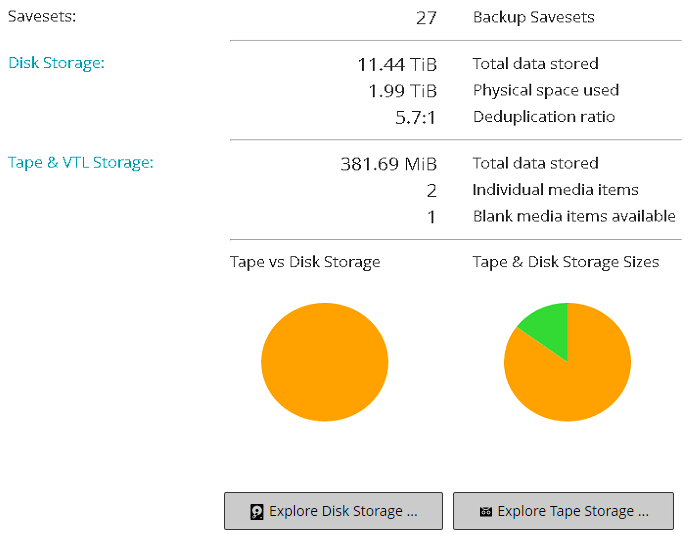

Figure 25. Explore Storage page

Table 92. Explore Storage page
Item

Description

Saveset

This area shows the total backup savesets stored in disk-based and tape-storage devices.

Disk Storage

This area shows the following information:

•
Total data stored: Total data stored in disk-based backup devices (total data size without deduplication).
•
Physical space used: Total physical space used by backups stored in disk-based backup devices (total data size with deduplication).
•
Deduplication ratio: The ratio of size of data before deduplication to the size of data after deduplication.

Tape & VTL Storage

This area shows the following information:

•
Total data stored: Total data stored in physical and virtual tape media.
•
Individual media items: Number of media items used by the backups stored in physical and virtual tape media
•
Blank media items available: Number of blank media items available on the added physical and virtual tape devices.

Tape vs Disk Storage (Pie chart)

The pie chart shows the total data stored in tape- and disk-based devices.

Total data stored in disk-based backup devices.

Total data stored in physical and virtual tape media.

Tape & Disk Storage Sizes (Pie chart)

The pie chart shows the total data stored in tape-based devices, total data stored in disk-based devices, and physical space used by backups stored in disk-based devices.

Total data stored in disk-based backup devices (total data size without deduplication).

Total physical space used by backups stored in disk-based backup devices (total data size with deduplication).

Total data stored in physical and virtual tape media.


3
To explore disk or tape storage repository, click the corresponding button in the Operations pane. Alternatively, click a link in the Navigation pane to open a different page.

Viewing disk storage details

To view disk storage details:
1
On the Explore Storage page, click Explore Disk Storage.
2
On the Explore Disk Storage page, you can view the repository table.
The page displays the following information:
•
Repository Name: The name of the device or storage container.
•
Type: Device type (for example, NetVault SmartDisk, Quest DR Series system, or Data Domain system).
•
Record Count: Number of data records stored in the device.
•
Saveset Count: Number of savesets stored in the device.
•
Space Free: Amount of space available.
•
Space Used: Amount of space used.
•
Deduplication ratio: The ratio of size of data before deduplication to the size of data after deduplication.
3
By default, the table is sorted by repository name.
You can sort the table by one or more columns, as required. For more information, see Sorting records in NetVault Backup WebUI.
To view the page size setting, sorting order in the table, export the records, or edit table settings, click the icons at the lower- right corner of the table. For more information, see Customizing tables in NetVault Backup WebUI.
4
You can use the Search option to filter the table data and quickly find entries that contain the specified string in any column values. You can also include wildcards (“?” or “*”) in the search filter string.
5
To view the details of a particular repository, select the item in the repository table, and click Explore Repository.
6
On the Explore Disk Storage Repository page, you can view the following information:
•
Repository summary: This area shows the following information:
•
Repository name: The name of the device or storage container.
•
Data stored: Total data stored in the device (total data size without deduplication).
•
Physical space used: Total physical space used by backups stored in the device (total data size with deduplication).
•
Space available: Free space available in device.
•
Deduplication ratio: The ratio of size of data before deduplication to the size of data after deduplication.
•
Storage data type: Pie chart showing the percentage of storage used by various plug-ins.
•
Saveset table: The Saveset table lists all backups stored in the repository. It shows the saveset creation date, saveset name, saveset size, job ID number, instance number, and phase number.
By default, the table is sorted by saveset date. You can sort the table by one or more columns, as required. You can also use the Search option to filter the table data and quickly find entries that contain the specified string in any column values.
To filter the saveset list, click Filter Options, and set the filter criteria:
•
To view savesets created for a particular client, click the Client list, and select the client in the list.
To view savesets created during a particular period, click the Saveset Date list, and select one of the following options: Last 24 hours, Last Week Last Month, Last 6 Months, Last Year, or Any
The Explore Disk Storage Repository page loads a maximum of 5000 records initially. The total number of records fetched is displayed at the lower-right corner of the table.
You can click Load more to load the next set of records, if available. Each load action fetches a maximum of 5000 records. This button is disabled if there are no more records to load.
7
To perform a storage-related task, click the corresponding button in the Operations pane. Alternatively, click a link in the Navigation pane to open a different page

Viewing tape storage details

To view tape storage details:
1
On the Explore Storage page, click Explore Tape Storage.
2
On the Explore Tape Storage page, you can view the media table.
The page displays the following information:
•
Label: Media label.
•
Group: Media group label.
•
Barcode: Media barcode.
•
Library: Name of the library.
•
Record Count: Number of data records stored in the tape.
•
Saveset Count: Number of savesets stored in the tape.
•
Space Free: Amount of free space available.

*
NOTE: The amount of free space available on a tape is not calculated in NetVault Backup. This information is obtained from the tape drive and displayed on the Explore Tape Storage page.
•
Space Used: Amount of space used.
•
Online: Tape is online () or offline ().
3
By default, the table is sorted by media label.
You can sort the table by one or more columns, as required. For more information, see Sorting records in NetVault Backup WebUI.
To view the page size setting, sorting order in the table, export the records, or edit table settings, click the icons at the lower- right corner of the table. For more information, see Customizing tables in NetVault Backup WebUI.

4
You can use the Search option to filter the table data and quickly find entries that contain the specified string in any column values. You can also include wildcards (“?” or “*”) in the search filter string.
5
To view the details of a particular tape, select the item in the list, and click Explore Media.
6
On the Explore Tape Media Item page, you can view the following information:
•
Tape summary: This area shows the following information:
•
Barcode: Media barcode.
•
Label: Media label.
•
Group: Media group label.
•
Library: Name of the library where the tape resides.
•
Offsite Location: Off-site location, if specified.
•
Media Type: Disk file (virtual tape) or physical tape.
•
Data Stored: Total data stored in the tape.
•
Space Available: Amount of free space available.

*
NOTE: The amount of free space available on a tape is not calculated in NetVault Backup. This information is obtained from the tape drive and displayed on the Explore Tape Storage page.
•
Reuse Policy: Tape can be reused or not.
•
Date Last Written: Date on which the last write operation was performed.
•
Date Last Read: Date on which the read operation was performed.
•
Times Reused: The number of times the tape has been reused.
•
Read Errors: Number of read errors.
•
Write Errors: Number of write errors.
•
Usable: Tape is usable or unusable.
•
Read-Only: Tape is marked read-only or not.
•
Media Online: Tape is online or offline.
•
Media Usage: Pie chart showing the amount of storage used by various savesets.
•
Saveset table: The Saveset table lists all backups stored in the repository. It shows the saveset creation date, saveset name, saveset size, job ID number, instance number, and phase number.
By default, the table is sorted by saveset date. You can sort the table by one or more columns, as required. You can also use the Search option to filter the table data and quickly find entries that contain the specified string in any column values.
7
To perform a storage-related task, click the corresponding button in the Operations pane. Alternatively, click a link in the Navigation pane to open a different page
