OpenStack Explorer reports

There are several predefined report templates included with Foglight for OpenStack. When you choose an object type or particular object instance in the Topology view, the Reports button on the top-right of the Foglight browser is populated with predefined reports. Run the reports to record data for analysis and sharing outside of Foglight.
The reports available when clicking the Reports button varies by resource object chosen. For a list of available predefined OpenStack report templates, see Available report templates .

Using the OpenStack Alarms dashboard

The OpenStack Alarms dashboard shows the alarms that have been triggered but not cleared. This dashboard can be used to isolate a specific alarm.

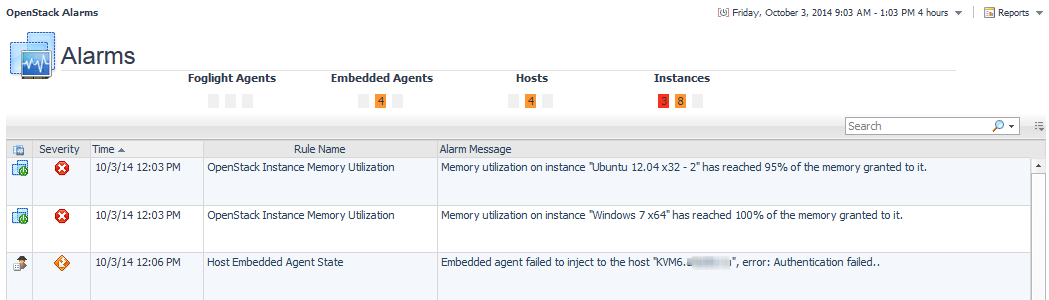

Figure 36. OpenStack Alarms dashboard
To access the OpenStack Alarms dashboard:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Dashboards, choose OpenStack > OpenStack Alarms.
The OpenStack Alarms dashboard appears in the display area.
Filtering Alarms
The OpenStack Alarms dashboard provides some filtering controls. Use the OpenStack Alarms dashboard to isolate alarms related to a specific bottleneck or issue in your OpenStack environment. The Search box appears in the top-right corner of the alarm list.
Type a text string and press ENTER. The list of alarms refreshes, showing only those alarms that match that filter.
For more advanced filtering, click the down-facing arrow, and in the list that appears, click Advanced Search. A dwell appears.

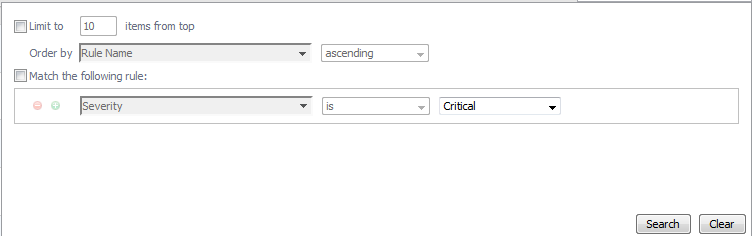

Figure 37. Advanced Search
To search on an alarm severity or rule name, or to combine different search criteria, update or add one or more rules in the Match all the following rules area.

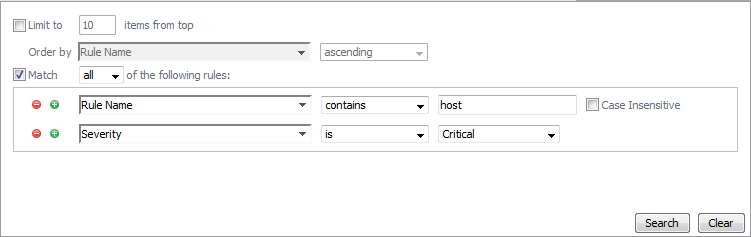

Figure 38. Filtering rules
To remove a filter, click Clear. The list of alarms refreshes, showing all the generated alarms.

Using the OpenStack Dependency dashboard

The OpenStack Dependency dashboard view shows a navigation tree representing a simplified map of your monitored objects and pertinent alarm information. On the right of each object in the Infrastructure and Users views status indicators are displayed. Each status indicator represents the alarm of the highest severity that is generated against the object. For an object type container, the status indicator represents the alarm of highest severity that is outstanding for all objects of that type.
The information appearing in the OpenStack Dependency dashboard is organized into two tabs and a display area in the right frame:
•
Infrastructure tab
•
Users tab
•
OpenStack Dependency map
Infrastructure tab
On this tab, your monitored OpenStack environment appears as the root of the navigation tree, with all its Regions, Availability Zones, Host Aggregates, Hosts, Instances, and Volumes. This structure illustrates the hierarchy of monitored objects in your OpenStack infrastructure.
Use this view to quickly locate a desired object using the logical hierarchy within your Openstack infrastructure, and to explore any related dependencies.

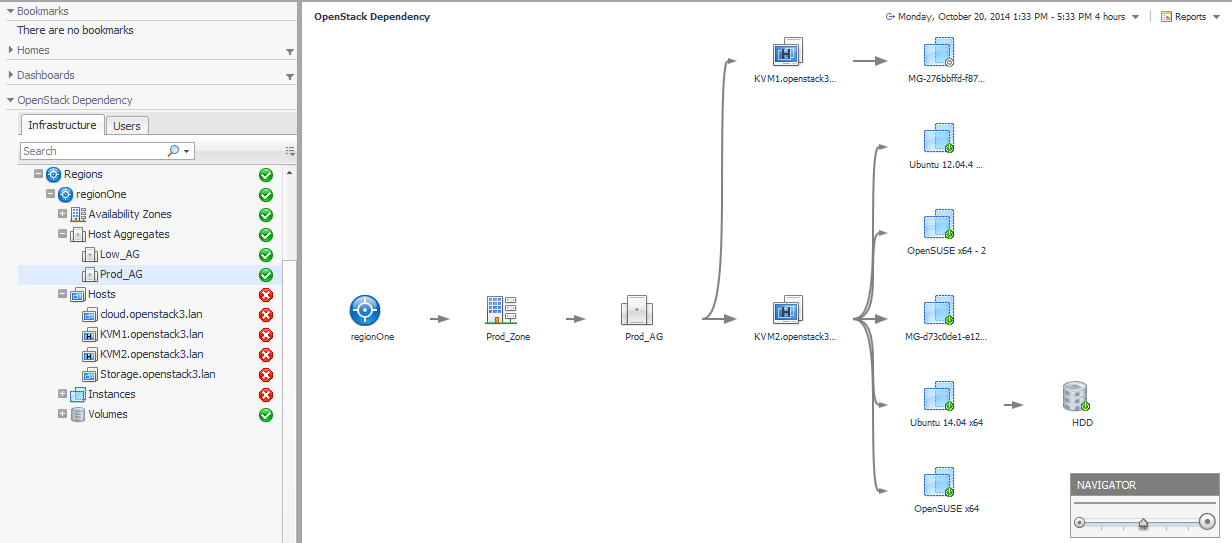

Figure 39. OpenStack Dependency dashboard: Infrastructure tab
The Infrastructure tab allows you to quickly and easily see which hosts are running a hypervisor and which hosts are not. A host icon without the H identifier is not running a hypervisor. The H indicator in a host icon identifies that host as running a hypervisor.
In the preceding dashboard, KVM1 and KVM2 are computer nodes running a hypervisor. cloud and Storage are controller nodes running scheduling and storage services respectively.
Users tab
The Users tab focuses on the relationships between containers and users. To open this tab, on the navigation panel, under OpenStack Dependency, click Users.
Like the Infrastructure tab, this tab also displays the monitored OpenStack environment as the root of the navigation tree, showing Domains, Projects, Groups, and Users.
*
NOTE: Users can be associated with multiple projects with a specific role in each project.

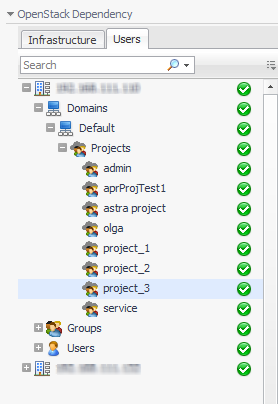

Figure 40. Users tab
OpenStack Dependency map
The OpenStack Dependency dashboard displays a dependency map showing the selected object and any dependencies that it may have with other physical and virtual components in your monitored environment.
Click a Region, Availability Zone, or Host Aggregate object to view summary information. Clicking a Host, Instance, or Volume displays configuration information.

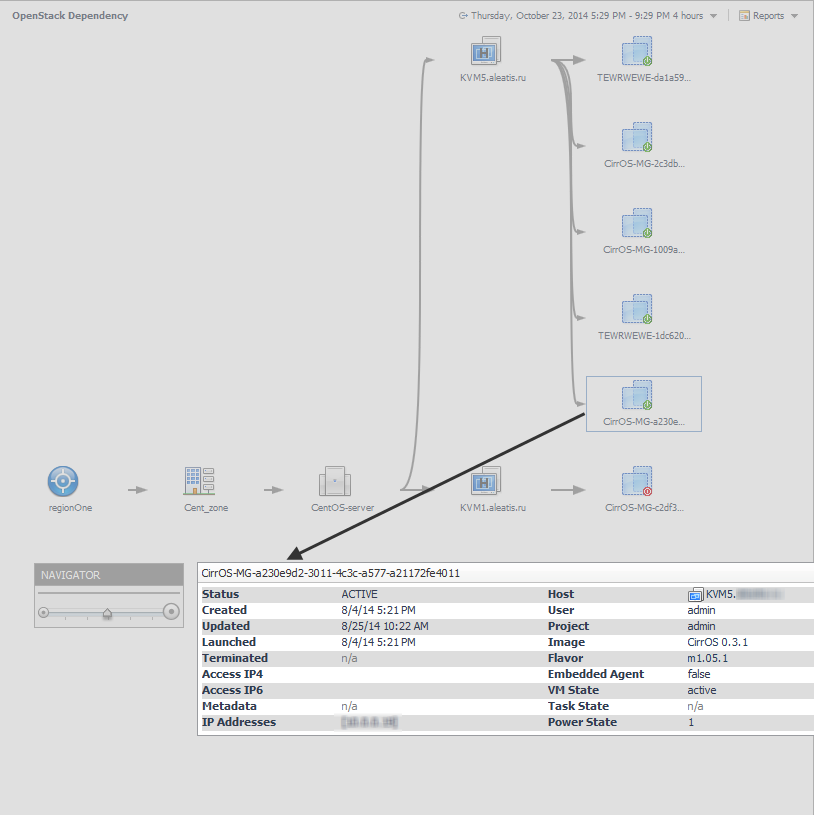

Figure 41. Pop-up displaying configuration information
Zoom in or out using the slider on the NAVIGATOR to reduce or enlarge the topological view. The NAVIGATOR can be dragged and positioned anywhere on the topological view.

Reference

Foglight for OpenStack includes the following views:
•
Action panel
•
Agents view
•
Alarm Analytics tab
•
CPU tab
•
FAQts tab
•
Host
•
Memory tab
•
OpenStack Alarms dashboard view
•
OpenStack Explorer Dashboard View
•
Quick View
•
Reports tab
•
Resource Utilizations view
•
Storage
•
Summary tab
•
Summary and Resource Information view
•
System Info tab
•
Topology tab
