Foglight for OpenStack 5.6.15 - User Guide

Using Foglight for OpenStack Interacting with Foglight for OpenStack dashboards Reference

Using the OpenStack Environment dashboard

A typical OpenStack environment contains a combination of physical and virtual components. You can view the overall state of all OpenStack objects on the OpenStack Environment dashboard.
To access the OpenStack Environment dashboard:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, under Dashboards, choose OpenStack > OpenStack Environment.
The Monitoring, Reports, FAQts, Administration, and System Info tabs are available for selection.

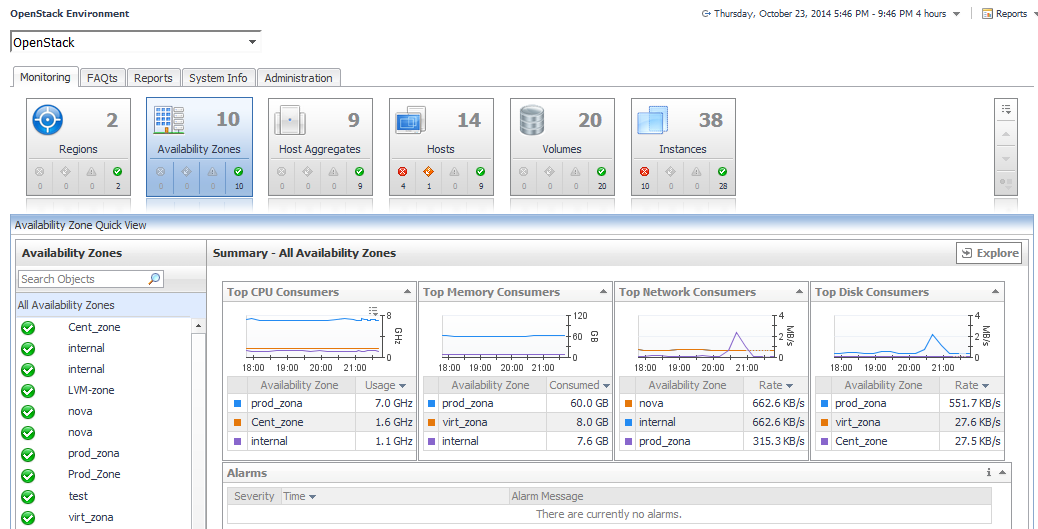

Figure 10. OpenStack Environment dashboard
For more information, see these topics:
•
Monitoring tab
•
Reports tab
•
System Info tab
•
Administration tab
•
Exploring the OpenStack Environment Monitoring tab

Navigating between View object instances

Choosing a specific View server instance from the drop-down list in the top-left refreshes the OpenStack Environment dashboard with the information about the selected environment.
Figure 11. View selector

Monitoring tab

Use the Monitoring tab to see the quantity and overall health of your OpenStack cloud infrastructure resource objects using the Foglight tiles. The Monitoring tab contains the Monitoring view with six Foglight tiles and the Quick View.
Click a tile to see a list of infrastructure resource objects in the left frame of the Quick View along with their overall status, and relevant information related to the selected resource object in the summary frame.
For more information about the data appearing on this dashboard, see Exploring the OpenStack Environment Monitoring tab .

FAQts tab

The FAQts tab provides predefined questions and answers. For more information, see FAQts tab .
