Foglight for Application Operations 5.9.8 - User Guide

Introducing Foglight APM Monitoring Transactions Examining Response Times Examining Error Breakdowns Viewing Real User Activity from a Geographical Perspective Using the SOC Transactions Tab Creating Custom Drag-and-Drop Dashboards APM Tile and View Reference Appendix: Enabling End User Transactions from FxM and FxV

Linking a custom dashboard to the Explore icon for a service

After you have created the dashboard, you can add a link to it from the Explore icon for a service in the SOC.

*
NOTE: This features requires Foglight Management Server 5.6.4 or later.
To link a custom dashboard to the SOC:
1
Open the Service Builder. Under Dashboards, click Services > Service Builder.
2
Locate the service in the Component list (for example, Medical Records).
3
Click the edit icon for the tier. The Edit Service Wizard opens.
4

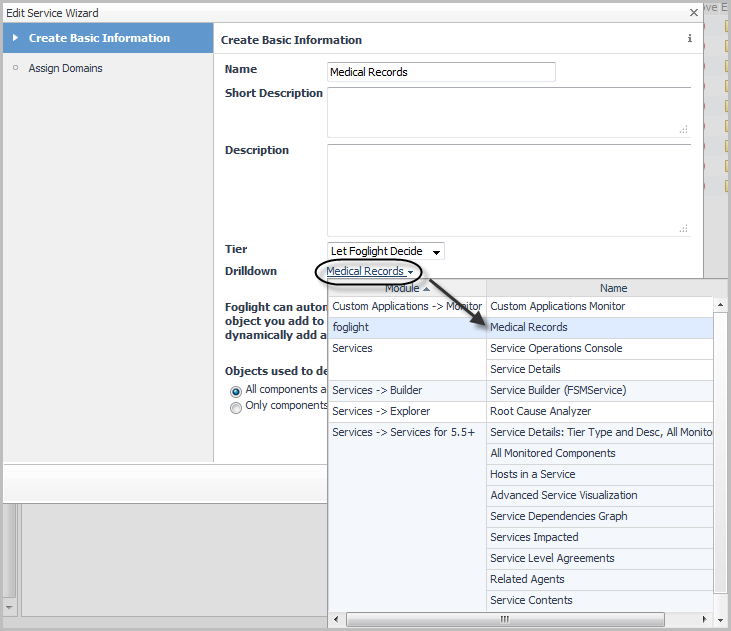

On the Create Basic Information page, click the text link beside Drilldown. A list opens.
5
Locate the custom dashboard to which you want to link.
6
Click the name of the dashboard.
The list closes, and the name appears on the Create Basic Information page.
7
Click Finish.
Now, return to the SOC and click the Explore icon for the service.

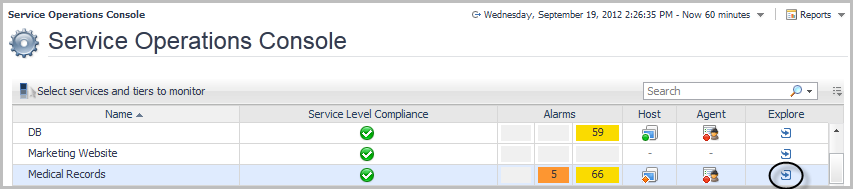

Figure 57. Service Operations Console dashboard
The custom dashboard opens.
For more information about creating custom dashboards, see the Foglight User Help.




APM Tile and View Reference

This section contains reference information about APM-related tiles and views. Read this section to find out more details about the metrics appearing on these views.
Foglight displays monitoring data in views that group, format, and display data. The main types are described here.
Dashboards are top-level views that contain lower-level views. The dashboards supplied with Foglight, as well as those created by users, are accessible from the navigation panel.
Lower-level views in Foglight can be added to dashboards or can be accessed by drilling down from a dashboard. They receive and display data directly from the Management Server or from other views. Some views filter or select data that appears in other views in the same dashboard. Some are tree views with expandable nodes for selecting servers, applications, or data.
Foglight for Application Operations includes the Transactions dashboard, and the Transactions tab on the Service Operations Console (SOC), which allow you to monitor transactions using a combination of tiles and drill-down views when the appropriate options are selected. The sections that follow describes these tiles and views in more detail.

*
NOTE: If you build services for the SOC using the traditional Service Builder in Foglight (Dashboards > Services > Service Builder), you must manually identify and select the appropriate topology objects. The topology object names are provided here, below the image of the associated tile.
For a general introduction to the APM tiles and detail views, see Overview of APM tiles and Overview of Detail views.
The following table includes a list of monitored domain icons and links to their matching tile views.

Table 5. Monitored domain tiles
Tile Icon
Tile Name
Application Servers - .NET tile
Application Servers - Java tile
DB2 tile
Host tile
JMX tile
MQ tile
Oracle tile
OS tiles
•
Server - Apache Monitor tile
•
Application Monitor tile
•
Log Filter tile
•
Web Monitor tile
Pivot tiles
Real User (APM) tile
Real User (FxM) tile
Sequence tile
SQL Server tile
Sybase tile
Synthetics tile
•
Multi-Location Synthetics tile
•
Single-Location Synthetics tile
Virtual Hyper-V tile
VMware tile
For a list of topology object names associated with these tiles, see Topology object name reference table.

Overview of APM tiles

Foglight for Application Operations includes a tile view for each monitored domain. In order to populate these tiles, the appropriate Foglight cartridge must be installed and configured to monitor the domain or component. For example, in order to view the Application Servers - Java tile, you must install Foglight for Java EE Technologies and configure it to monitor at least one Java™ application server.
The metrics displayed on a tile are specific to the domain, but the overall look and functionality of the tiles are common. For example, the following tile presents JMX data:

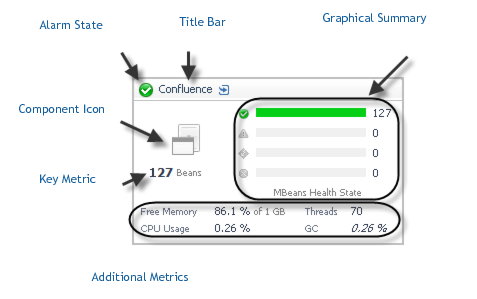

Figure 65. An example of a JMX Server domain tile
Topology Object Name: JMXServer

Table 6. Example descriptions of the JMX Server domain example tile
Alarm State
The icon in the top left corner indicates the current state of alarms for the component.
Title Bar
The title bar includes the component name, and the Explore icon . Click the icon to open a detail view. For more information, see Overview of Detail views.
Component Icon
Each component is represented by a unique icon that provides easy, at-a-glance recognition of the domain.
Key Metric
The most important metric for the domain is displayed in the largest font, directly below the component icon, on the left side of the tile. Where no one metric takes precedence (for example, on the Host tile), the current alarms are displayed instead.
Graphical Summary
The right side of the tile displays a graphical summary of key metrics for the component. For example, the JMX tile includes a health breakdown for MBeans, as in the example above. Other domains include a chart of the key metric for the time range selected (such as Response Time), an overall health history (color-coded bar), or a list of session bottlenecks.
Additional Metrics
Additional metrics that are key to the component appear at the bottom of the tile.
NOTE: The values of these metrics are always current, unless the value appears in italics (for example, GC 0.26%). Italicized metrics reflect the period average instead of the current value.

Application Servers - .NET tile

Use the Application Servers - .NET tile to gather performance information about the state of .NET® transactions monitored by Foglight for Microsoft .NET, version 5.9.x or later.
Figure 66. Example of the Foglight for Microsoft .NET tile view
Topology Object Name: CustomApplicationTransaction

Table 7. Description of the Foglight for Microsoft .NET view
Data displayed
•
Hits. The number of calls served in the most recent collection interval.

•
Health History Bar. The color-coded bar represents the alarm state of the monitored component over the time range selected in the SOC. The color of the bar changes depending on the alarm state. Red indicates a Fatal state, orange indicates Critical, yellow means Warning, and green is the Normal state.

•
Response Time. A plot of the request response time.

•
Exceptional Exits. The number of exceptional exits recorded.

•
Bottleneck. Indicates the portion of the application where requests are experiencing slowdowns.

*
NOTE: The Foglight application server monitoring solutions, Foglight for Microsoft .NET and Foglight for Java EE Technologies, share a single tile view as of version 5.9.1. For older versions of the Cartridge for Microsoft .NET, see the .NET tile.
