Real User (FxM) Performance detail view

The Real User (FxM) Performance detail view provides detailed metrics for a single location real user transaction, including time spent in front-end and back-end, SLA and OLA attainment, page request volume, and more.
To access this view, click the title bar of a Real User (FxM) tile, or from the Geographical Perspectives dashboard, click Transaction Detail for an FxM transaction.
For more information, see the following topics:
•
Performance tab
•
Response Time Breakdown tab
•
SLA Violators tab

Performance tab

The Performance tab displays charts of performance metrics and trace analysis information.
Figure 96. Example of the Performance tab view
From here, you can:
•
Click a Trace Analysis chart to drill down to the data in Foglight Experience Viewer (FxV).
•

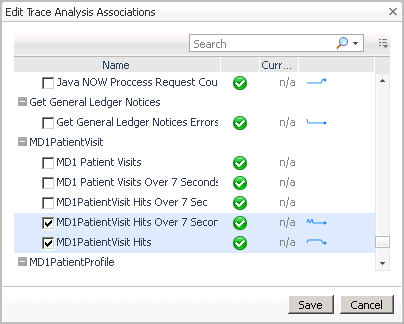

Click Edit Trace Analysis Associations to view and edit the state of the available counters that represent statistics for the monitored application. Select one or more of the available counters in the Edit Trace Analysis Associations dialog box to display their statistics in the Real User Performance detail view, under Trace Analysis.
Figure 97. Edit Trace Analysis Associations dialog box

*
NOTE: This is only possible if your monitoring environment includes an FxV Appliance and the Cartridge for FxV is installed on the Management Server.
•
Click View Recent URLs to drill down to the Foglight Experience Monitor (FxM) views and data.
•
Click View in End User Explorer to see the application statistics in the End User Explorer dashboard. For more information about this dashboard, see the Foglight Experience Monitor Cartridge User and Reference Guide.

Response Time Breakdown tab

The Response Time Breakdown tab displays a component-level breakdown of transaction execution times for the selected end user transaction group.

*
NOTE: The Response Time Breakdown Tab is visible only when Foglight for Java EE Technologies (version 5.8.2 or later), or Foglight for Microsoft .NET (version 5.9.1 or later) is installed and configured on your Management Server. For more information, see Examining Response Times.
Figure 98. Example of the Response Time Breakdown tab view
From here you can:
•
Click Associate Hit Filter Mappings — see Associating FxV hitfFilter mappings for response time breakdowns for details.
•
Click Explore Breakdowns — see Examining Response Times for details.
•
Click a component icon to open the historical execution time chart.
Figure 99. Example of a historical execution time chart for a selected component
This chart provides a comparison of the average execution time for the selected component (in blue), overlaid on the total average execution time for the transaction (in grey). The vertical blue bar on the chart indicates the current timeslice.


*
TIP: If you click a datasource component icon, the details view also includes a Map to Application Component button. For more information, see Mapping datasources.
•
Click More Details to drill down to a detailed view of the selected application component. For example, from an application server component, you can access the Java™ application server details view.

SLA Violators tab

The SLA Violators tab provides a map view that helps you determine if your SLA violations are geographic in nature.

*
NOTE: This view is only available if the specific application has been configured for mapping, and you have configured a map agent. For more information, see Prerequisites for using the Geographical Perspective dashboard, and Associating FxV hitfFilter mappings for response time breakdowns.
Figure 100. Example of the SLA Violators tab view

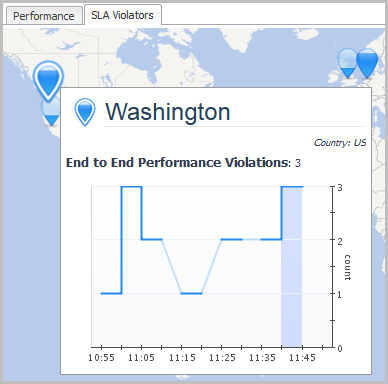

Hover the cursor over a location indicator to view a graph of the service level performance for that location.
Click a location indicator to open the Location Detail view for that location. For more information, see Viewing Real User Activity from a Geographical Perspective.
Click More Details on the SLA Violators tab to open the Geographical Perspective dashboard. For more information, see Viewing Real User Activity from a Geographical Perspective.
