Maximum Number of Objects to Pass to the Selection Builder (MaxObjectsForSelection)
By default, when a ControlPoint user wants to initiate an operation from search or data analysis results, an unlimited number of SharePoint sites can be added to the Selection Builder.
A large number of objects passed to the Selection Builder may, however, significantly drain system resources. ControlPoint Application Administrators can limit the number of sites that are added to the SelectionBuilder by changing the Value of the ControlPoint Setting Maximum Number of Objects to Pass to Selection Builder. (Note that 0 is used as the default value to represent "unlimited.")
If the specified number is met, no additional sites will be added to the Selection Builder and the user will be presented with a warning message.
Maximum Alert Processing Interval (MaxAlertProcessingPeriod)
By default, if a ControlPoint Alerts action is scheduled to run on a recurring basis at an interval measured in minutes, ControlPoint will include180 minutes worth of historical data the first time the job runs.
(Each subsequent run will include all events that occurred since the last successfully-completed job run.)
ControlPoint Application Administrators can, however specify a different time period by changing the Value of the ControlPoint Setting Maximum Alert Processing Interval.
NOTE: This setting applies only when ControlPoint Alerts are scheduled to run on a recurring basis at an interval measured in minutes.
Number of Seconds After Which Browser Reports Server Timeout (SERVERTIMEOUT)
By default, the ControlPoint server timeout value is set to 60 minutes, or 3600 seconds. (The normal browser timeout value is 1.5 minutes.) This value represents the amount of time that the browser will wait for an action or analysis to complete on the server before issuing the following message:
An action or analysis you requested is taking longer than expected. If you requested an analysis, try changing the option to use data from the cache, or narrow the scope of the analysis. If Discovery was running at the time you made your request, try again after Discovery completes.
The default value should be sufficient in most cases. To avoid his issue, administrators can:
·narrow the scope of their action or analysis (in the case of some analyses, you can also use cached instead of real-time data)
·if the Discovery process is running, wait for it to complete.
·perform the action or analysis on a scheduled basis.
ControlPoint Application Administrators can modify server timeout by changing the Value of the ControlPoint Setting Number of Seconds After Which Browser Reports Server Timeout.
For example:
·If you are managing a very large farm and you want to be able to perform very large, time consuming actions and analyses, you may want to increase this value.
NOTE: The size of a search or analysis is also limited by the maximum number of line items that can be displayed in results. See Maximum Line Items in Real-time Reports (REPCAP).
·If you are managing a smaller farm and/or would like to have a server timeout reported more quickly, you can decrease this value.
NOTE: Remember that this value is specified in seconds.

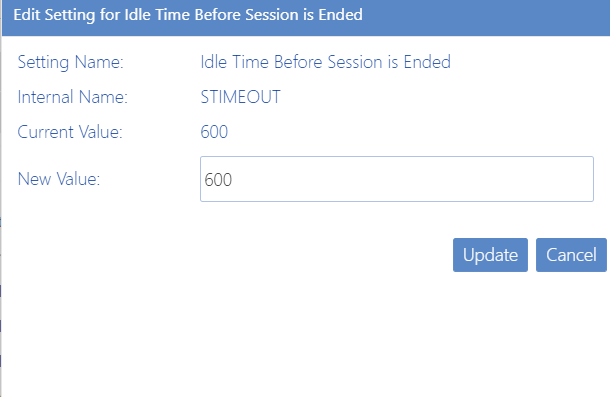

Idle Time Before Session is Ended (STIMEOUT)
By default, the ControlPoint application session timeout property is set to 600. This value represents the number of minutes between requests after which a ControlPoint session times out. ControlPoint Application Administrators can modify the session timeout by changing the Value of the ControlPoint Setting Idle Time Before Session is Ended.
NOTE: This is an Advanced Setting.
NOTE: Remember that this value is specified in minutes. The maximum value for this setting is 525600.
