Toad Data Studio 1.0 - Installation Guide

Create Teradata Connections

Toad allows you to create a full-featured, native Teradata connection. This type of connection provides complete Query Builder, Query Editor, and Database Explorer functionality.


  • You must have a Teradata .NET Data Provider installed before you can create a Teradata connection.
  • To use a Teradata connection in a cross-connection query, you must have a Teradata ODBC driver installed.

To install the Teradata data provider

» Download and install the Teradata .NET Data Provider from the Teradata Web site. Use the version supported by your database version.

To create a Teradata connection

  1. Click on the Connections toolbar (ALT+F+N).
  2. Select Teradata from the Group list.
  3. Enter the connection information in the Create New Connection dialog. Review the following for additional information:


    Server name

    Enter the name of the server hosting the database to which you want to connect.

    Use Single Sign On

    Select if the user is using a single sign-on authentication system.


    Enter the password to use when connecting.

    Tip: After connecting, you can set a master password to further secure your connection in Tools | Options| Environment | Security.

    Session mode

    Displays the session mode, which is always Teradata in a Toad Teradata connection.

    Default database

    (Optional) Enter a default Teradata database for the connection.


    (Optional) Select an existing category or create a new one. See Set Connection Categories for more information.




    (Optional) Select an authentication mechanism from the list.


    (Optional) Enter the parameters required by the selected authentication mechanism. See your system administrator for these values.

    Account string

    (Optional) Enter a new account string.

    Character set

    Select a character set.

    Note: When querying or viewing data in a column defined with GRAPHIC or CHARACTER SET GRAPHIC data type, you must specify a Character set of UTF-16 for the session.

    Use data encryption

    Select if using data encryption.

    Response buffer size

    Specify a Response Buffer Size (in bytes). This allows you to govern the number of rows returned in a single response. To increase the number of rows per response, increase the response buffer size. This strategy might help to improve performance with larger data sets.

    The default value in Toad is set to the maximum, 1040000 bytes.

  4. Click Connect to connect immediately while saving the connection information. Optionally, click Save to save the connection without connecting.

Tip: Connections are stored in the connections.xml file and can be found by clicking the Application Data Directory link in Help | About.

To install a Teradata ODBC driver

» Download and install a Teradata ODBC driver from the Teradata Web site. For a list of supported Teradata ODBC drivers, please see the Release Notes for your version of Toad Data Studio.


  • Toad does not support the Teradata multi-statement request.
  • You can specify which Teradata Data Directory views to use, X views or Non-X views, in Tools | Options | Database | Teradata.


Related Topics

Troubleshoot Connections

Troubleshoot Access Issues

Review the following solutions to help troubleshoot Access issues pertaining to missing functionality and object information and other problems in Toad.

See Create Access Connections for more information about Access connections.

Missing Functionality and Object Information

Issue Cause/Solution

Some queries display in the View tab of the Object Explorer, but do not display in the Query tab.

The Access ODBC driver handles saved queries in the following manner:

  • If the stored query does not contain parameters, it is treated as a view and displays in the View tab.

  • If the stored query contains parameters, it is treated as a stored procedure and displays in the Query tab.

Primary key information is unavailable.

The Microsoft Access ODBC driver does not return primary key information for databases. However, in some cases, Toad can obtain this information through additional methods.

Other Issues

Issue Cause/Solution

A delay occurs between writing a value to a database via one connection and seeing the updated value via another connection.

This delay is the default when you are writing and reading data between two different Jet connections. The delay occurs even if the two connections reside in the same client process.


Use a single connection when updating data.


Troubleshoot Hive Issues

Toad allows you to connect to a Hive data warehouse system. Apache Hive is one of the NoSQL data sources supported by Toad. Toad allows you to connect to Hive using Kerberos authentication.

To create a Hive connection

  1. Click on the Connections toolbar (ALT+F+N).
  2. Select Apache Hive from the Group list.
  3. Enter the connection information in Create New Connection. Select HiveServer2 in Server Type

  4. Select Kerberos in Authentication | Authentication
  5. Review the following for additional information:

Enter the user name to use for this connection in the following format:

user@REALM or domain\user

Hive host realm

Enter the Kerberos realm of the HiveServer2 host.

Hive host FQDN

Enter the fully-qualified domain name (FQDN) of the HiveServer2 host.

Note: If necessary, contact your IT department to obtain this information.

Service name Enter the service name of the Hive server. The default is hive.

To set User name

Toad Data Studio needs to use full name in Kerberos Key Distribution Center (KDC) in the following format:


Note: Please contact your Kerberos/IT administrator for more info on your userid and host name

Before you can successfully connect to Hive using Kerberos authentication, the Toad client computer must have a Kerberos Key Distribution Center (KDC) address entry for the Hive host realm. To define the KDC entry, use the following procedure.

You only need to run this command once for the given realm. To confirm the setting, enter the following command: ksetup. This command should return both the name of the Hive host realm and the KDC name you specified.

Open a Windows Command Prompt as Administrator and enter the following command:

ksetup /addkdc <REALM> <KDC name>

Where <REALM> is the name of the Hive host realm and <KDC name> is the DNS name of the computer running the KDC service for the given realm. ksetup is the Kerberos setup tool in Windows.

Run the command ksetup again to confirm the realm has been added.

To check the port and hive setting in Hive server

These settings may differ in each Hadoop release package:


Toad Data Studio does not use JDBC for connecting to Hive, so do not use HiveServer2 JDBC URL here. Do not use the URL and port information below in Toad Data Studio HIVE connection.

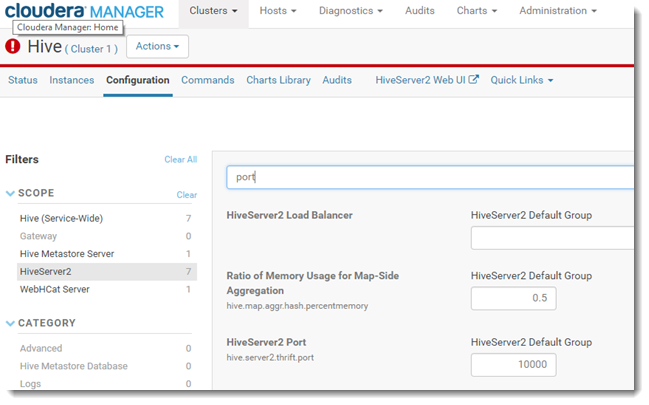

Enter “port” in the filter search box to know the hive transport mode and port configuration in this Hive server.

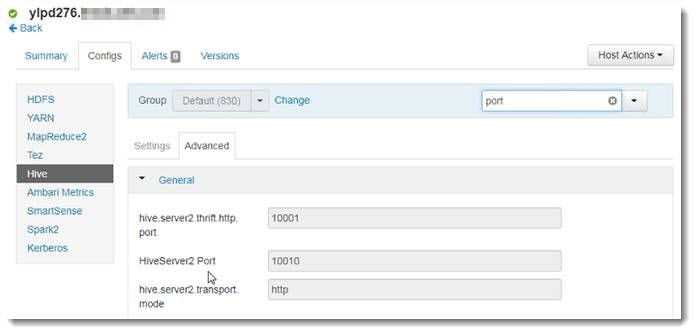

If hive.server2.transport == HTTP, then check “http mode” in Toad, and port number in Toad should use ‘hive.server2.thrift.http.port’.

If hive.server2.transport == binary, then uncheck “http mode” in Toad, and port number in Toad Data Studio should use “HiveServer2 Port”.

Note: HDP does not use SSL when Kerberos authentication is enabled.


Enter “Port” in the search box to check the HiveServer2 Port in CDH because CDH does not support using the Thrift HTTP mode to connect to HiveServer2.

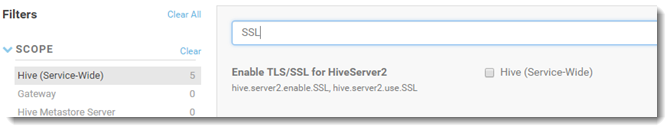

Enter “SSL” in the search box to check if the SSL has been enabled. By default SSL is not used.
