SQL Optimizer for SAP ASE 3.9.1 - User Guide

Introduction Tutorials Preferences Editor Functions SQL Information and Functions Performance Monitor SQL Inspector SQL Collector for Monitor Server SQL Scanner Index Advisor SQL Optimizer
SQL Optimizer Overview Optimization Engine Common Coding Errors in SQL Statements What Function Should l Use to Retrieve the Run Time? Unsatisfactory Performance Results SQL Optimizer Functions SQL Editor Optimized SQL Activity Log
SQL Worksheet SQL Formatter Database Explorer Code Finder Object Extractor SQL Repository Index Impact Analyzer Index Usage Analyzer Configuration Analyzer Migration Analyzer Abstract Plan Manager User-Defined Temp Tables SQL History Legal Information

General Information

The General Information page consists of the following settings:

Item Description

Collector Name

Name of Collector.

Description

Description of Collector.

Created Date Time

The date and time the Collector was created.

Monitor Server Name

The Adaptive Server Enterprise Monitor Server name (defined in the SQL.INI file).

Host name

Name of the host computer.

Port

Number of the port used for the Monitor Server.



Related Topic

Monitor Process

The Monitor Process page consists of the following settings:

Item Description

Whole Server

Monitor all SQL statements currently running from the database server.

Process ID

Monitor all SQL statements currently running which have the specified process ID (spid). The Process ID grid displays information about all current users and processes of the database server, displaying the process ID (spid), login name, host name, database name and the command currently executed (cmd). Click the row of the grid to select the process ID you want to monitor. To select all the process IDs, simply click the Select All checkbox.

Connection Identity

Monitor all currently running SQL statements with specified login name, host name, database name and program name.



Related Topic

Collecting Criteria

The Collecting Criteria page has the following settings:

Section

Item

Description

SQL Type All SQL Monitor all SQL statements currently running.
Selected Type To monitor the selected SQL classification type (Problematic or Complex).

Complex Range

Number of table scan operations

Specify the range of numbers for the table references in the query plan for Complex SQL statement definition.

With full index scan

Specify whether SQL statements with full index scan will be classified as Complex SQL statements.

Problematic Range





With full table scan

Specify whether SQL statements with full table scan will be classified as Problematic SQL statements.

With number of worktables greater than or equal to

(Range = 1 to 99)

Specify that SQL statements involving the number of worktables greater than or equal to the defined number are classified as Problematic SQL statements.

With number of Reformattings greater than or equal to

(Range = 1 to 99)

Specify that SQL statements whose query plan uses reformatting are classified as Problematic SQL. Reformatting is the process of generating a worktable with a clustered index and performing a nested-loop join. The Adaptive Server optimizer may choose this strategy when the table is large and does not have any useful index for a join.

Note: The default settings for the values are taken from the SQL Classification tab in the Preferences window.



Related Topic

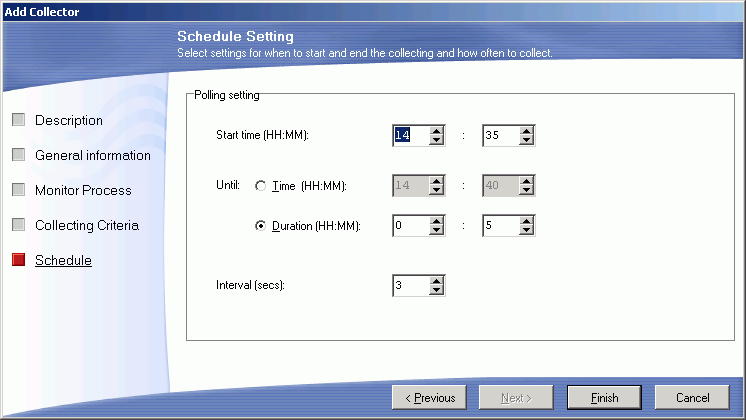

Schedule Settings

The Schedule Settings page consists of the following settings:

Item Description

Start Time

Monitor start time. Default is the current time.

Until (time)

Monitor end time. Default is 5 minutes after the start time.

Until (Duration)

Monitoring duration in hours and minutes. Default is 5 minutes.

Interval

Monitoring interval time in seconds. Default is 3 seconds.

Notes:

  • Decreasing the interval time may affect the database server performance and network traffic.
  • The ad-hoc monitoring from the right-click menu does not use the start, until, and duration time. Monitor will start immediately and is terminated by clicking Abort Monitor.



Related Topic
