Foglight Hybrid Cloud Manager 6.3.0 - User Guide (for Azure environments)

Using Foglight Hybrid Cloud Manager for Azure Monitoring Tab Tags Tab Reports Tab Rule Configuration Tab Usage & Quotas Tab Global Services Tab Administration Tab Optimizer Tab Cost Tab Policy Management Tab

Cost - Overview

The Cost-Overview includes the following elements:

•
Cost Summary: Displays the Total Month-to-date cost, and cost by Azure, AWS, and Google Cloud platforms.
•
Cost Overview: A stacked bar chart to display the Month-to-date Expenses and Forecast by Azure, AWS, and Google Cloud platforms.
*
NOTE: The Month-to-date (MTD) indicates a period starting from the beginning of the current month till the end of the current date.
•
Infrastructure: Displays an Infrastructure resource table across clouds.
•
Accounts Configured: The number of Azure subscription, AWS Accounts, or Google Cloud Billing Accounts.
•
Total VMs: The total number of VMs running in the Cloud platform.
•
Top 5 Business Units by Cost: Aggregates the total cost for Business Units after users assign the AWS accounts, Azure Subscriptions, or Google Cloud Billing Accounts to a BU under Cost > Admin.
•
Cost Breakdown by Platforms: Displays the Month-to-date cost by Azure, AWS, and Google Cloud platforms.

Cost - Azure view

The Cost - Azure view includes the following elements:

•
Overview of all enabled Tenants cost: Lists the enabled tenants, billing of the current month, and billing of the last month.
•
Object tree view: Lists the enabled tenants and business units.
•
Time Range Selector: Lists the time range for billing. The time bar of the Management Server does not take effects on the Cost dashboard.
•
All Enabled Tenants Spending History/Top 5 Tenants by cost/Spending Breakdown: These three views will display the relevant cost information if you select All Enabled Tenants or All Business Units from the object tree view.
•
Tenant Spending History/Top 5 Subscriptions by Cost/Cost Breakdown By Service Type/Subscriptions: These four views will display the cost information of the selected tenant or business unit.
•
Alarms: Lists all alarms against the selected tenant or business unit.
•
Select a Target Tenant displays the cost overview and subscriptions cost for the selected Tenant.
•
Select a Subscription displays the cost overview, virtual machines in subscription, resource group cost overview, and Resource cost overview.

Cost - Admin view

The Cost - Admin view includes the following:

•
Subscriptions tab: Displays the overview of all subscriptions, including the subscription name, tenant, business unit, spending, monthly budget, last month billing, current month billing, and next month projection.
•
Set Monthly Budget: Update monthly budget for selected subscription.
•
Assign Business Unit: Assign the select subscriptions to a Business Unit,
•
Remove from Business Units: Exit the selected business units.
•
Business Units tab: Lists business units name, location, organization, and subscriptions.
•
Add Business Units: Create a business unit, specify Business Unit name, description, location, longitude, latitude, and assign to a new organization or existing organization.
•
Delete Business Units: Delete selected business units.
•
Assign Organization: Select the organization from the list for selected business units.

Policy Management Tab

Policy Management enables user to start or stop their resources by schedule. Currently, only the resource type of VM is supported.

*
NOTE: To use the Policy Management feature, a Foglight Evolve Cloud or Flex license is required. Contact Quest Support to purchase a license.

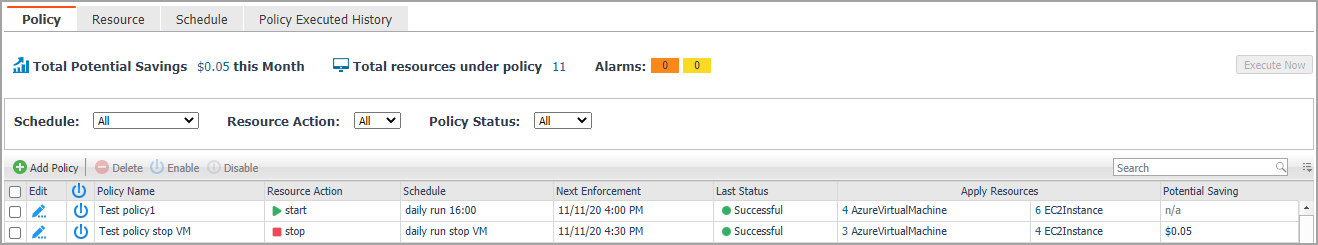

Figure 30. Policy Management tab

To access the Policy Management tab:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Cloud Manager.
The Cloud Manager dashboard opens.
4
Click Policy Management. The Policy Management tab opens on the bottom of Cloud Manager dashboard.
